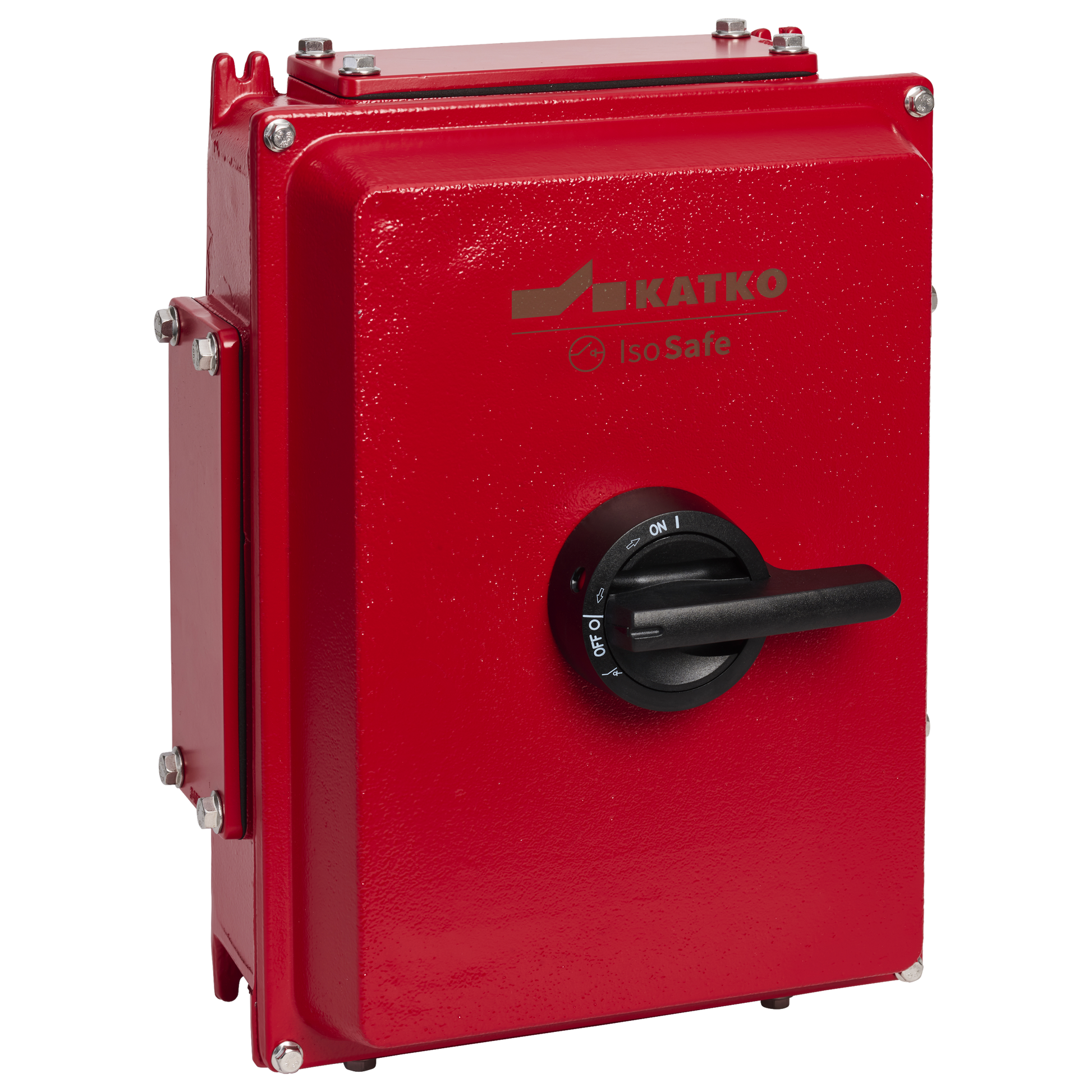

Isolating switch F200 3xA IP65

KEA 3125 FR A5

Isolating switch F200 3xA IP65

Katko firerated isolators (16-800A) are designed to maintain circuit integrity and isolation functionality even under fire exposure. They support safety-critical installations where continued performance during extreme conditions is required.

Built with durable materials and tested to meet relevant fire performance standards, they provide dependable isolation for public buildings, infrastructure, and industrial facilities.

GTIN
6419410305492
Enclosure type
Aluminium
Enclosure
A5 (300 x 400 x 170 mm)
Firerated
F200
Pokaż kompletne dane

Product details and documents

Technical data

Depth
170 mm
EMC
false
Enclosure
A5 (300 x 400 x 170 mm)
Enclosure type
Aluminium
ETIM Class
EC000216
Firerated
F200
GTIN
6419410305492
Height
400 mm
IP rating
IP65
Long product name
3-pole, Heat-resistant; F200 200°C/3h EN 12101-3, Aluminum enclosure; W300 x H400 x D170
Net weight
9.353 kg
Number of poles
3
Product type
KEA 3125 FR A5
Rated operational current AC-23B 415V (A)
100
Short product description
Isolating switch F200 3xA IP65
Switch type
Load Break Switch
Technical name
3x125A 400V 55kW
Volume
20.4 l
Width
300 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 depth
79.5 mm
Package size 1 GTIN code
6419410333402
Package size 1 height
158.5 mm
Package size 1 volume
1.3105 l
Package size 1 weight
1.0722 kg
Package size 1 width
104 mm
Sales unit
1

Downloadables

    No downloadable files available for this product.
