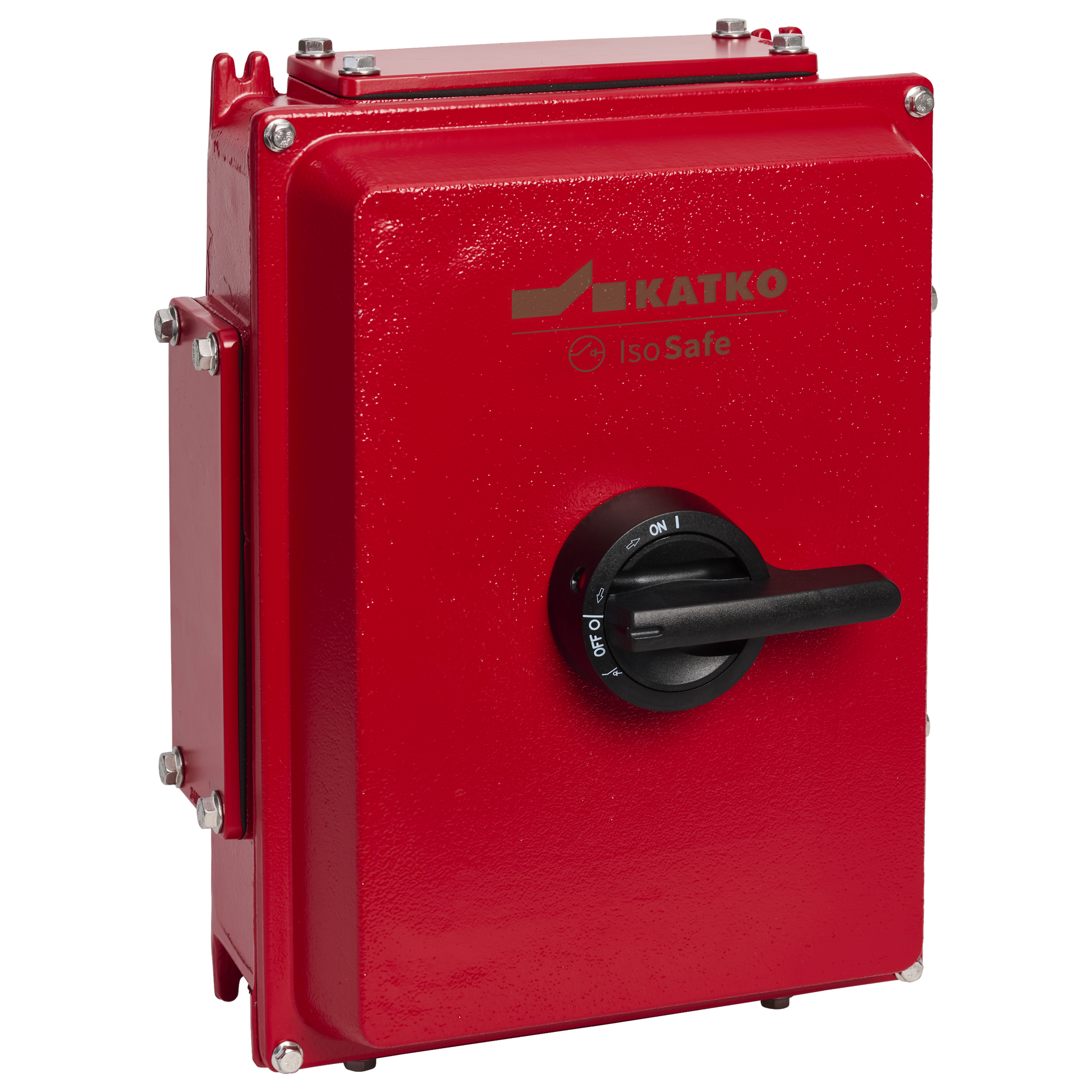

Katko firerated isolators (16-800A) are designed to maintain circuit integrity and isolation functionality even under fire exposure. They support safety-critical installations where continued performance during extreme conditions is required.
Built with durable materials and tested to meet relevant fire performance standards, they provide dependable isolation for public buildings, infrastructure, and industrial facilities.
E-number FI
GTIN
6419410239308
Rated operational current AC-23A 415V (A)
135
Enclosure type
Aluminium
Enclosure
A5 (300 x 400 x 170 mm)
Firerated
F200

Product details and documents
Technical data
Cable entries
2 x M40 (19,0-28,0 mm), metal
Depth
170 mm
EMC
false
Enclosure
A5 (300 x 400 x 170 mm)
Enclosure type
Aluminium
ETIM Class
EC000216
E-number FI
3600522
Firerated
F200
GTIN
6419410239308
Height
400 mm
IP rating
IP65
Long product name
3-pole, Heat-resistant; F200 200°C/3h EN 12101-3, Aluminum enclosure; W300 x H400 x D170, Cable entries: 2 x M40 (19,0-28,0 mm), metal
Net weight
9.5296 kg
Number of poles
3
Product type
KEA 3160 FR A5 2XM40M
Rated operational current AC-23A 415V (A)
135
Short product description

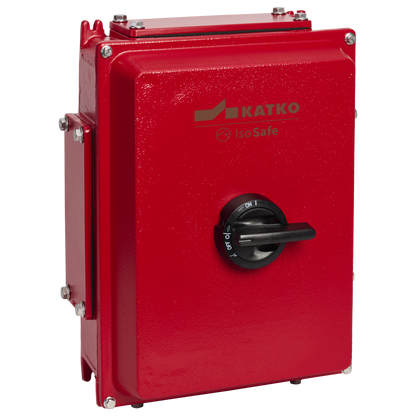

Isolating switch F200 3x135A IP65
Switch type
Load Break Switch
Technical name
3x160A 400V 90kW
Volume
20.4 l
Width
300 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
113 mm
Package size 1 GTIN code
6419410312049
Package size 1 height
258 mm
Package size 1 volume
3.4985 l
Package size 1 weight
1.9817 kg
Package size 1 width
120 mm
Sales unit
1
Downloadables
- Dimensional drawings media (83f3817b3dd802b8ab0fbfaf8d069fcbf15cc1b5_IsoSafe_A5_Dim.png)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
Related accessories
-
Auxiliary contact 1NO/1NC
Product typeVKAC1V -
Auxiliary contact 1NO/1NC
Product typeVKAC2V
