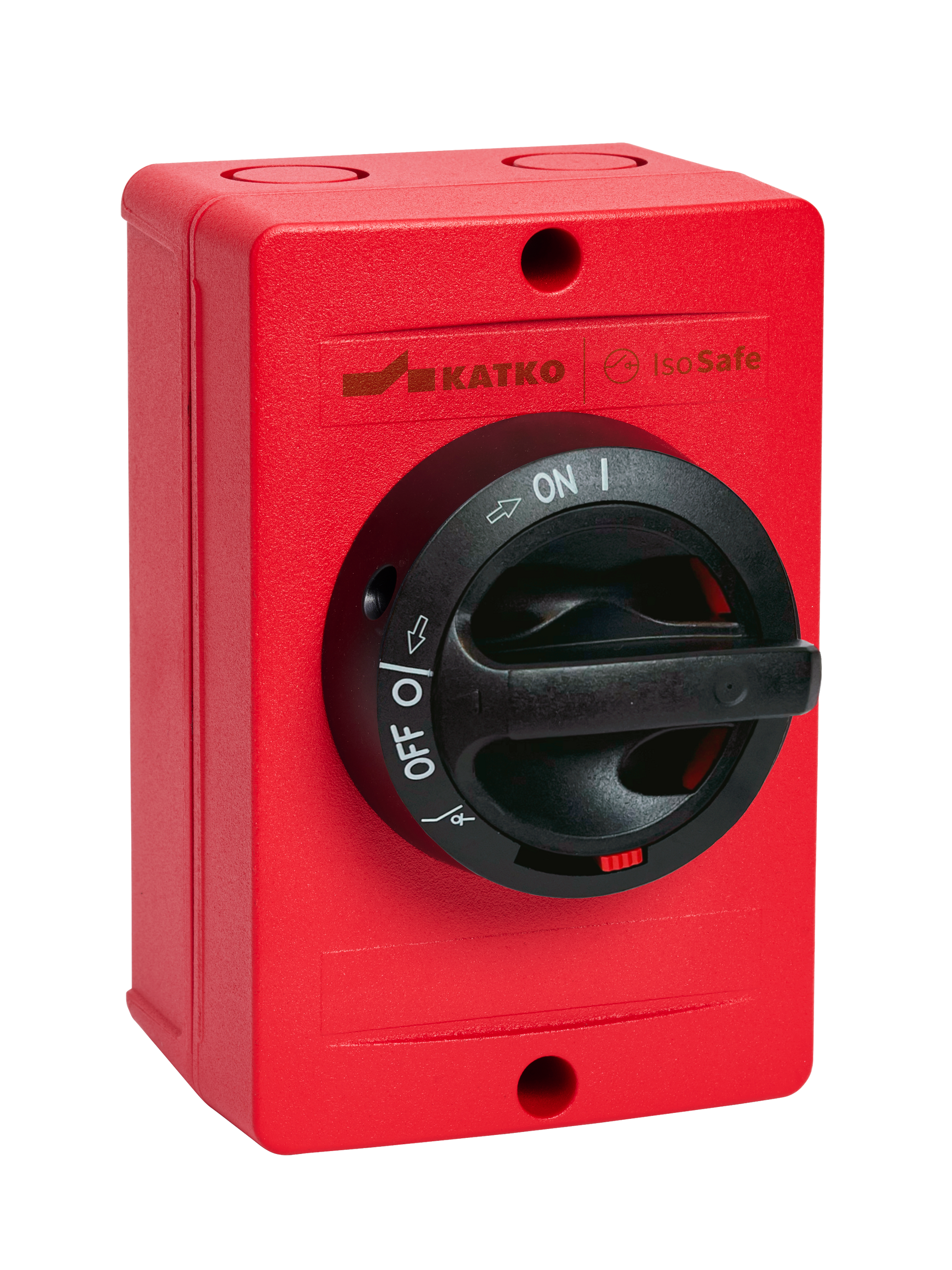

Isolating switch F200 3x40A IP66

- KEA 340 FR A2 2XM25M KST16M

Isolating switch F200 3x40A IP66

Katko firerated isolators (16-800A) are designed to maintain circuit integrity and isolation functionality even under fire exposure. They support safety-critical installations where continued performance during extreme conditions is required.

Built with durable materials and tested to meet relevant fire performance standards, they provide dependable isolation for public buildings, infrastructure, and industrial facilities.

E-number FI
3600397
GTIN
6419410201763
Rated operational current AC-23A 415V (A)
40
Enclosure type
Aluminium
Enclosure
A2 (104 x 159 x 80 mm)
Firerated
F200
Pokaż kompletne dane

Product details and documents

Technical data

Cable entries
2 x M25 (11,0-17,0 mm), metal; 1 x plug, metal
Depth
79.5 mm
EMC
false
Enclosure
A2 (104 x 159 x 80 mm)
Enclosure type
Aluminium
ETIM Class
EC000216
E-number FI
3600397
Firerated
F200
GTIN
6419410201763
Height
158.5 mm
IP rating
IP66
Long product name
3-pole, Heat-resistant; F200 200°C/3h EN 12101-3, Aluminum enclosure; W104 x H158.5 x D79.5, Cable entries: 2 x M25 (11,0-17,0 mm), metal; 1 x plug, metal
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Net weight
1.1265 kg
Nom. values w/cable size (mm²)
16
Number of poles
3
Product type
- KEA 340 FR A2 2XM25M KST16M
Rated breaking cap. ICN AC-23A 415V (A)
320
Rated breaking cap. ICN AC-23A 500V (A)
256
Rated breaking cap. ICN AC-23A 690V (A)
256
Rated fused short-ckt current back-up fuse opt 1 (A)
40
Rated fused short-ckt current peak value (kA)
6
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
63
Rated operational current AC-21A 500V (A)
63
Rated operational current AC-21A 690V (A)
63
Rated operational current AC-22A 415V (A)
40
Rated operational current AC-22A 500V (A)
40
Rated operational current AC-22A 690V (A)
40
Rated operational current AC-23A 415V (A)
40
Rated operational current AC-23A 500V (A)
32
Rated operational current AC-23A 690V (A)
32
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
22
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
22
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
30
Rated short-ckt. making cap. Icm 690V (kA)
2.5
Rated short-time withstand current 1s Icw 690V (kA)
1.7
Rated therm. current Ithe (A)
63
Rated therm. current Ith (A)
63
Short product description
Isolating switch F200 3x40A IP66
Switch type
Load Break Switch
Technical name
3x40A 400V 22kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.3105 l
Width
104 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
130 mm
Package size 1 GTIN code
6419410302453
Package size 1 height
380 mm
Package size 1 volume
13.832 l
Package size 1 weight
3.7232 kg
Package size 1 width
280 mm
Sales unit
1
