KEA 363 FR1V A4 2XM40M M16M

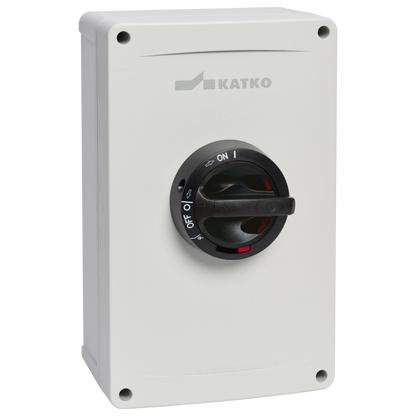

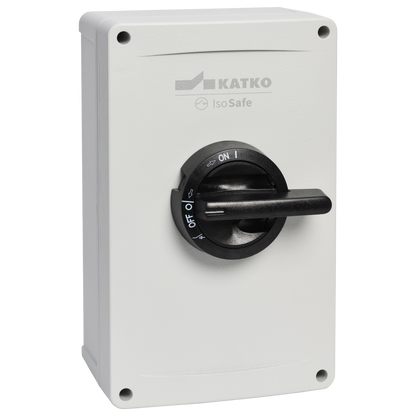

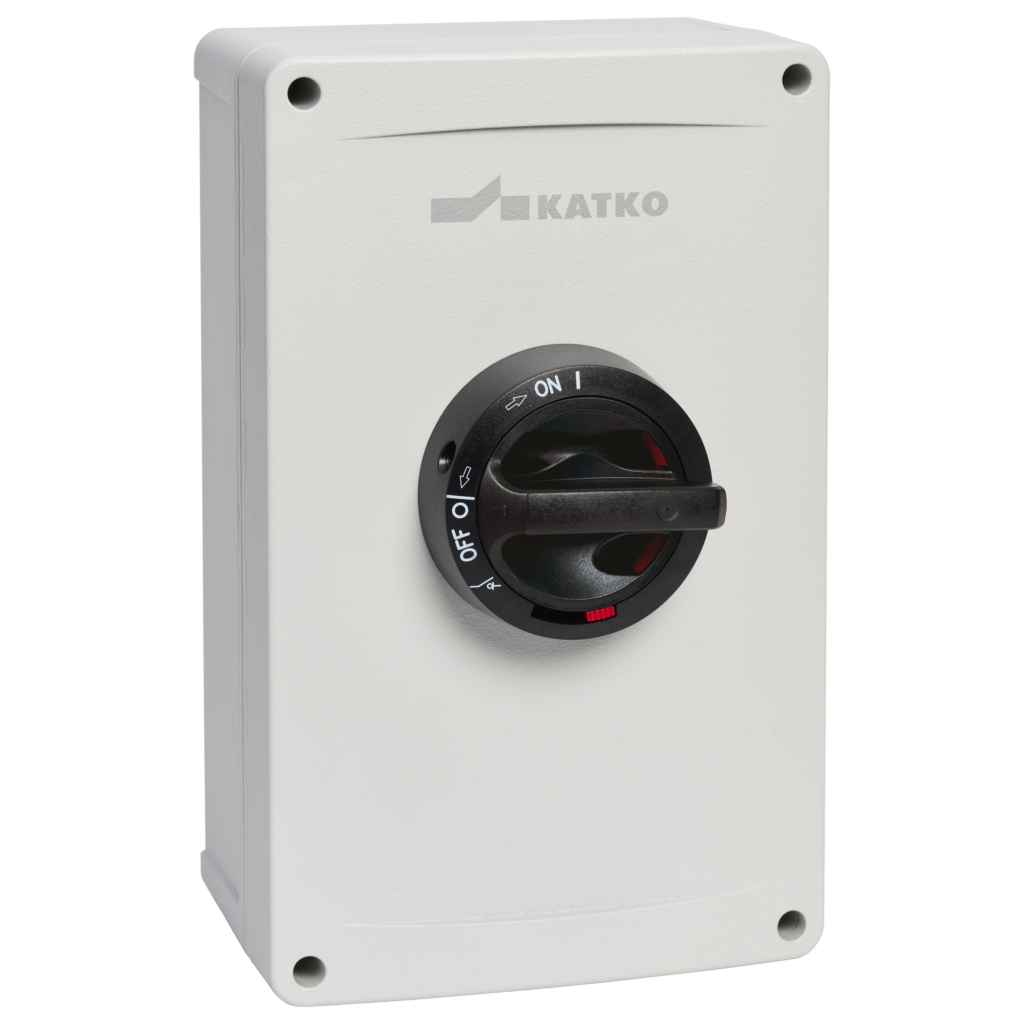

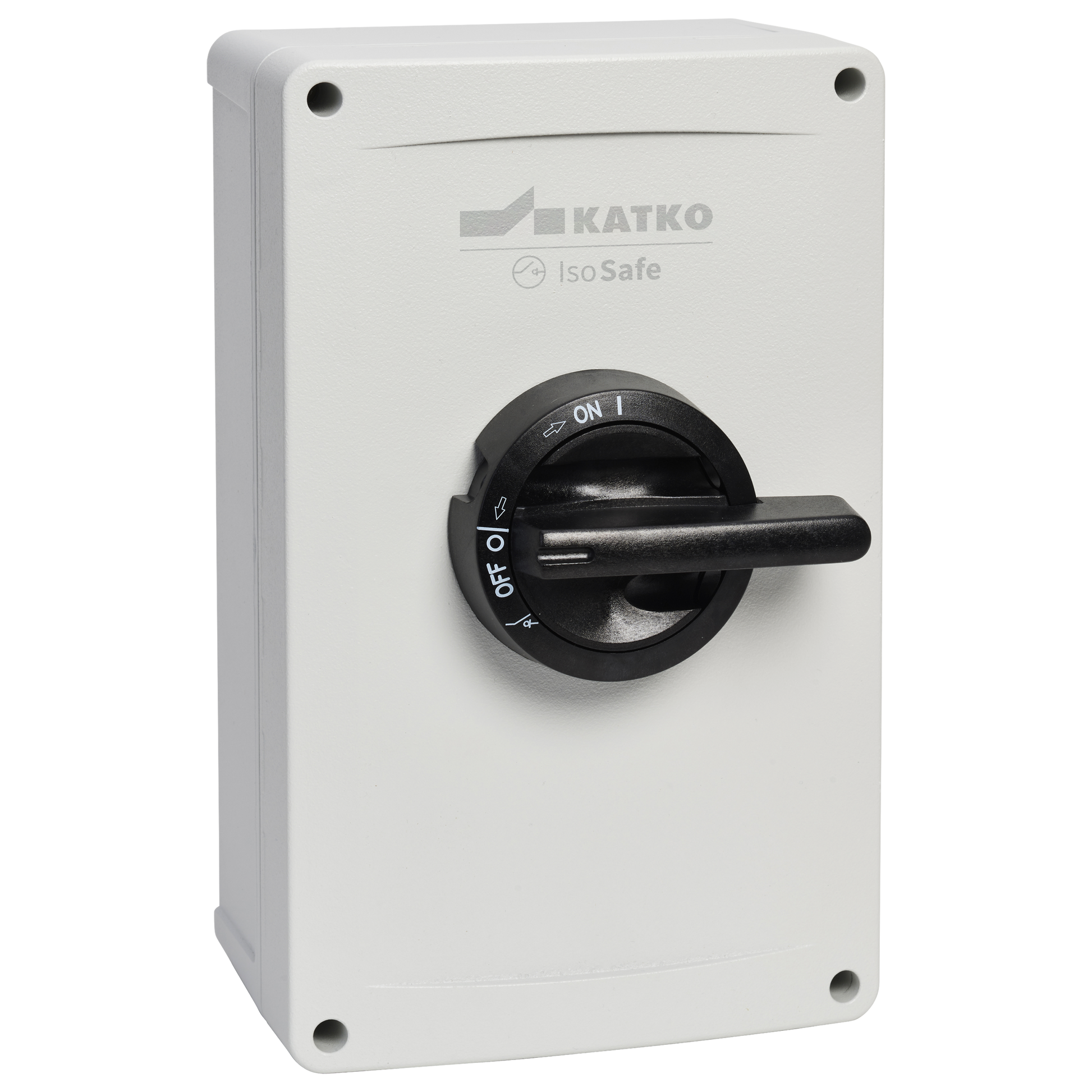

Isolating switch F200 3x40A IP66 1NO/1NC

KEA 363 FR1V A4 2XM40M M16M

Katko firerated isolators (16-800A) are designed to maintain circuit integrity and isolation functionality even under fire exposure. They support safety-critical installations where continued performance during extreme conditions is required.

Built with durable materials and tested to meet relevant fire performance standards, they provide dependable isolation for public buildings, infrastructure, and industrial facilities.

Numer produktu
20347
E-number FI
3609206
Rated operational current AC-23A 415V (A)
40
Enclosure type
Aluminium
Enclosure
A4 (162 x 262 x 108 mm)
Firerated
F200
Mounted auxiliary contacts
1NO/1NC
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

GTIN
6419410203477
Cable entries
2 x M40 (19,0-28,0 mm), metal; 1 x M16 (5,0-10,0 mm), metal
Depth
108 mm
EMC
false
Enclosure
A4 (162 x 262 x 108 mm)
Enclosure type
Aluminium
ETIM Class
EC000216
E-number FI
3609206
Firerated
F200
Height
262 mm
IP rating
IP66
Max. term. torque (Nm)
2.5
Mech. endurance (no. of oper.)
50000
Mounted auxiliary contacts
1NO/1NC
Net weight
3.0045 kg
Nom. values w/cable size (mm²)
25
Number of poles
3
Product type
KEA 363 FR1V A4 2XM40M M16M
Rated breaking cap. ICN AC-23A 415V (A)
320
Rated breaking cap. ICN AC-23A 500V (A)
320
Rated breaking cap. ICN AC-23A 690V (A)
320
Rated fused short-ckt current back-up fuse opt 1 (A)
80
Rated fused short-ckt current peak value (kA)
8.2
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
80
Rated operational current AC-21A 500V (A)
80
Rated operational current AC-21A 690V (A)
80
Rated operational current AC-22A 415V (A)
63
Rated operational current AC-22A 500V (A)
63
Rated operational current AC-22A 690V (A)
63
Rated operational current AC-23A 415V (A)
40
Rated operational current AC-23A 500V (A)
40
Rated operational current AC-23A 690V (A)
40
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
22
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
30
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
37
Rated short-ckt. making cap. Icm 690V (kA)
3.1
Rated short-time withstand current 1s Icw 690V (kA)
2
Rated therm. current Ithe (A)
80
Rated therm. current Ith (A)
80
Short product description
Isolating switch F200 3x40A IP66 1NO/1NC
Switch type
Load Break Switch
Technical name
3x40A 400V 22kW
Terminals bolt size (Cu mm²)
2.5..35
Volume
4.584 l
Width
162 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
108 mm
Package size 1 GTIN code
6419410203477
Package size 1 height
262 mm
Package size 1 volume
4.584 l
Package size 1 weight
3.0045 kg
Package size 1 width
162 mm
Sales unit
1
