Katko firerated isolators (16-800A) are designed to maintain circuit integrity and isolation functionality even under fire exposure. They support safety-critical installations where continued performance during extreme conditions is required.
Built with durable materials and tested to meet relevant fire performance standards, they provide dependable isolation for public buildings, infrastructure, and industrial facilities.
E-number FI
GTIN
Rated operational current AC-23A 415V (A)
Enclosure type
Enclosure
Firerated
Technical data
Cable entries
2 x M40 (19,0-28,0 mm), metal
Depth
170 mm
EMC
false
Enclosure
A5 (300 x 400 x 170 mm)
Enclosure type
Aluminium
ETIM Class
EC000216
E-number FI
3600557
Firerated
F200
GTIN
6419410239452
Height
400 mm
IP rating
IP65
Long product name
4-pole, Heat-resistant; F200 200°C/3h EN 12101-3, Aluminum enclosure; W300 x H400 x D170, Cable entries: 2 x M40 (19,0-28,0 mm), metal
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Net weight
9.554 kg
Nom. values w/cable size (mm²)
95
Number of poles
4
Product type
KEA 4200C FR A5 2XM40M
Rated breaking cap. ICN AC-23A 415V (A)
1600
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current peak value (kA)
22
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-23A 415V (A)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
110
Rated short-ckt. making cap. Icm 415V (kA)
11.4
Rated short-time withstand current 1s Icw 415V (kA)
6.5
Rated therm. current Ithe (A)
200
Rated therm. current Ith (A)
200
Short product description

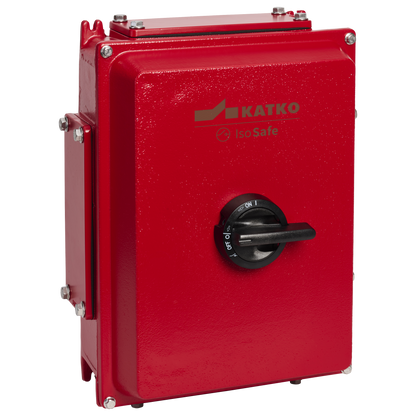

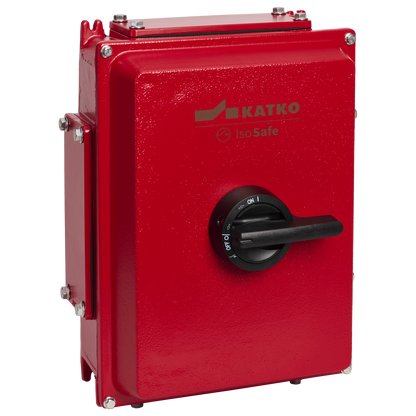

Isolating switch F200 4x200A IP65
Switch type
Load Break Switch
Technical name
4x200A 400V 110kW
Terminals bolt size (Cu mm²)
M8
Volume
20.4 l
Width
300 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
300 mm
Package size 1 GTIN code
6419410313039
Package size 1 height
1200 mm
Package size 1 volume
288 l
Package size 1 weight
73.5228 kg
Package size 1 width
800 mm
Sales unit
1
Downloadables
- Dimensional drawings media (83f3817b3dd802b8ab0fbfaf8d069fcbf15cc1b5_IsoSafe_A5_Dim.png)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
Related accessories
-
Auxiliary contact 1NO/1NC
Product typeVKAC1V -
Auxiliary contact 1NO/1NC
Product typeVKAC2V
