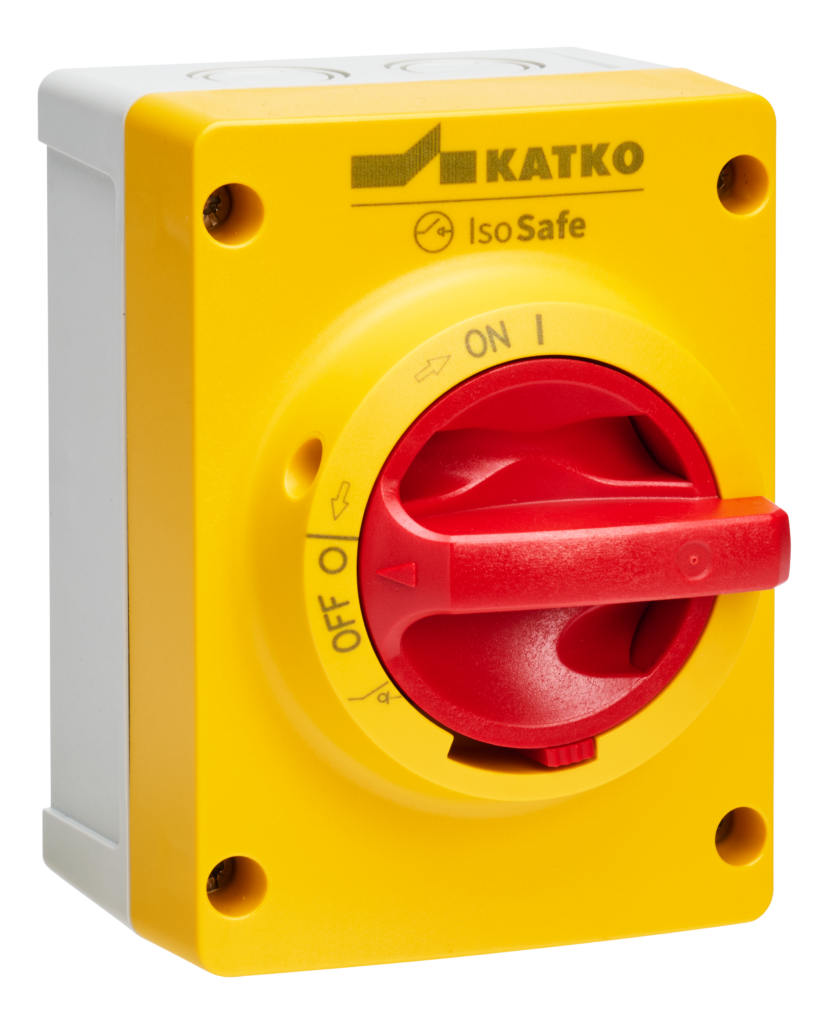

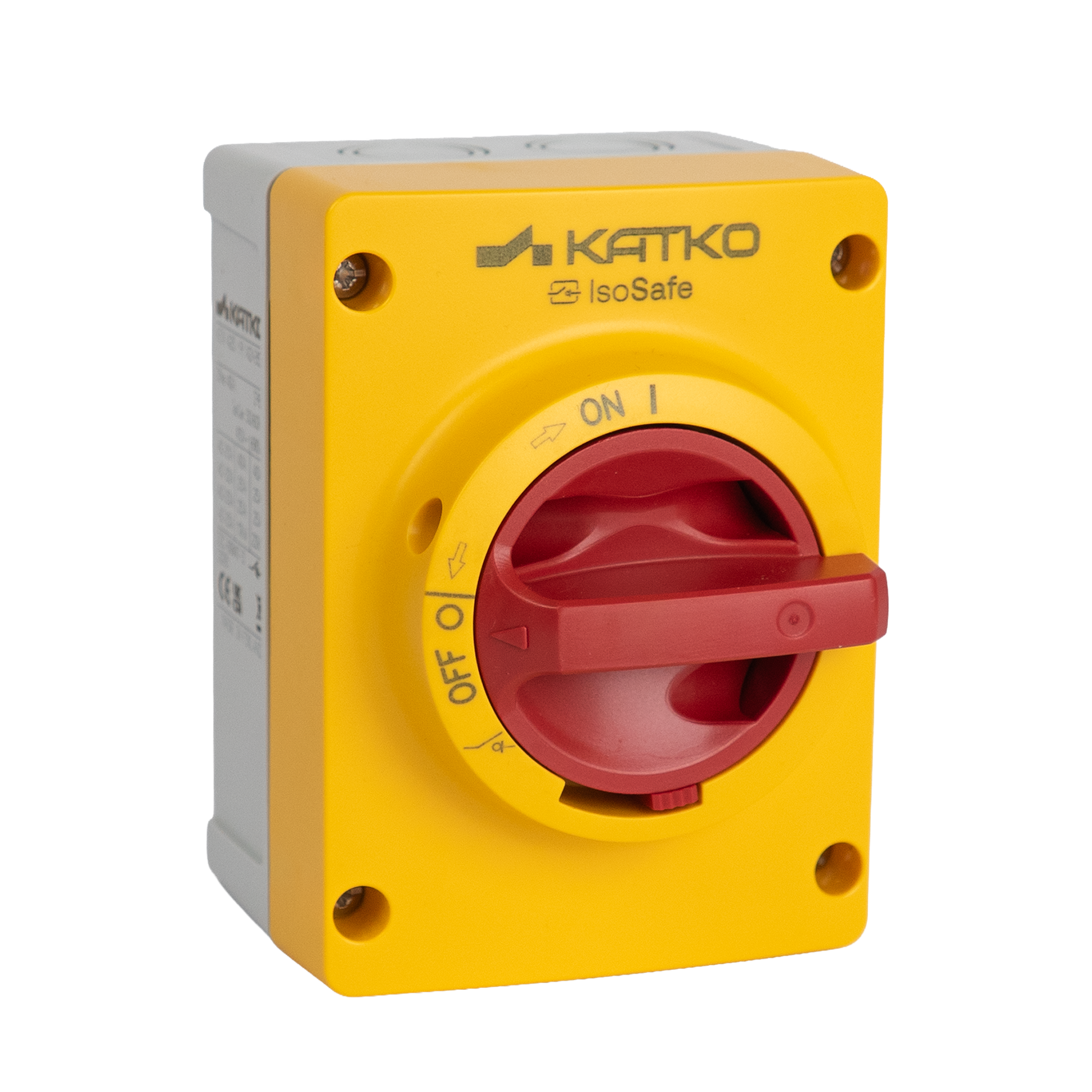

KEM 210 YR M2ABS

Isolating switch 2x10A IP66

KEM 210 YR M2ABS

Katko’s IsoSafe ABS enclosed isolators are designed for indoor applications where reliable isolation, safety and easy installation are essential. Suitable for a wide range of commercial and industrial environments, they deliver dependable performance in everyday use.

The durable ABS enclosure offers excellent insulation and good resistance to many chemicals, ensuring consistent operation in demanding indoor conditions. Manufactured using recycled ABS plastic, it supports a more sustainable choice without compromising performance. Advanced safety features, including a secure door interlocking defeat mechanism and a padlockable handle, support safe operation and maintenance.

Designed and manufactured in Finland, IsoSafe ABS isolators reflect Katko’s application-driven engineering and meet international standards, supporting safe and reliable electrical distribution.

GTIN
6419410276488
Rated operational current AC-23A 415V (A)
10
Enclosure type
ABS plastic
Enclosure
M2 (96 x 130 x 74 mm)

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Depth
104 mm
EMC
false
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
ABS plastic
ETIM Class
EC000216
GTIN
6419410276488
Height
130 mm
IP rating
IP66
Long product name
2-pole, Yellow-red handle, Polycarbonate enclosure; W96.4 x H130.4 x D106
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Nom. values w/cable size (mm²)
2.5
Number of poles
2
Product type
KEM 210 YR M2ABS
Rated breaking cap. ICN AC-23A 415V (A)
80
Rated fused short-ckt current back-up fuse opt 1 (A)
25
Rated fused short-ckt current peak value (kA)
3.8
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
20
Rated operational current AC-22A 415V (A)
10
Rated operational current AC-23A 240V (A)
10
Rated operational current AC-23A 415V (A)
10
Rated oper. power 1-ph 1500rpm SQ cage motor AC-23A 240V (kw)
2
Rated short-ckt. making cap. Icm 690V (kA)
1
Rated short-time withstand current 1s Icw 690V (kA)
0.7
Rated therm. current Ithe (A)
20
Rated therm. current Ith (A)
20
Short product description
Isolating switch 2x10A IP66
Switch type
Load Break Switch
Technical name
2x10A 400V 5.5kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.2979 l
Width
96 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
170 mm
Package size 1 GTIN code
6419410276488
Package size 1 height
400 mm
Package size 1 volume
20.4 l
Package size 1 width
300 mm
Sales unit
1
