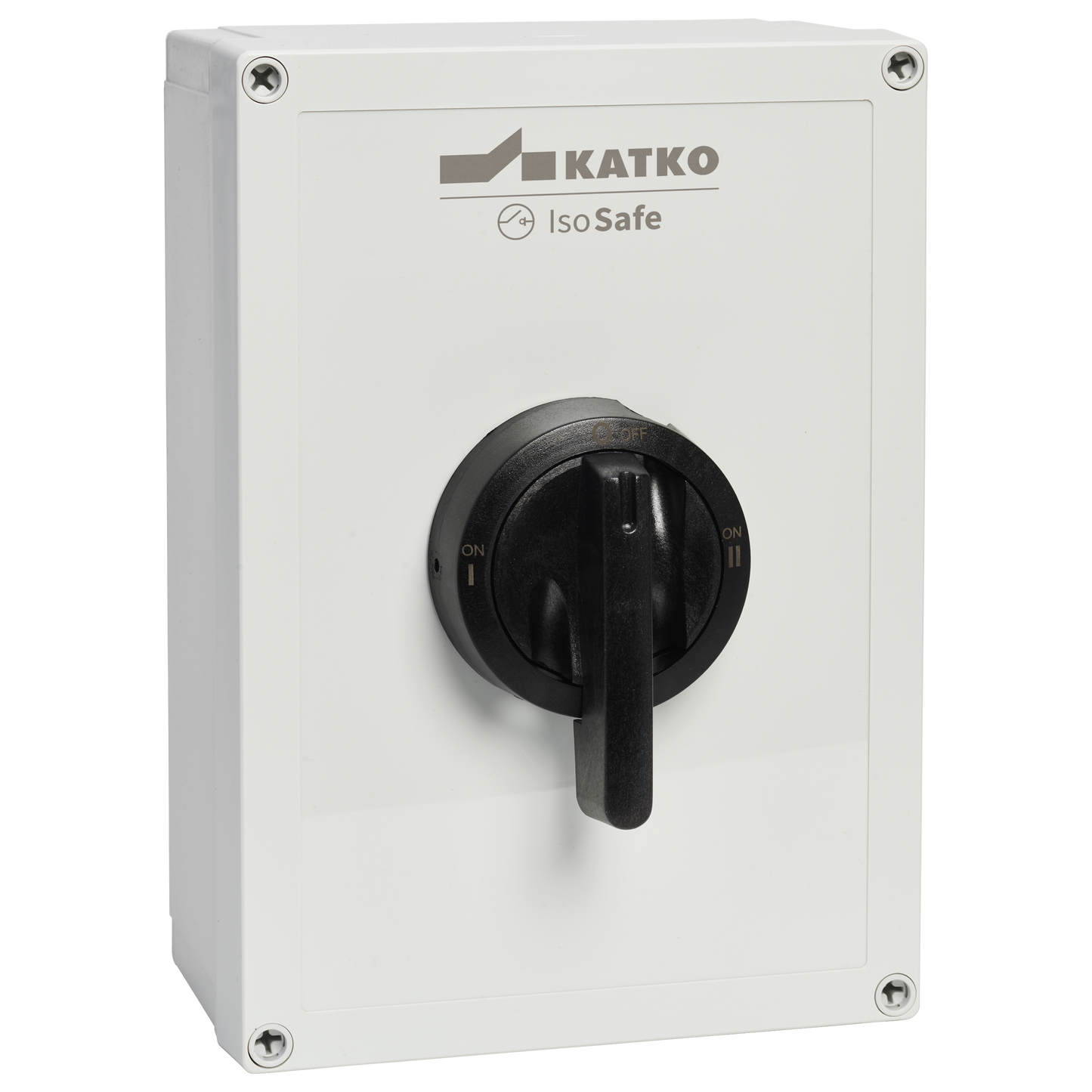

KEM 2125CVV M4

Change-over switch 2x63A IP66

KEM 2125CVV M4

Designed for safe and reliable power source switching, KATKO enclosed changeover switches (16-160A) ensure uninterrupted operation where continuity of supply is essential. They are engineered for clear operation and long-term durability.

Used in applications ranging from backup power systems to industrial installations, these switches provide dependable performance with straightforward installation and maintenance.

Numer produktu
32039
Rated operational current AC-23A 415V (A)
63
Enclosure type
Polycarbonate

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

GTIN
6419410320396
Depth
100 mm
EMC
false
Enclosure type
Polycarbonate
ETIM Class
EC000216
Height
270 mm
IP rating
IP66
item_relevance
5000
Max. term. torque (Nm)
2.5
Mech. endurance (no. of oper.)
50000
Net weight
1.71 kg
Nom. values w/cable size (mm²)
50
Number of poles
2
Product type
KEM 2125CVV M4
Rated breaking cap. ICN AC-23A 415V (A)
504
Rated breaking cap. ICN AC-23A 500V (A)
320
Rated breaking cap. ICN AC-23A 690V (A)
320
Rated fused short-ckt current back-up fuse opt 1 (A)
125
Rated fused short-ckt current peak value (kA)
10
Rated fused short-ckt current RMS Ik opt 1 (kA)
30
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
125
Rated operational current AC-21A 500V (A)
125
Rated operational current AC-21A 690V (A)
125
Rated operational current AC-22A 415V (A)
125
Rated operational current AC-22A 500V (A)
80
Rated operational current AC-22A 690V (A)
80
Rated operational current AC-23A 415V (A)
63
Rated operational current AC-23A 500V (A)
40
Rated operational current AC-23A 690V (A)
40
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
30
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
30
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
37
Rated short-ckt. making cap. Icm 690V (kA)
2.5
Rated short-time withstand current 1s Icw 690V (kA)
2
Rated therm. current Ithe (A)
125
Rated therm. current Ith (A)
125
Short product description
Change-over switch 2x63A IP66
Switch type
Load Break Switch
Technical name
2x63A 400V 30kW
Terminals bolt size (Cu mm²)
2.5..35
Volume
5.13 l
Width
190 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
100 mm
Package size 1 GTIN code
6419410320396
Package size 1 height
270 mm
Package size 1 volume
5.13 l
Package size 1 weight
1.71 kg
Package size 1 width
190 mm
Sales unit
1
