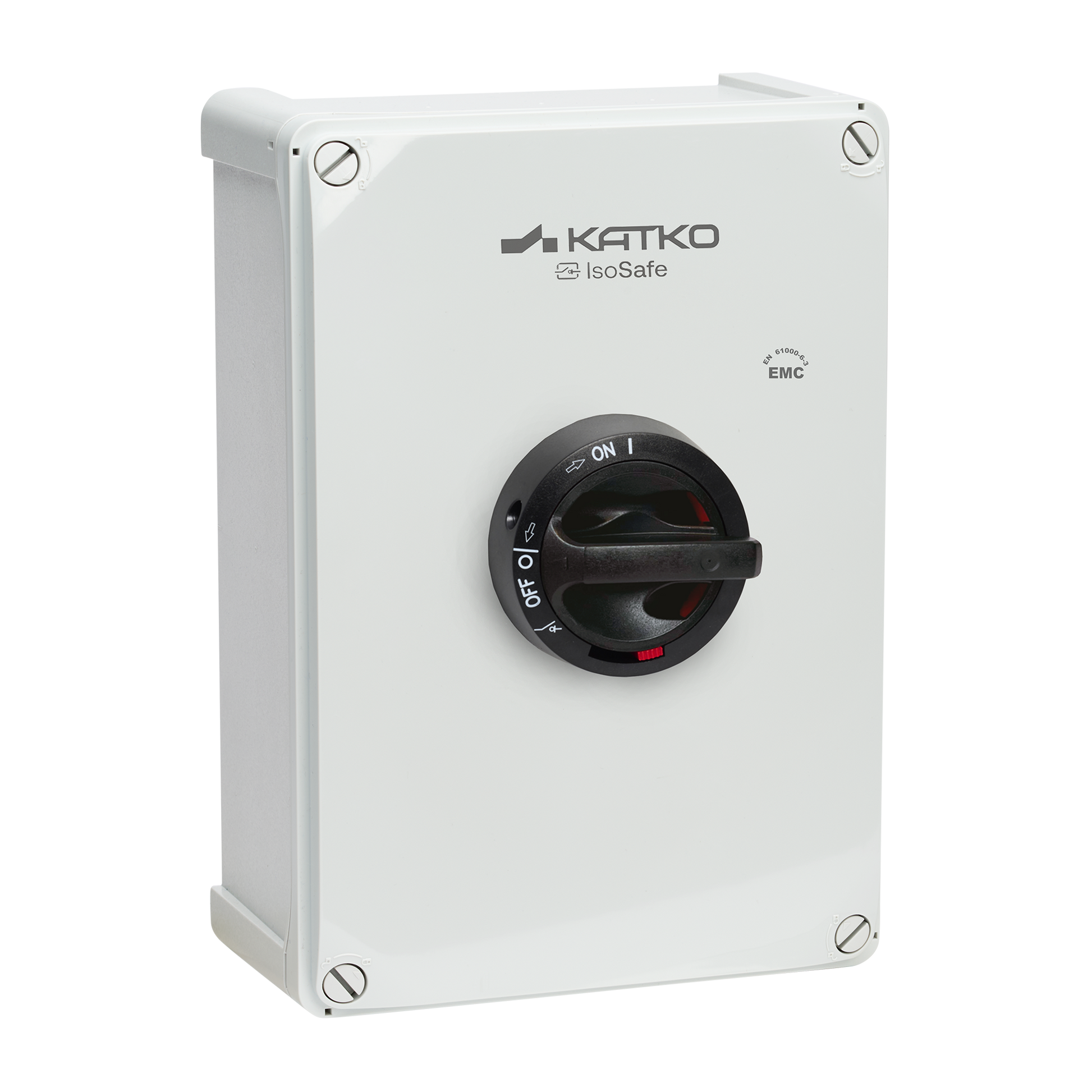

Isolating switch EMC 3x100A IP66

KEM 3100 M4EMC 2XM40MEMC

Isolating switch EMC 3x100A IP66

Katko EMC isolators (10-1600A) are engineered to ensure reliable isolation while maintaining electromagnetic compatibility in sensitive installations. They are designed to meet the requirements of environments where electrical interference must be carefully controlled.

By combining effective shielding with durable construction, EMC isolators support stable system performance in industrial, commercial, and infrastructure applications where EMC compliance is critical.

GTIN
6419410315484
Rated operational current AC-23A 415V (A)
100
Enclosure type
Polycarbonate
Enclosure
M4 (190 x 270 x 100 mm)
Pokaż kompletne dane

Product details and documents

Technical data

Cable entries
2 x M40 (19,0-28,0 mm), metal EMC
Depth
100 mm
EMC
true
Enclosure
M4 (190 x 270 x 100 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410315484
Height
270 mm
IP rating
IP66
Long product name
3-pole, Polycarbonate enclosure; W190 x H270 x D100,EMC shielded, Cable entries: 2 x M40 (19,0-28,0 mm), metal EMC
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
1.6511 kg
Nom. values w/cable size (mm²)
70
Number of poles
3
Product type
KEM 3100 M4EMC 2XM40MEMC
Rated breaking cap. ICN AC-23A 415V (A)
640
Rated breaking cap. ICN AC-23A 500V (A)
504
Rated breaking cap. ICN AC-23A 690V (A)
504
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
125
Rated operational current AC-21A 500V (A)
125
Rated operational current AC-21A 690V (A)
125
Rated operational current AC-22A 415V (A)
100
Rated operational current AC-22A 500V (A)
100
Rated operational current AC-22A 690V (A)
100
Rated operational current AC-23A 415V (A)
100
Rated operational current AC-23A 500V (A)
63
Rated operational current AC-23A 690V (A)
63
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
37
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
55
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ithe (A)
125
Rated therm. current Ith (A)
125
Short product description
Isolating switch EMC 3x100A IP66
Switch type
Load Break Switch
Technical name
3x100A 400V 55kW
Terminals bolt size (Cu mm²)
6..70
Volume
5.13 l
Width
190 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 depth
106 mm
Package size 1 GTIN code
6419410270585
Package size 1 height
130.4 mm
Package size 1 volume
1.3325 l
Package size 1 weight
0.3627 kg
Package size 1 width
96.4 mm
Sales unit
1

Downloadables

    No downloadable files available for this product.
