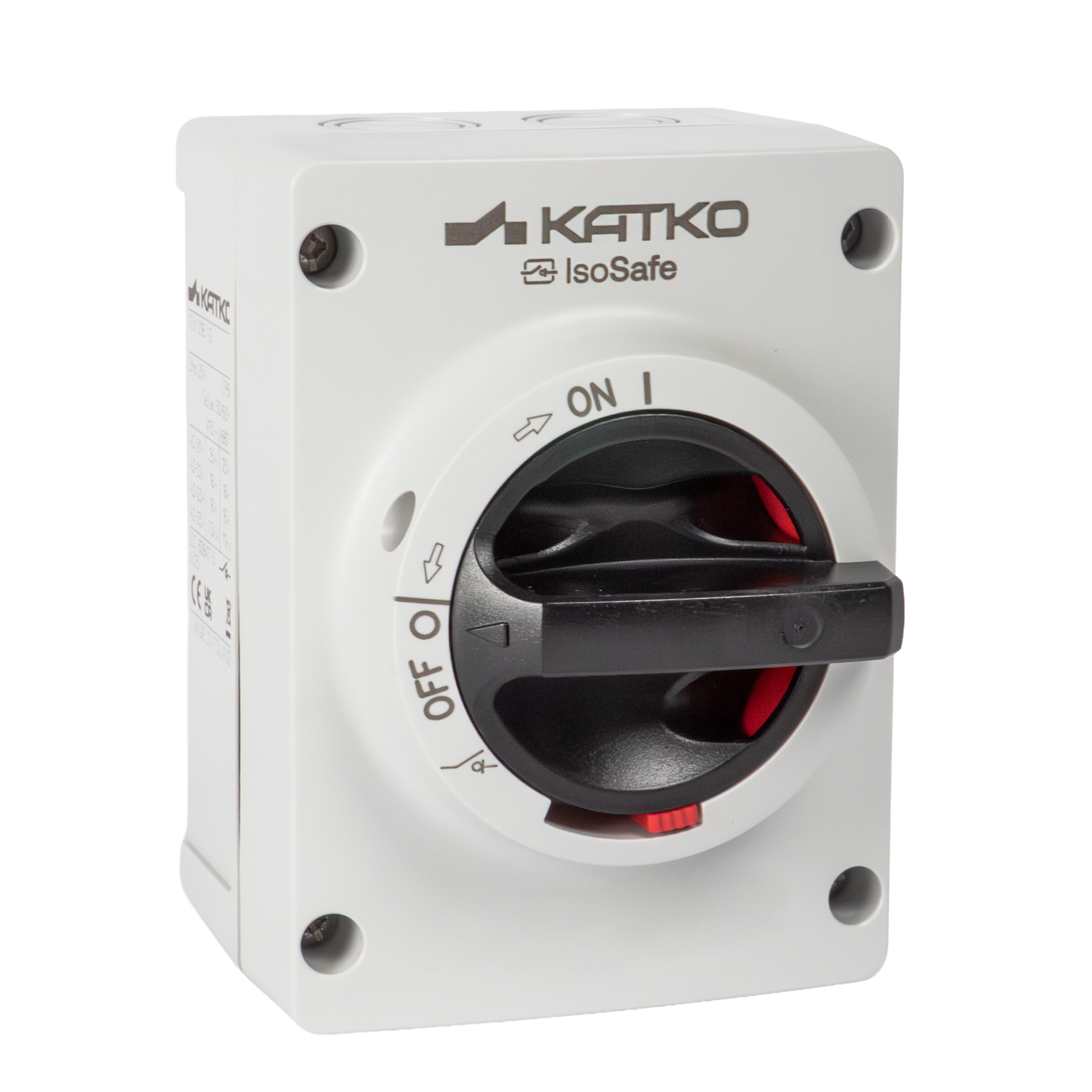

Katko EMC isolators (10-1600A) are engineered to ensure reliable isolation while maintaining electromagnetic compatibility in sensitive installations. They are designed to meet the requirements of environments where electrical interference must be carefully controlled.
By combining effective shielding with durable construction, EMC isolators support stable system performance in industrial, commercial, and infrastructure applications where EMC compliance is critical.
Numer produktu
E-number FI
Rated operational current AC-23A 415V (A)
Enclosure type
Enclosure
Technical data
GTIN
6419410296868
Cable entries
2 x M25 (11,0-17,0 mm), metal EMC
Cover label
turvakytkin
Depth
104 mm
EMC
true
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
E-number FI
3662121
Height
130 mm
IP rating
IP66
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Net weight
0.5422 kg
Nom. values w/cable size (mm²)
4
Number of poles
3
Product type

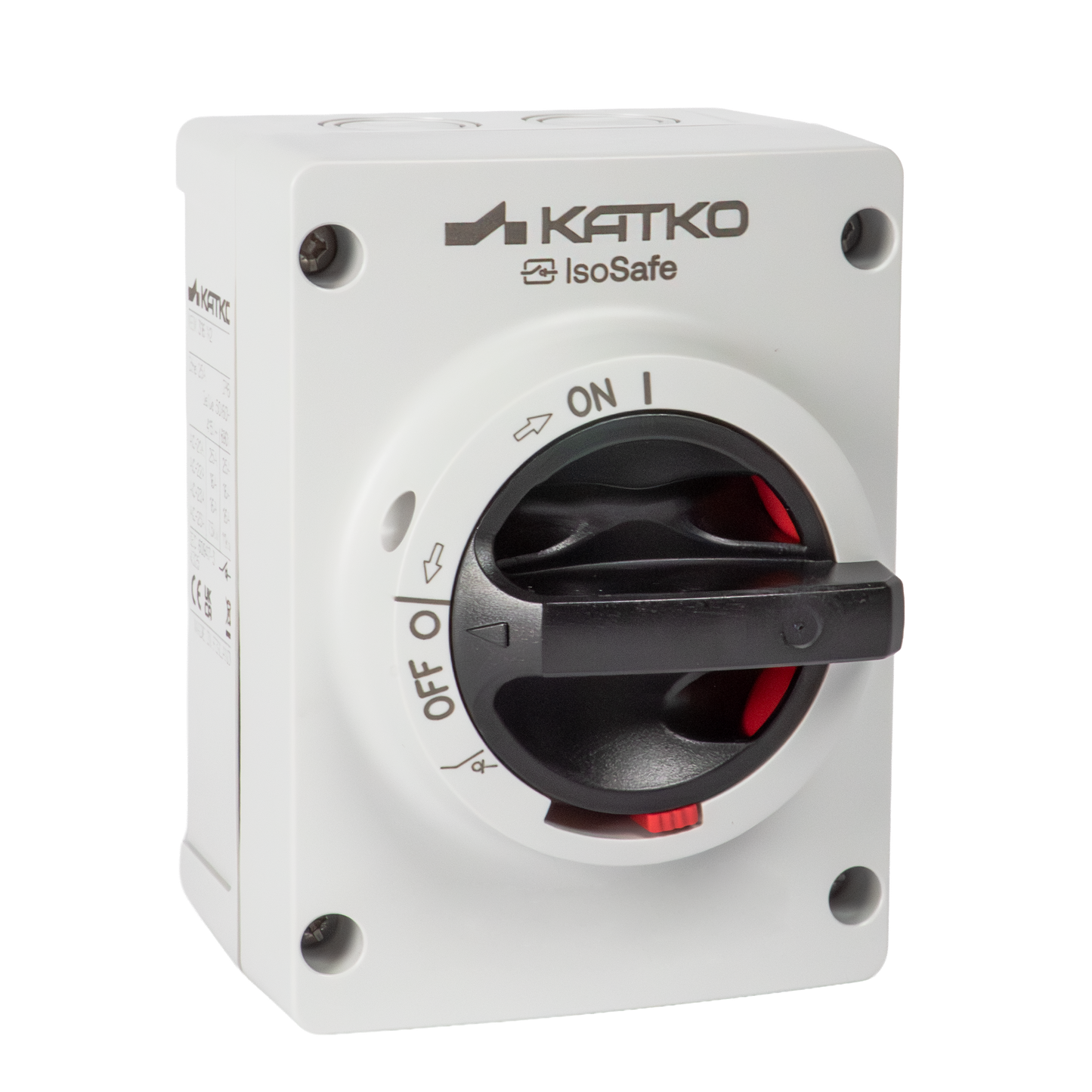

KEM 316 M2EMC 2XM25MEMC FI
Rated breaking cap. ICN AC-23A 415V (A)
128
Rated breaking cap. ICN AC-23A 500V (A)
128
Rated breaking cap. ICN AC-23A 690V (A)
128
Rated fused short-ckt current back-up fuse opt 1 (A)
25
Rated fused short-ckt current peak value (kA)
3.8
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
25
Rated operational current AC-21A 500V (A)
25
Rated operational current AC-21A 690V (A)
25
Rated operational current AC-22A 415V (A)
16
Rated operational current AC-22A 500V (A)
16
Rated operational current AC-22A 690V (A)
16
Rated operational current AC-23A 415V (A)
16
Rated operational current AC-23A 500V (A)
16
Rated operational current AC-23A 690V (A)
16
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
7.5
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
7.5
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
11
Rated short-ckt. making cap. Icm 690V (kA)
1
Rated short-time withstand current 1s Icw 690V (kA)
0.7
Rated therm. current Ithe (A)
25
Rated therm. current Ith (A)
25
Short product description
Isolating switch EMC 3x16A IP66
Switch type
Load Break Switch
Technical name
3x16A 400V 7.5kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.2979 l
Width
96 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
104 mm
Package size 1 GTIN code
6419410296868
Package size 1 height
130 mm
Package size 1 volume
1.2979 l
Package size 1 weight
0.5422 kg
Package size 1 width
96 mm
Sales unit
1
