KEM 316NO M3EMC 2XM25MEMC M16P FI

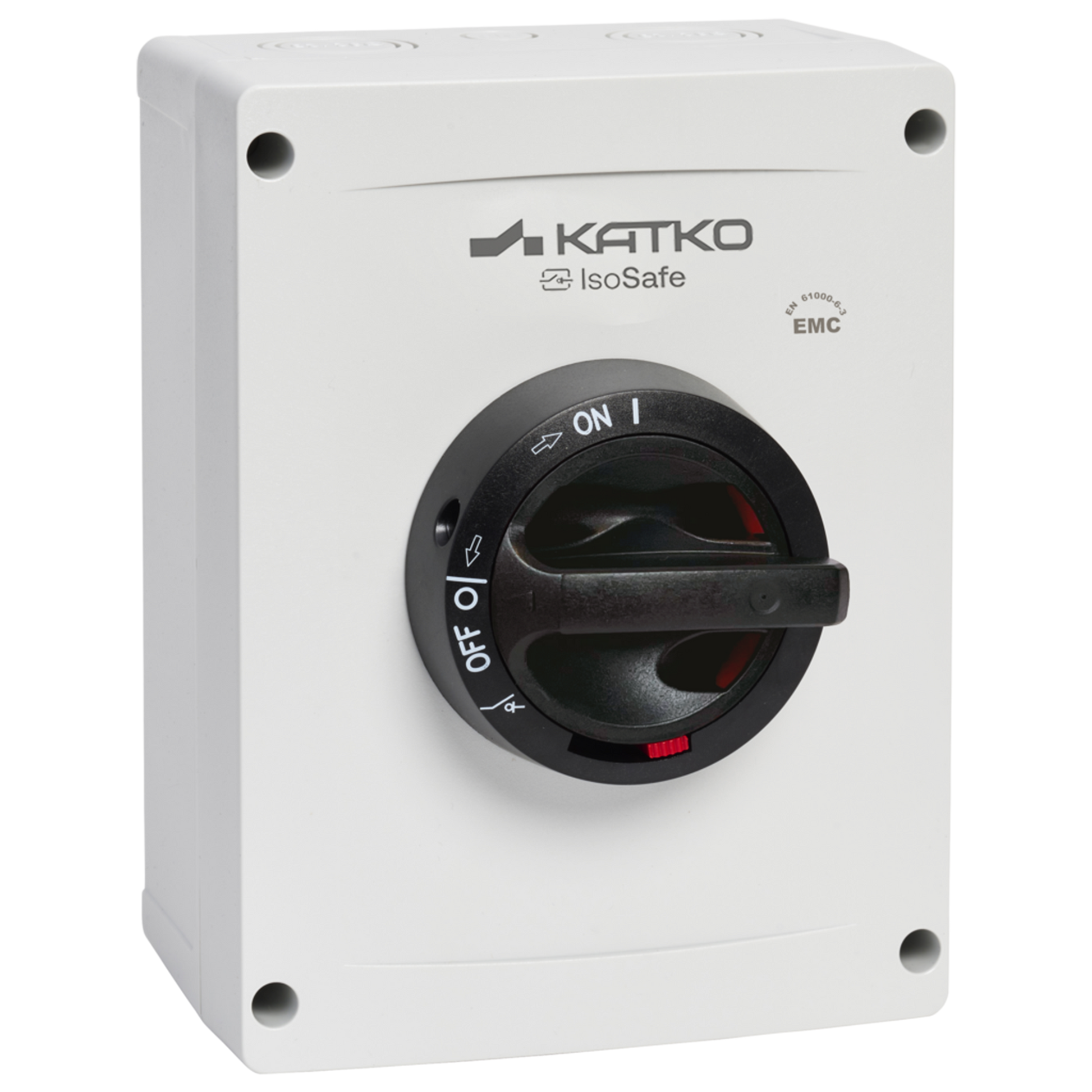

Isolating switch EMC 3x16A IP66 1NO

KEM 316NO M3EMC 2XM25MEMC M16P FI

Katko EMC isolators (10-1600A) are engineered to ensure reliable isolation while maintaining electromagnetic compatibility in sensitive installations. They are designed to meet the requirements of environments where electrical interference must be carefully controlled.

By combining effective shielding with durable construction, EMC isolators support stable system performance in industrial, commercial, and infrastructure applications where EMC compliance is critical.

Numer produktu
30669
E-number FI
3662125
Rated operational current AC-23A 415V (A)
16
Enclosure type
Polycarbonate
Enclosure
M3 (144 x 190 x 96 mm)
Mounted auxiliary contacts
1NO
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

GTIN
6419410306697
Cable entries
2 x M25 (11,0-17,0 mm), metal EMC; 1 x M16 (5,0-10,0 mm), plastic
Cover label
turvakytkin
Depth
96 mm
EMC
true
Enclosure
M3 (144 x 190 x 96 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
E-number FI
3662125
Height
190 mm
IP rating
IP66
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Mounted auxiliary contacts
1NO
Net weight
0.9332 kg
Nom. values w/cable size (mm²)
4
Number of poles
3
Product type
KEM 316NO M3EMC 2XM25MEMC M16P FI
Rated breaking cap. ICN AC-23A 415V (A)
128
Rated breaking cap. ICN AC-23A 500V (A)
128
Rated breaking cap. ICN AC-23A 690V (A)
128
Rated fused short-ckt current back-up fuse opt 1 (A)
25
Rated fused short-ckt current peak value (kA)
3.8
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
25
Rated operational current AC-21A 500V (A)
25
Rated operational current AC-21A 690V (A)
25
Rated operational current AC-22A 415V (A)
16
Rated operational current AC-22A 500V (A)
16
Rated operational current AC-22A 690V (A)
16
Rated operational current AC-23A 415V (A)
16
Rated operational current AC-23A 500V (A)
16
Rated operational current AC-23A 690V (A)
16
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
7.5
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
7.5
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
11
Rated short-ckt. making cap. Icm 690V (kA)
1
Rated short-time withstand current 1s Icw 690V (kA)
0.7
Rated therm. current Ithe (A)
25
Rated therm. current Ith (A)
25
Short product description
Isolating switch EMC 3x16A IP66 1NO
Switch type
Load Break Switch
Technical name
3x16A 400V 7.5kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
2.6266 l
Width
144 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
96 mm
Package size 1 GTIN code
6419410306697
Package size 1 height
190 mm
Package size 1 volume
2.6266 l
Package size 1 weight
0.9332 kg
Package size 1 width
144 mm
Sales unit
1
