Katko EMC isolators (10-1600A) are engineered to ensure reliable isolation while maintaining electromagnetic compatibility in sensitive installations. They are designed to meet the requirements of environments where electrical interference must be carefully controlled.
By combining effective shielding with durable construction, EMC isolators support stable system performance in industrial, commercial, and infrastructure applications where EMC compliance is critical.
Technical data
Cable entries
2 x M32 (15,0-21,0 mm), metal EMC
Cover label
turvakytkin
Depth
96 mm
EMC
true
Enclosure
M3 (144 x 190 x 96 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
E-number FI
3662144
GTIN
6419410297087
Height
190 mm
IP rating
IP66
Long product name

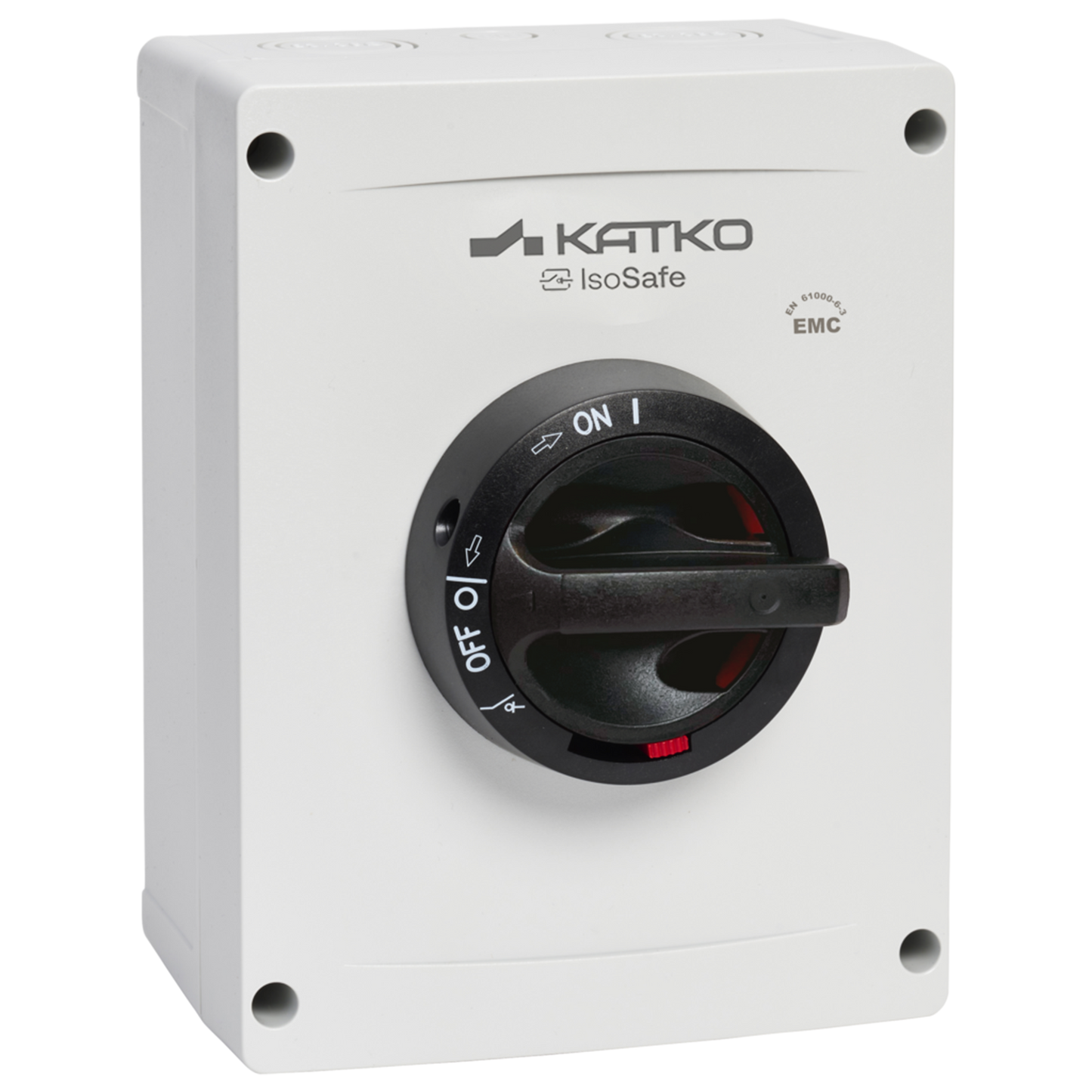

3-pole, Polycarbonate enclosure; W144 x H190 x D96,EMC shielded, Cable entries: 2 x M32 (15,0-21,0 mm), metal EMC
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Net weight
1.1059 kg
Nom. values w/cable size (mm²)
10
Number of poles
3
Product type
KEM 332 M3EMC 2XM32MEMC FI
Rated breaking cap. ICN AC-23A 415V (A)
256
Rated breaking cap. ICN AC-23A 500V (A)
200
Rated breaking cap. ICN AC-23A 690V (A)
200
Rated fused short-ckt current back-up fuse opt 1 (A)
40
Rated fused short-ckt current peak value (kA)
4.5
Rated fused short-ckt current RMS Ik opt 1 (kA)
25
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-21A 500V (A)
40
Rated operational current AC-21A 690V (A)
40
Rated operational current AC-22A 415V (A)
32
Rated operational current AC-22A 500V (A)
32
Rated operational current AC-22A 690V (A)
32
Rated operational current AC-23A 415V (A)
32
Rated operational current AC-23A 500V (A)
25
Rated operational current AC-23A 690V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
22
Rated short-ckt. making cap. Icm 690V (kA)
1
Rated short-time withstand current 1s Icw 690V (kA)
0.7
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Isolating switch EMC 3x32A IP66
Switch type
KU 340 / KU 440
Technical name
3x32A 400V 15kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
2.6266 l
Width
144 mm
Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
250 mm
Package size 1 GTIN code
6419410297087
Package size 1 height
800 mm
Package size 1 volume
120 l
Package size 1 weight
1.1059 kg
Package size 1 width
600 mm
Sales unit
1
