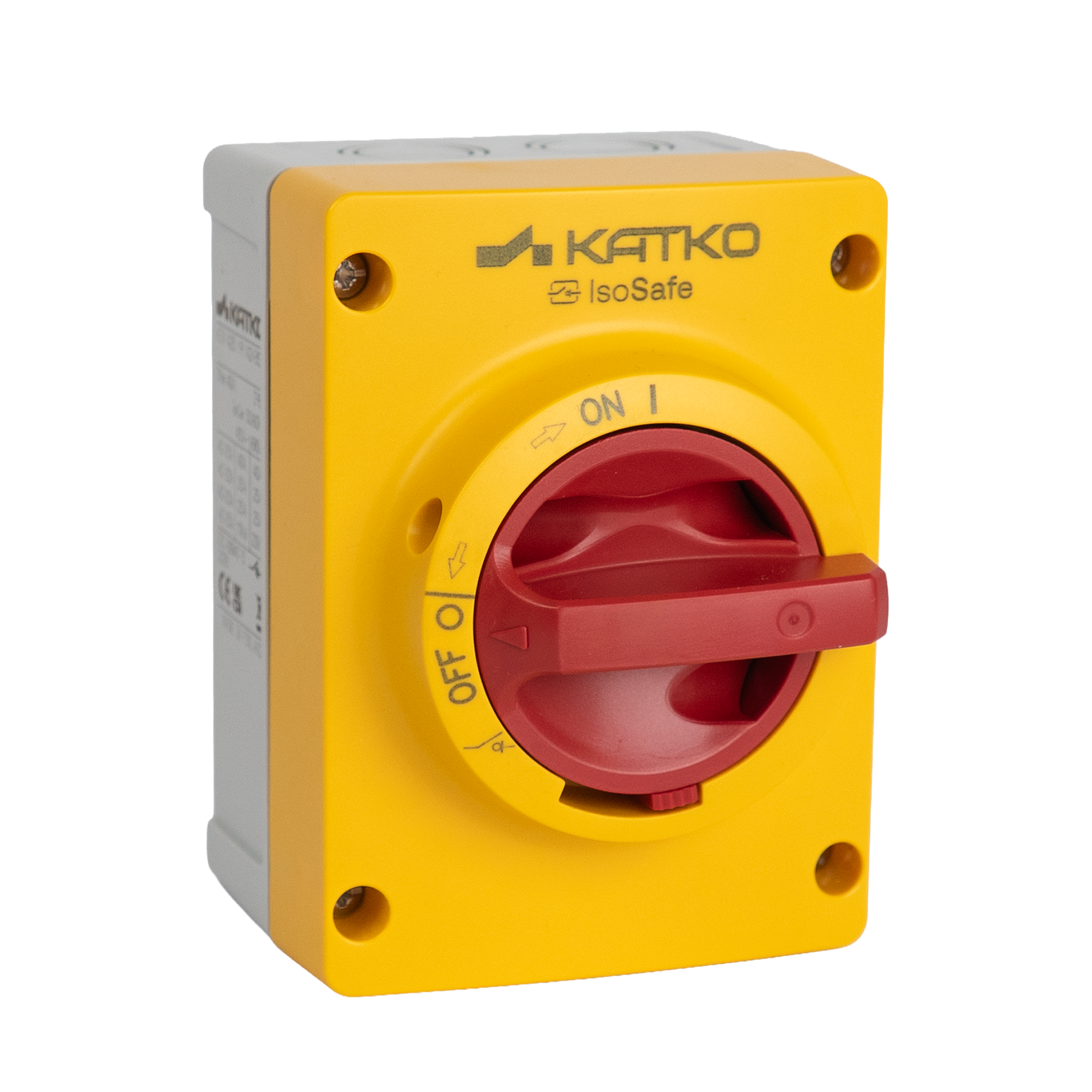

Isolating switch 4x16A IP66

KEM 416 YR M2ABS

Isolating switch 4x16A IP66

Katko IsoSafe polycarbonate enclosed safety switches are designed for real-world applications where safety and reliability are essential, from demanding industrial environments to ordinary buildings. The durable polycarbonate enclosure provides high protection and excellent insulation while resisting UV radiation and many chemicals, ensuring reliable performance both indoors and outdoors.

Advanced safety features, including self-extinguishing materials, secure door interlocking defeat mechanisms and a padlockable handle, support safe operation and maintenance. Designed and manufactured in Finland, IsoSafe switches reflect decades of application-driven engineering and are trusted in installations where dependable electrical distribution is critical.

GTIN
6419410277195
Rated operational current AC-23A 415V (A)
16
Enclosure type
ABS plastic
Enclosure
M2 (96 x 130 x 74 mm)
Pokaż kompletne dane

Product details and documents

Technical data

Depth
106 mm
EMC
false
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
ABS plastic
ETIM Class
EC000216
GTIN
6419410277195
Height
130.4 mm
IP rating
IP66
Long product name
4-pole, Yellow-red handle, Polycarbonate enclosure; W96.4 x H130.4 x D106
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Net weight
0.3437 kg
Nom. values w/cable size (mm²)
4
Number of poles
4
Product type
KEM 416 YR M2ABS
Rated breaking cap. ICN AC-23A 415V (A)
128
Rated breaking cap. ICN AC-23A 500V (A)
128
Rated breaking cap. ICN AC-23A 690V (A)
128
Rated fused short-ckt current back-up fuse opt 1 (A)
25
Rated fused short-ckt current peak value (kA)
3.8
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
25
Rated operational current AC-21A 500V (A)
25
Rated operational current AC-21A 690V (A)
25
Rated operational current AC-22A 415V (A)
16
Rated operational current AC-22A 500V (A)
16
Rated operational current AC-22A 690V (A)
16
Rated operational current AC-23A 415V (A)
16
Rated operational current AC-23A 500V (A)
16
Rated operational current AC-23A 690V (A)
16
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
7.5
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
7.5
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
11
Rated short-ckt. making cap. Icm 690V (kA)
1
Rated short-time withstand current 1s Icw 690V (kA)
0.7
Rated therm. current Ithe (A)
25
Rated therm. current Ith (A)
25
Short product description
Isolating switch 4x16A IP66
Switch type
Load Break Switch
Technical name
4x16A 400V 7.5kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.3325 l
Width
96.4 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 depth
250 mm
Package size 1 GTIN code
6419410264232
Package size 1 height
800 mm
Package size 1 volume
120 l
Package size 1 weight
31.3244 kg
Package size 1 width
600 mm
Sales unit
1
