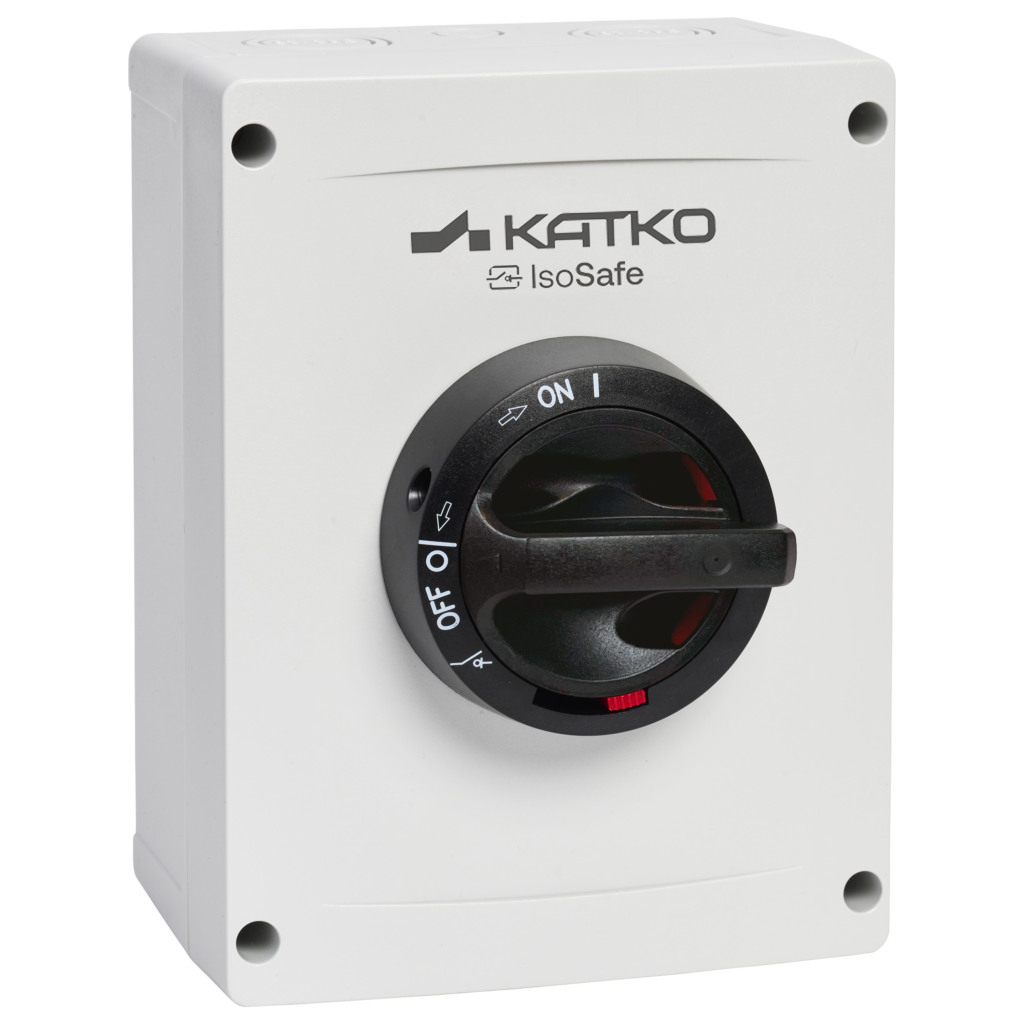

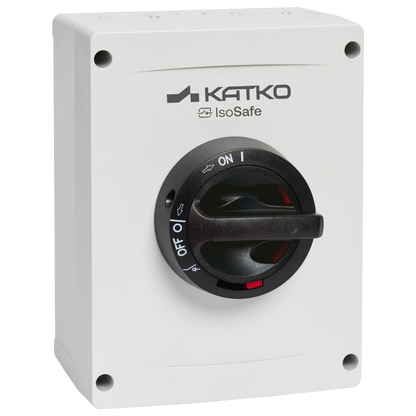

Manual motor controller 6x25A

- KEM 625UL M3

Manual motor controller 6x25A

Katko UL/cUL listed polycarbonate enclosed disconnect switches are designed for demanding industrial and commercial applications where safety, compliance and reliable disconnection are essential. Featuring a Type 4X polycarbonate enclosure, they provide excellent corrosion resistance, electrical insulation and UV stability, ensuring dependable operation in both indoor and outdoor environments.

The switches support across-the-line motor starting up to 75 HP at 600 V and are suitable for a wide range of motor and load disconnect applications. Certified according to UL and CSA requirements and compliant with UL 60947-4-1A, they meet the expectations of North American installations where performance and regulatory compliance are critical.

GTIN
6419410351260
Ampere rating 600V
25
Enclosure type
Polycarbonate
Enclosure
M3 (144 x 190 x 96 mm)
Pokaż kompletne dane

Product details and documents

Technical data

Ampere rating 600V
25.0
Depth
96 mm
EMC
false
Enclosure
M3 (144 x 190 x 96 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410351260
Height
190 mm
HP 208V
5.0
HP 415V
7.5
HP 480V
15.0
HP 600V
10.0
IP rating
IP66
Long product name
UL-listed, 6-pole, Polycarbonate enclosure; W144 x H190 x D96
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Net weight
0.7729 kg
Nom. values w/cable size (mm²)
10
Number of poles
6
Product type
- KEM 625UL M3
Rated breaking cap. ICN AC-23A 415V (A)
200
Rated breaking cap. ICN AC-23A 500V (A)
200
Rated breaking cap. ICN AC-23A 690V (A)
200
Rated fused short-ckt current back-up fuse opt 1 (A)
40
Rated fused short-ckt current peak value (kA)
6
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-21A 500V (A)
40
Rated operational current AC-21A 690V (A)
40
Rated operational current AC-22A 415V (A)
25
Rated operational current AC-22A 500V (A)
25
Rated operational current AC-22A 690V (A)
25
Rated operational current AC-23A 415V (A)
25
Rated operational current AC-23A 500V (A)
25
Rated operational current AC-23A 690V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
11
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
22
Rated short-ckt. making cap. Icm 690V (kA)
2.5
Rated short-time withstand current 1s Icw 690V (kA)
1.7
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Manual motor controller 6x25A
Switch type
Load Break Switch
Technical name
6x25A 400V 11kW
Terminals bolt size (Cu mm²)
1,5..16
UL
UL 60947-4-1A
Volume
2.6266 l
Width
144 mm
Wire size Cu
14-8AWG

Dimensional drawing

Logistical data

Package size 1 depth
113 mm
Package size 1 GTIN code
6419410349953
Package size 1 height
258 mm
Package size 1 volume
3.4985 l
Package size 1 weight
1.9066 kg
Package size 1 width
120 mm
