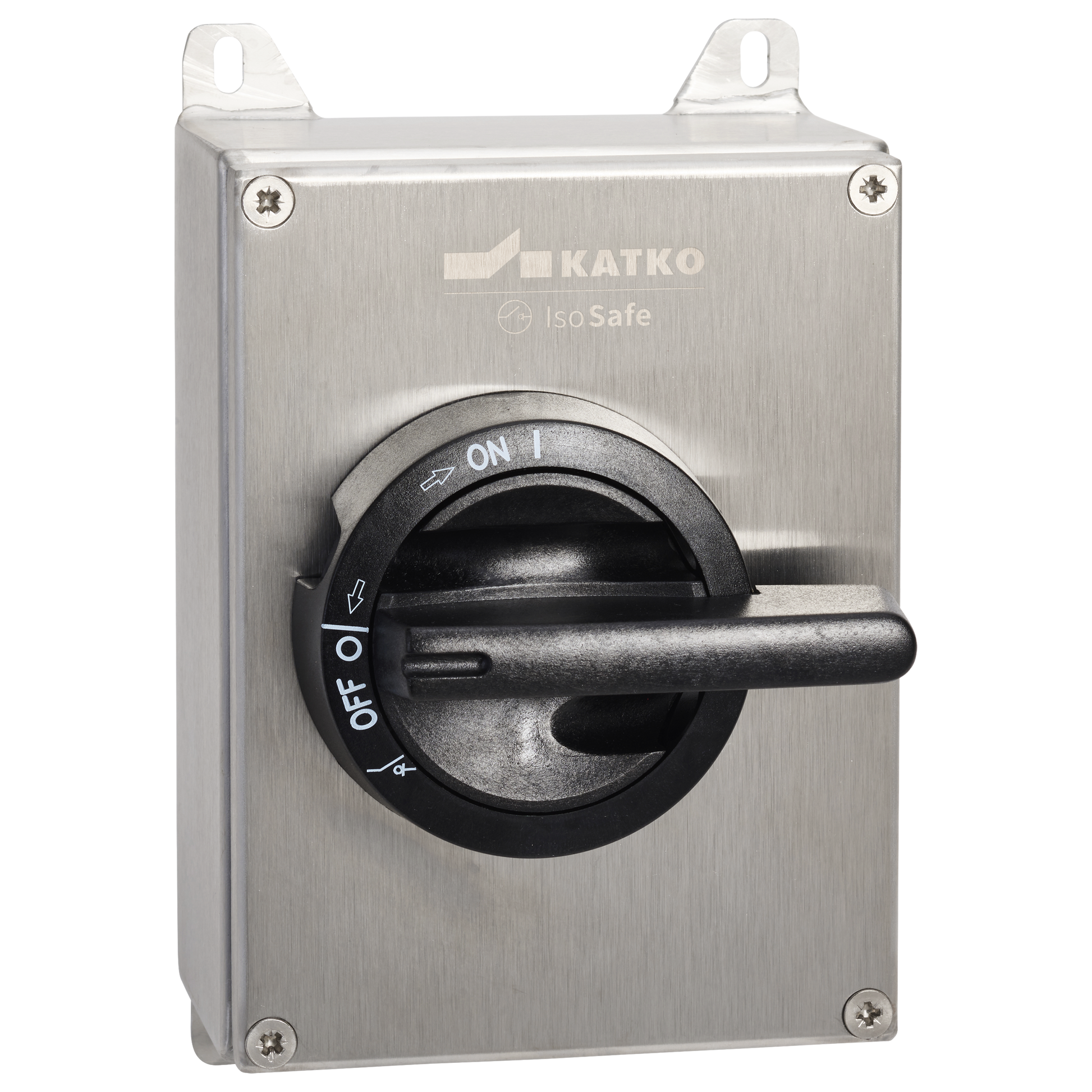

KER 316 1NOIP69K RA2 2XM25M M16M FI

Isolating switch 3x16A IP69K 1NO

KER 316 1NOIP69K RA2 2XM25M M16M FI

Katko IsoSafe IP69K-rated stainless steel safety switches are engineered for environments requiring the highest levels of protection, hygiene and corrosion resistance. Housed in acid-proof AISI 316L enclosures with IP69K protection, these switches withstand high-pressure, high-temperature washdowns and harsh conditions, making them ideal for food processing, pharmaceutical facilities, washdown zones and other demanding applications.

Designed for dependable performance, the range combines robust construction with clear, front-operated switching and padlockable interlocks, ensuring both safety and reliability in challenging environments.

Numer produktu
30085
E-number FI
3662173
Rated operational current AC-23A 415V (A)
16
Enclosure type
Stainless steel enclosure (AISI 316L)
Enclosure
RA2 (120 x 160 x 77 mm)
Mounted auxiliary contacts
1NO
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Cable entries
2 x M25 (11,0-17,0 mm), metal; 1 x M16 (5,0-10,0 mm), metal
Cover label
turvakytkin
delivery_time
10
Depth
77 mm
EMC
false
Enclosure
RA2 (120 x 160 x 77 mm)
Enclosure type
Stainless steel enclosure (AISI 316L)
ETIM Class
EC000216
E-number FI
3662173
GTIN
6419410300855
Height
160 mm
IP rating
IP69K
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Mounted auxiliary contacts
1NO
Net weight
0.874 kg
Nom. values w/cable size (mm²)
4
Number of poles
3
Product type
KER 316 1NOIP69K RA2 2XM25M M16M FI
Rated breaking cap. ICN AC-23A 415V (A)
128
Rated breaking cap. ICN AC-23A 500V (A)
128
Rated breaking cap. ICN AC-23A 690V (A)
128
Rated fused short-ckt current back-up fuse opt 1 (A)
25
Rated fused short-ckt current peak value (kA)
3.8
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
25
Rated operational current AC-21A 500V (A)
25
Rated operational current AC-21A 690V (A)
25
Rated operational current AC-22A 415V (A)
16
Rated operational current AC-22A 500V (A)
16
Rated operational current AC-22A 690V (A)
16
Rated operational current AC-23A 415V (A)
16
Rated operational current AC-23A 500V (A)
16
Rated operational current AC-23A 690V (A)
16
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
7.5
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
7.5
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
11
Rated short-ckt. making cap. Icm 690V (kA)
1
Rated short-time withstand current 1s Icw 690V (kA)
0.7
Rated therm. current Ithe (A)
25
Rated therm. current Ith (A)
25
Short product description
Isolating switch 3x16A IP69K 1NO
Switch type
Load Break Switch
Technical name
3x16A 400V 7.5kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.4784 l
Width
120 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
77 mm
Package size 1 GTIN code
6419410300855
Package size 1 height
160 mm
Package size 1 volume
1.4784 l
Package size 1 weight
0.874 kg
Package size 1 width
120 mm
Sales unit
1
