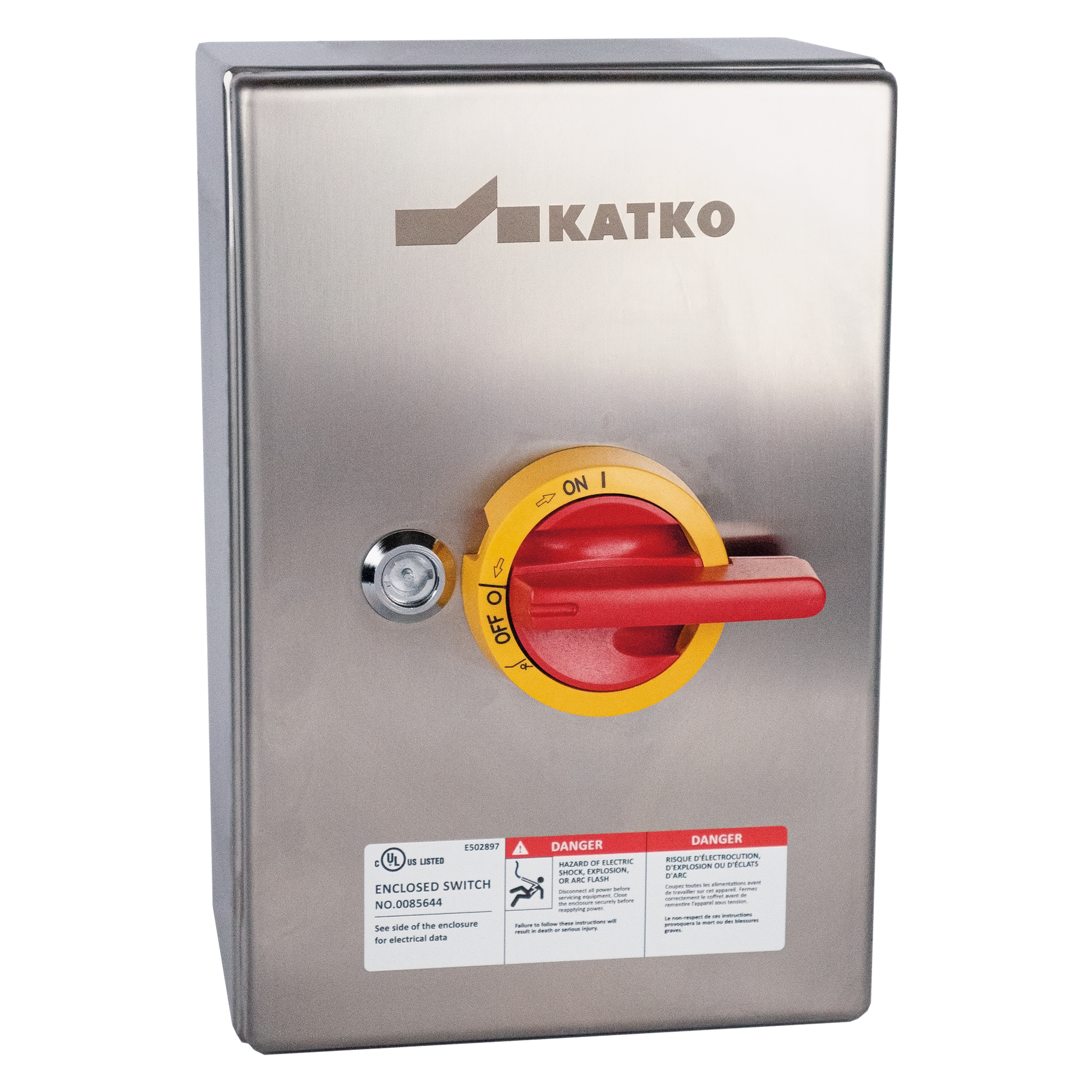

Katko UL98 listed enclosed disconnects (60-400A) are engineered for applications requiring the highest level of disconnect performance under UL standards. They are designed for high-performance switching and long-term reliability.
Used in industrial and commercial power systems, these disconnects ensure safe operation where strict compliance and durability are essential.
GTIN
Ampere rating 600V
Enclosure type
Enclosure
Technical data
Ampere rating 600V
60.0
Depth
120 mm
EMC
false
Enclosure
R4B (200 x 300 x 150 mm)
Enclosure type
Stainless steel (AISI 304)
ETIM Class
EC000216
GTIN
6419410315804
Height
300 mm
HP 208V
1.5
HP 240V
20.0
HP 480V
40.0
HP 600V
60.0
Long product name
UL98-listed, 3-pole, Yellow-red handle, Stainless steel enclosure (AISI 304); W200 x H300 x D120
Net weight
5.3037 kg
Number of poles
3
Product type
KER 360UL98 YR R4B
Short product description
Manual motor controller 3x60A
Technical name
3x40A 400V 22kW
UL
UL98
Volume
7.2 l
Width
200 mm
Wire size Cu
8-1/0 AWG
Dimensional drawing
Logistical data
Package size 1 depth
79.5 mm
Package size 1 GTIN code
6419410305362
Package size 1 height
158.5 mm
Package size 1 volume
1.3105 l
Package size 1 weight
1.0827 kg
Package size 1 width
104 mm
Downloadables
- Dimensional drawings media (2ec2c2e88a37236dbb56a4bd17afd2e150cd7c08_IsoSafe_R4B_Dim.png)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
- Brochures (3a547d77c67d61f5617637b9dd0f2f7f8136a7d8_KATKO_IsoSafe_UL_listed_selection_brochure_092024_en.pdf)
- Brochures (4a3041d4b8ee0f0877bb8cd2a41fd285d30276ff_KATKO_IsoSafe_UL98_brochure_062025_en.pdf)
