Katko UL98 listed enclosed disconnects (60-400A) are engineered for applications requiring the highest level of disconnect performance under UL standards. They are designed for high-performance switching and long-term reliability.
Used in industrial and commercial power systems, these disconnects ensure safe operation where strict compliance and durability are essential.
GTIN
Ampere rating 600V
Enclosure type
Enclosure
Technical data
Ampere rating 600V
100.0
Depth
120 mm
EMC
false
Enclosure
R5 (300 x 400 x 120 mm)
Enclosure type
Stainless steel (AISI 304)
ETIM Class
EC000216
GTIN
6419410315712
Height
400 mm
HP 208V
2.0
HP 240V
25.0
HP 480V
50.0
HP 600V
75.0
Long product name
UL98-listed, 4-pole, Stainless steel enclosure (AISI 304); W300 x H400 x D120
Number of poles
4
Product type
KER 4100UL98 R5
Short product description
Manual motor controller 4x100A
Technical name
4x100A 400V 55kW
UL
UL98
Volume
14.4 l
Width
300 mm
Wire size Cu
8-1/0 AWG

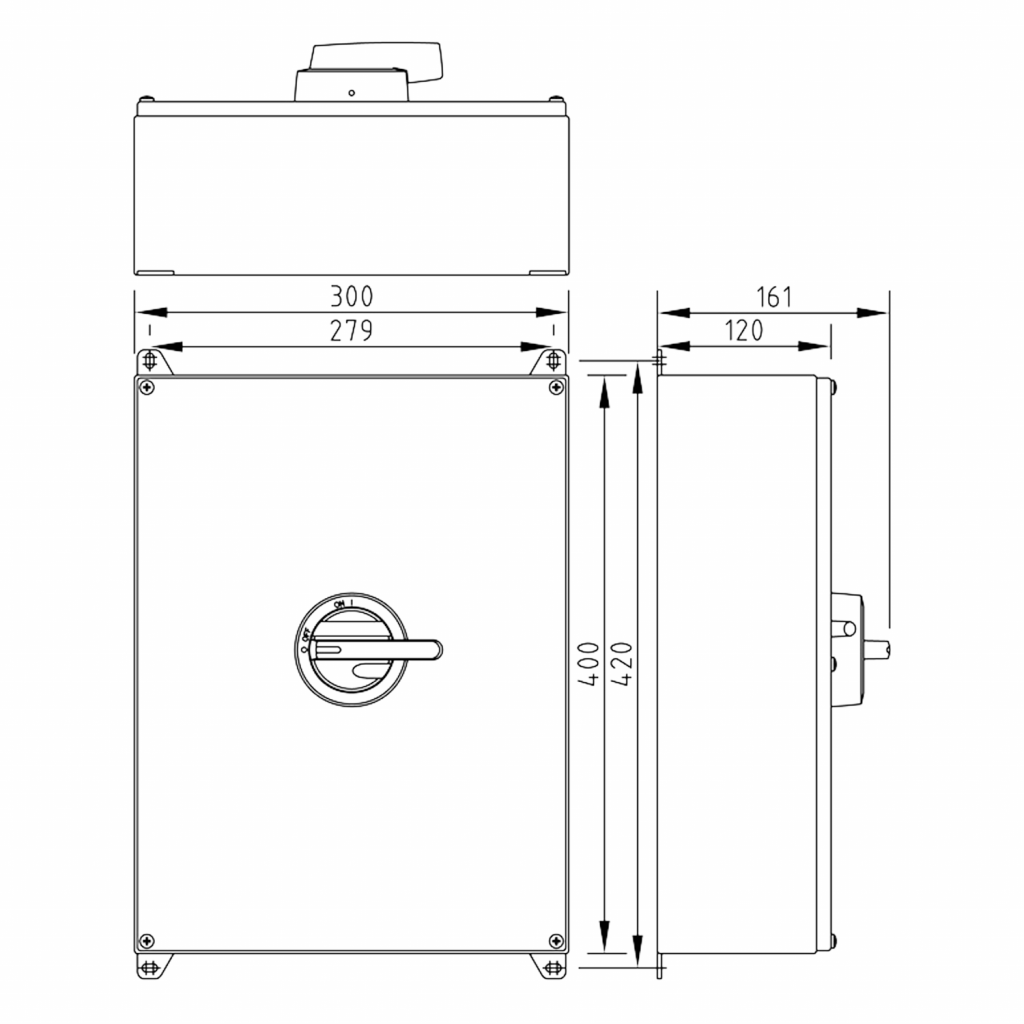

Dimensional drawing
Logistical data
Package size 1 depth
250 mm
Package size 1 GTIN code
6419410364406
Package size 1 height
800 mm
Package size 1 volume
120 l
Package size 1 width
600 mm
Downloadables
- Dimensional drawings media (33ea977380800095b8832d1df12bd2cfdae19252_IsoSafe_R5_Dim.png)
- Brochures (6379e76fa5ee33ff60767c9781ca3ebaada6c217_KATKO_IsoSafe_catalogue_102024_en.pdf)
- Brochures (88bc9d1eaaa50e840fe66815236a2d4c16fce617_KATKO_IsoSafe_catalogue_082022_fi.pdf)
- Brochures (86a395c9341799e90f45174a6e4861db77624a97_KATKO_IsoSafe_catalogue_012025_pl.pdf)
