GTIN
Rated operational current AC-23A 415V (A)
Enclosure type
Enclosure
Technical data
Cable entries
2 x M40 (19,0-28,0 mm), metal EX; 1 x plug, metal EX
Depth
120 mm
EMC
false
Enclosure
RA5EX
Enclosure type
Stainless steel enclosure (AISI 316L)
ETIM Class
EC000522
EX
true
GTIN
6419410305775
Height
400 mm
IP rating
IP66
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
7.3335 kg
Nom. values w/cable size (mm²)
95
Number of poles
4
Product type

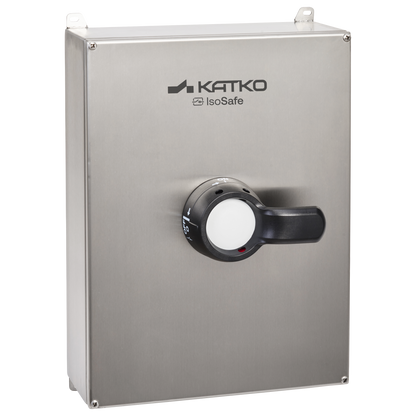

KER 4160 RA5EX 2XM40MEX KST16MEX
Rated breaking cap. ICN AC-23A 415V (A)
1280
Rated breaking cap. ICN AC-23A 500V (A)
800
Rated breaking cap. ICN AC-23A 690V (A)
800
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
160
Rated operational current AC-21A 500V (A)
160
Rated operational current AC-21A 690V (A)
160
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 500V (A)
160
Rated operational current AC-22A 690V (A)
160
Rated operational current AC-23A 415V (A)
160
Rated operational current AC-23A 500V (A)
100
Rated operational current AC-23A 690V (A)
100
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
90
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
90
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ithe (A)
200
Rated therm. current Ith (A)
200
Switch type
Load Break Switch
Technical name
4x160A 400V ATEX II 3D
Terminals bolt size (Cu mm²)
6..70
Volume
14.4 l
Width
300 mm

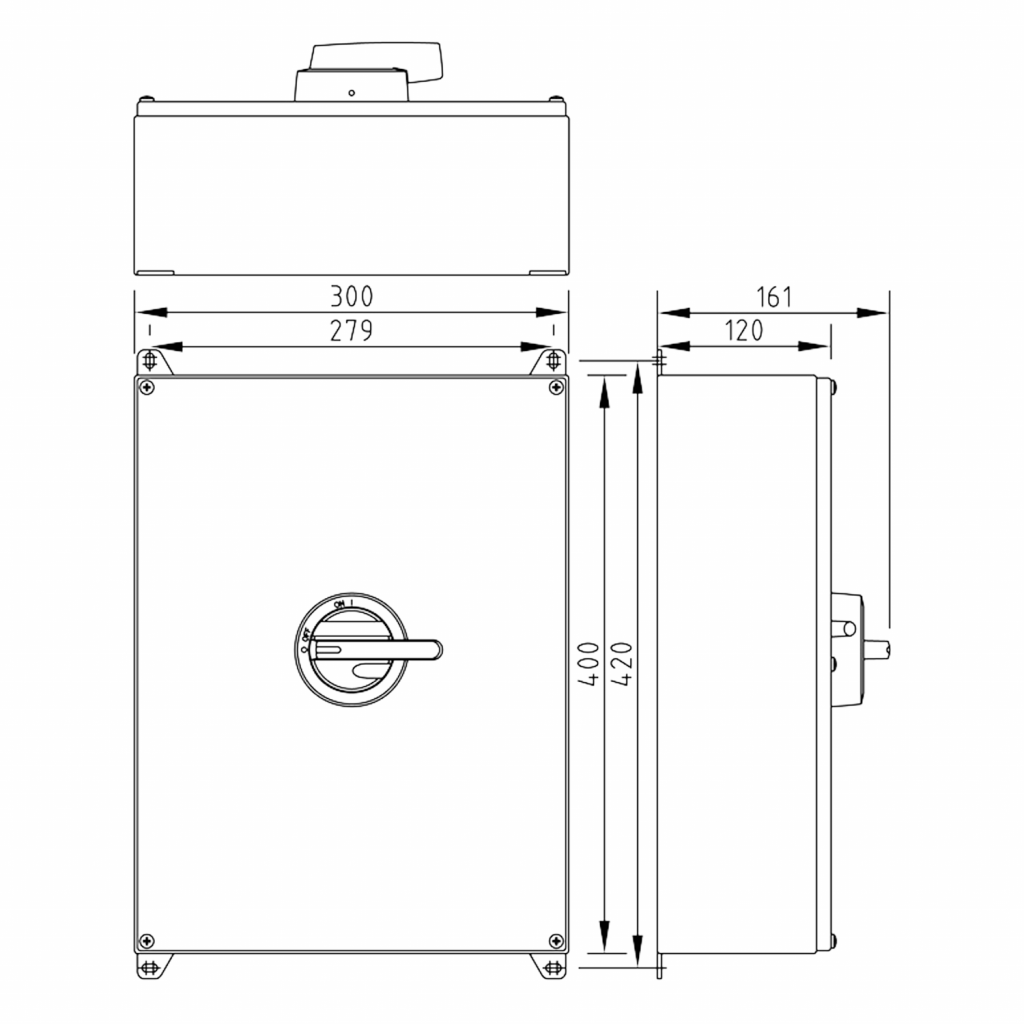

Dimensional drawing
Logistical data
