KER 460UL98 YR R4B

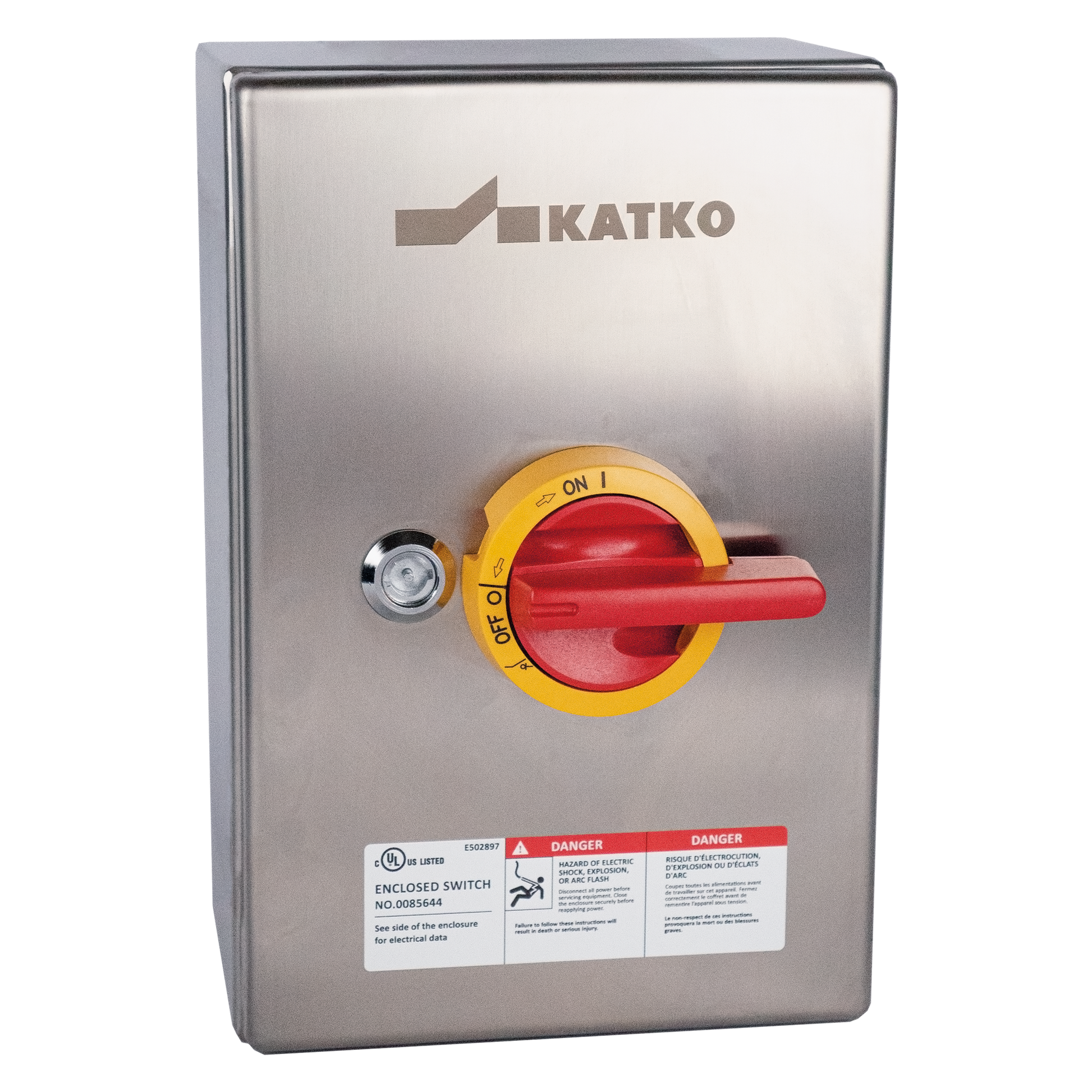

Manual motor controller 4x60A

KER 460UL98 YR R4B

Katko UL98 listed enclosed disconnects (60-400A) are engineered for applications requiring the highest level of disconnect performance under UL standards. They are designed for high-performance switching and long-term reliability.

Used in industrial and commercial power systems, these disconnects ensure safe operation where strict compliance and durability are essential.

Numer produktu
31581
Ampere rating 600V
60
Enclosure type
Stainless steel (AISI 304)
Enclosure
R4B (200 x 300 x 150 mm)
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

GTIN
6419410315811
Ampere rating 600V
60.0
Depth
150 mm
EMC
false
Enclosure
R4B (200 x 300 x 150 mm)
Enclosure type
Stainless steel (AISI 304)
ETIM Class
EC000216
Height
300 mm
HP 208V
2.0
HP 240V
25.0
HP 480V
50.0
HP 600V
75.0
Net weight
5.6274 kg
Number of poles
4
Product type
KER 460UL98 YR R4B
Short product description
Manual motor controller 4x60A
Technical name
4x40A 400V 22kW
UL
UL98
Volume
9 l
Width
200 mm
Wire size Cu
8-1/0 AWG

Dimensional drawing

Logistical data

Package size 1 depth
150 mm
Package size 1 GTIN code
6419410315811
Package size 1 height
300 mm
Package size 1 volume
9 l
Package size 1 weight
5.6274 kg
Package size 1 width
200 mm

Downloadables

Unlock content

We continuously improve our products; specifications, features and appearances may change without prior notice.
