GTIN
Rated operational current AC-23A 415V (A)
Enclosure type
Enclosure
Technical data
Cable entries
4 x M40 (19,0-28,0 mm), metal EX; 1 x plug, metal EX
Depth
120 mm
EMC
false
Enclosure
RA5EX
Enclosure type
Stainless steel enclosure (AISI 316L)
ETIM Class
EC000522
EX
true
GTIN
6419410306512
Height
400 mm
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
7.6276 kg
Nom. values w/cable size (mm²)
95
Number of poles
6
Product type

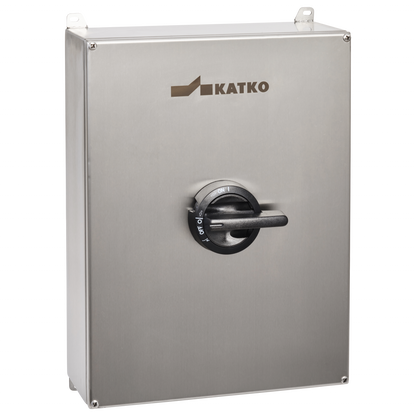

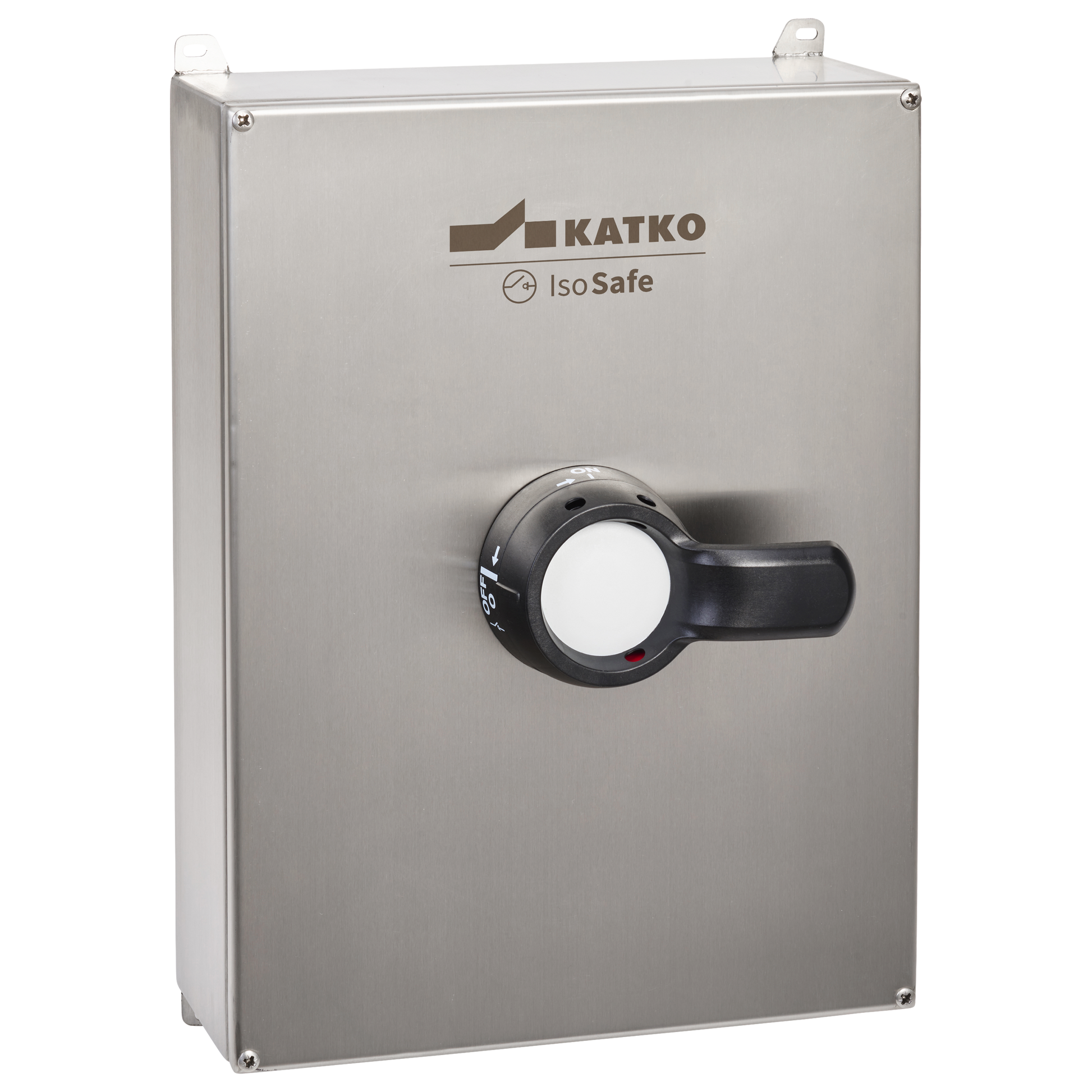

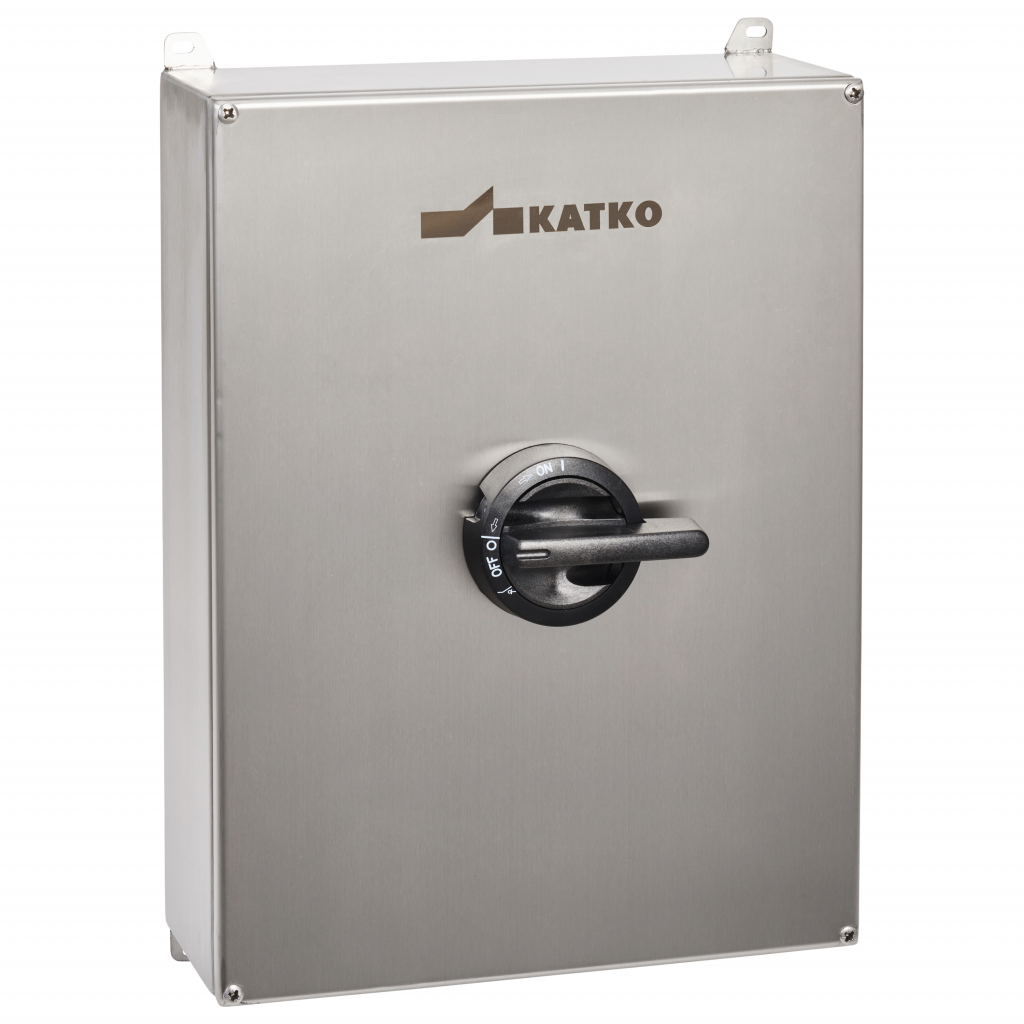

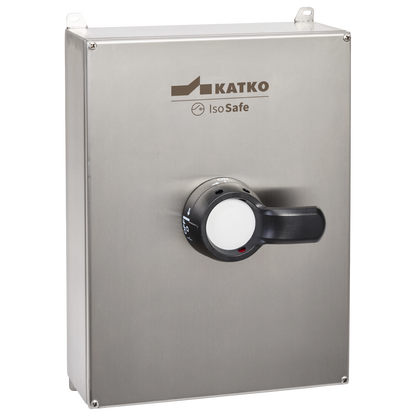

KER 6160 RA5EX 4XM40MEX KST16MEX
Rated breaking cap. ICN AC-23A 415V (A)
1280
Rated breaking cap. ICN AC-23A 500V (A)
800
Rated breaking cap. ICN AC-23A 690V (A)
800
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
160
Rated operational current AC-21A 500V (A)
160
Rated operational current AC-21A 690V (A)
160
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 500V (A)
160
Rated operational current AC-22A 690V (A)
160
Rated operational current AC-23A 415V (A)
160
Rated operational current AC-23A 500V (A)
100
Rated operational current AC-23A 690V (A)
100
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
90
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
90
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ithe (A)
200
Rated therm. current Ith (A)
200
Switch type
Load Break Switch
Technical name
6x160A 400V ATEX II 3D
Terminals bolt size (Cu mm²)
6..70
Volume
14.4 l
Width
300 mm
Dimensional drawing
Logistical data
