Manual motor controller 6x25A

- KER 625UL RA4RS

Manual motor controller 6x25A

Katko UL/cUL listed stainless steel enclosed disconnect switches (AISI 304 and AISI 316L) are designed for demanding industrial and hygienic environments where corrosion resistance, reliability and compliance are essential. Available in Type 1, Type 3R, Type 12 and Type 4X configurations, the stainless steel enclosure provides excellent protection against chemicals and frequent washdown, ensuring dependable operation in harsh conditions.

The switches support across-the-line motor starting up to 75 HP at 600 V and are suitable for a wide range of motor and load disconnect applications. Certified according to UL and CSA requirements and compliant with UL 60947-4-1A, they meet North American regulatory expectations where performance, cleanliness and durability are critical.

GTIN
6419410307601
Ampere rating 600V
25
Enclosure type
Stainless steel enclosure (AISI 316L)
Enclosure
RA4RS (160 x 369 x 127 mm)
Pokaż kompletne dane

Product details and documents

Technical data

Ampere rating 600V
25.0
Depth
124 mm
EMC
false
Enclosure
RA4RS (160 x 369 x 127 mm)
Enclosure type
Stainless steel enclosure (AISI 316L)
ETIM Class
EC000216
GTIN
6419410307601
Height
369 mm
HP 208V
5.0
HP 415V
7.5
HP 480V
15.0
HP 600V
10.0
IP rating
IP66
Long product name
UL-listed, 6-pole, Acid-resistant stainless steel enclosure with rain hood (AISI 316L); stainless steel handle; W160 x H369 x D124
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Net weight
3.1605 kg
Nom. values w/cable size (mm²)
10
Number of poles
6
Product type
- KER 625UL RA4RS
Rated breaking cap. ICN AC-23A 415V (A)
200
Rated breaking cap. ICN AC-23A 500V (A)
200
Rated breaking cap. ICN AC-23A 690V (A)
200
Rated fused short-ckt current back-up fuse opt 1 (A)
40
Rated fused short-ckt current peak value (kA)
6
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-21A 500V (A)
40
Rated operational current AC-21A 690V (A)
40
Rated operational current AC-22A 415V (A)
25
Rated operational current AC-22A 500V (A)
25
Rated operational current AC-22A 690V (A)
25
Rated operational current AC-23A 415V (A)
25
Rated operational current AC-23A 500V (A)
25
Rated operational current AC-23A 690V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
11
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
22
Rated short-ckt. making cap. Icm 690V (kA)
2.5
Rated short-time withstand current 1s Icw 690V (kA)
1.7
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Manual motor controller 6x25A
Switch type
Load Break Switch
Technical name
6x25A 400V 11kW
Terminals bolt size (Cu mm²)
1,5..16
UL
UL 60947-4-1A
Volume
7.321 l
Width
160 mm
Wire size Cu
14-8AWG

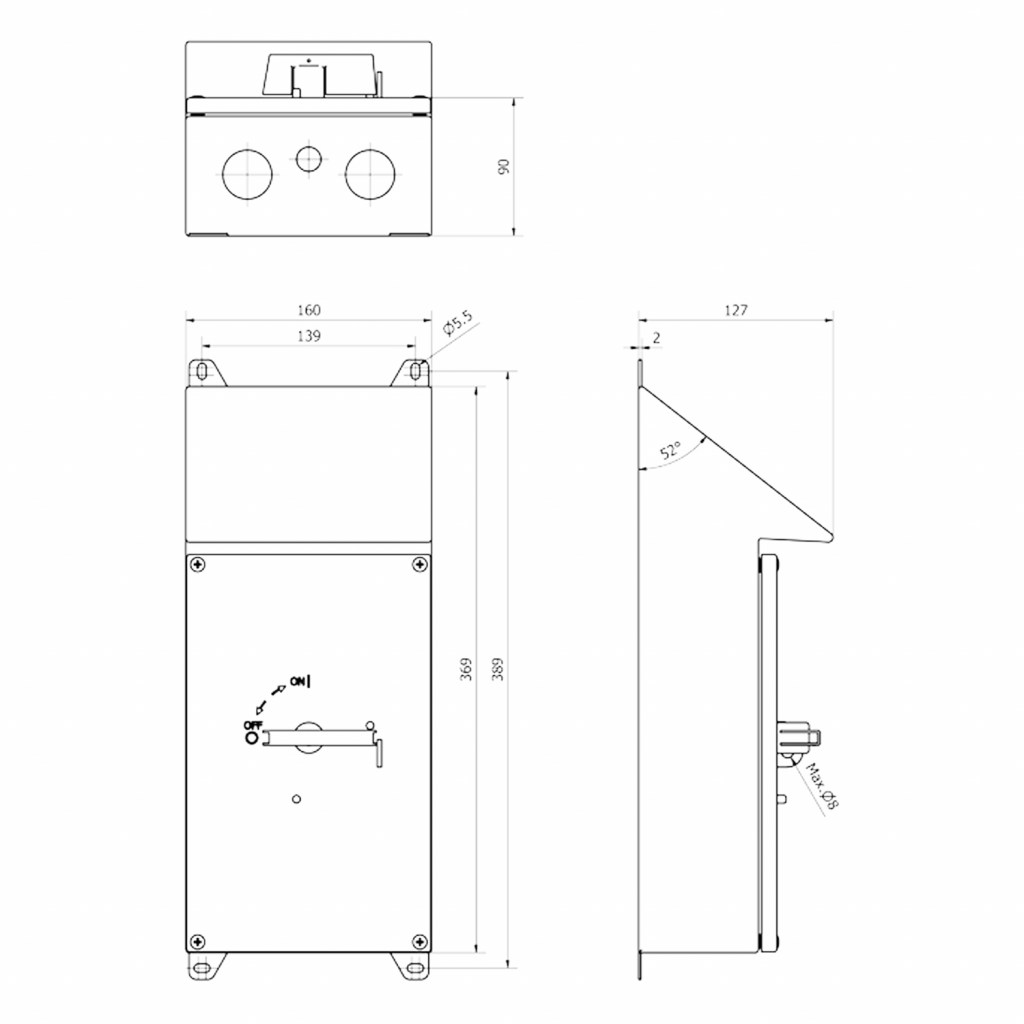

Dimensional drawing

Logistical data

Package size 1 depth
120 mm
Package size 1 GTIN code
6419410357958
Package size 1 height
200 mm
Package size 1 volume
3.6 l
Package size 1 weight
2.4304 kg
Package size 1 width
150 mm
