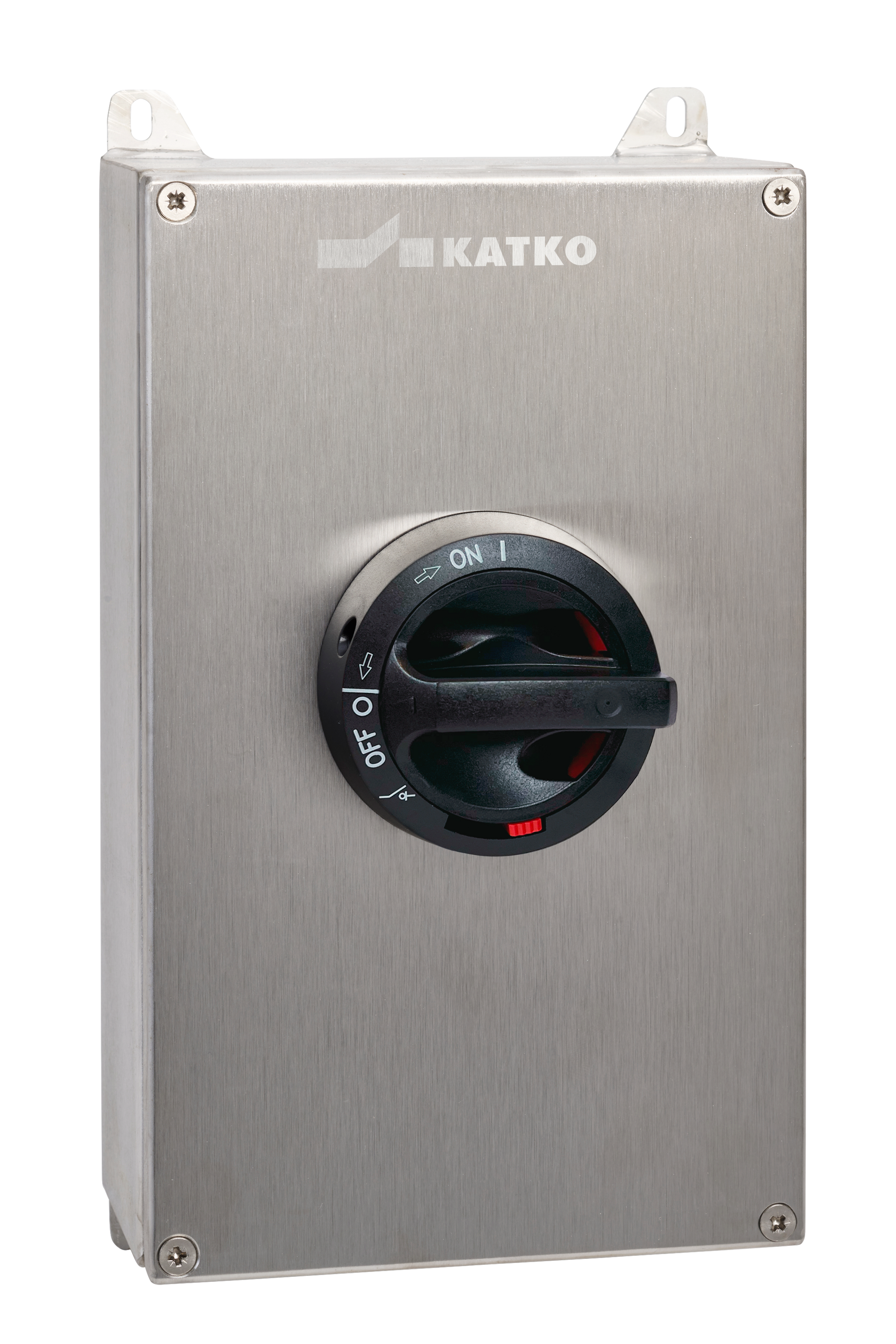

KER 680 RA4EX 4XM32MEX KST16MEX

KER 680 RA4EX 4XM32MEX KST16MEX

KER 680 RA4EX 4XM32MEX KST16MEX

GTIN
6419410306444
Rated operational current AC-23A 415V (A)
63
Enclosure type
Stainless steel enclosure (AISI 316L)
Enclosure
RA4EX
Pokaż kompletne dane

Product details and documents

Technical data

Cable entries
4 x M32 (15,0-21,0 mm), metal EX; 1 x plug, metal EX
Depth
90 mm
EMC
false
Enclosure
RA4EX
Enclosure type
Stainless steel enclosure (AISI 316L)
ETIM Class
EC000522
EX
true
GTIN
6419410306444
Height
260 mm
IP rating
IP66
Max. term. torque (Nm)
2.5
Mech. endurance (no. of oper.)
50000
Net weight
2.7284 kg
Nom. values w/cable size (mm²)
35
Number of poles
6
Product type
KER 680 RA4EX 4XM32MEX KST16MEX
Rated breaking cap. ICN AC-23A 415V (A)
504
Rated breaking cap. ICN AC-23A 500V (A)
320
Rated breaking cap. ICN AC-23A 690V (A)
320
Rated fused short-ckt current back-up fuse opt 1 (A)
80
Rated fused short-ckt current peak value (kA)
8.2
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
100
Rated operational current AC-21A 500V (A)
100
Rated operational current AC-21A 690V (A)
100
Rated operational current AC-22A 415V (A)
80
Rated operational current AC-22A 500V (A)
80
Rated operational current AC-22A 690V (A)
80
Rated operational current AC-23A 415V (A)
63
Rated operational current AC-23A 500V (A)
40
Rated operational current AC-23A 690V (A)
40
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
30
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
30
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
37
Rated short-ckt. making cap. Icm 690V (kA)
3.1
Rated short-time withstand current 1s Icw 690V (kA)
2
Rated therm. current Ithe (A)
100
Rated therm. current Ith (A)
100
Switch type
Load Break Switch
Technical name
6x80A 400V ATEX II 3D
Terminals bolt size (Cu mm²)
2.5..35
Volume
3.744 l
Width
160 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data
