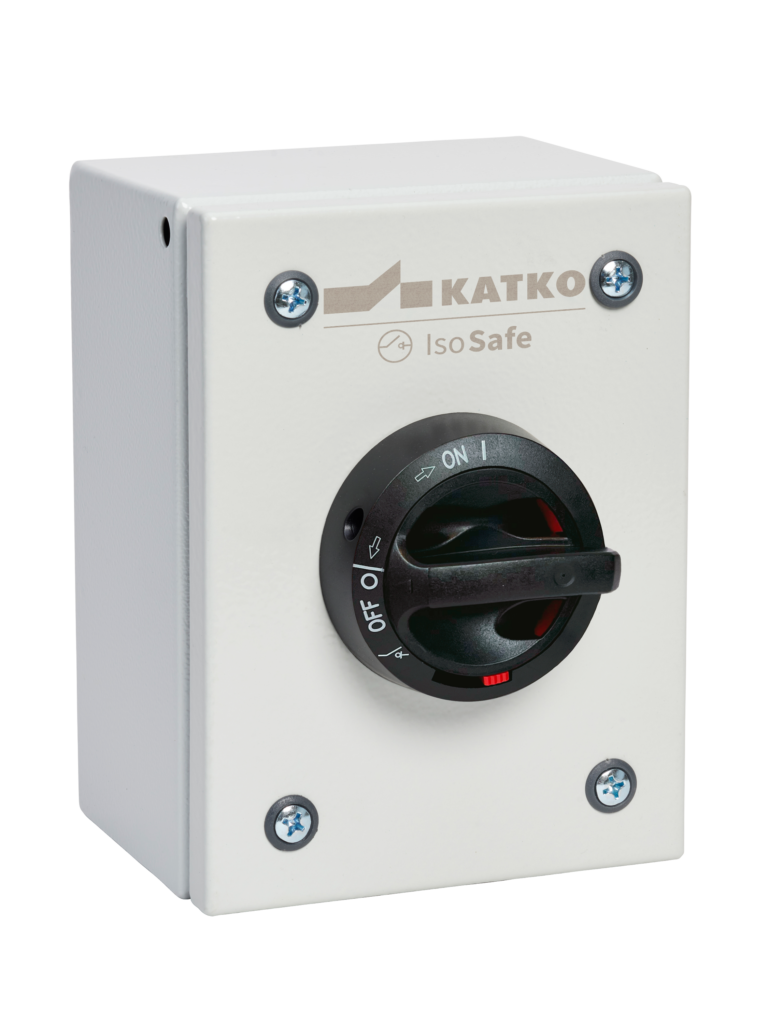

KET 280 T3

Isolating switch 2x63A IP66

KET 280 T3

Katko IsoSafe sheet steel enclosed safety switches are designed for demanding industrial applications where mechanical strength and operational reliability are critical. The robust sheet steel enclosure provides excellent protection against impact and external stress, ensuring safe and dependable operation in harsh environments.

Clear construction and reliable safety features support safe use and maintenance even in heavy-duty applications. Designed and manufactured in Finland, IsoSafe sheet steel switches reflect decades of industrial experience, meet international safety and quality standards, and are trusted wherever reliability cannot be compromised.

GTIN
6419410358047
Rated operational current AC-23A 415V (A)
63
Enclosure type
Painted sheet steel
Enclosure
T3 (150 x 200 x 120 mm)

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Depth
120 mm
EMC
false
Enclosure
T3 (150 x 200 x 120 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
GTIN
6419410358047
Height
200 mm
IP rating
IP66
Long product name
2-pole, Sheet steel enclosure; W150 x H200 x D120
Max. term. torque (Nm)
2.5
Mech. endurance (no. of oper.)
50000
Net weight
2.1513 kg
Nom. values w/cable size (mm²)
35
Number of poles
2
Product type
KET 280 T3
Rated breaking cap. ICN AC-23A 415V (A)
504
Rated fused short-ckt current back-up fuse opt 1 (A)
80
Rated fused short-ckt current peak value (kA)
8.2
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
100
Rated operational current AC-22A 415V (A)
80
Rated operational current AC-23A 240V (A)
63
Rated operational current AC-23A 415V (A)
63
Rated oper. power 1-ph 1500rpm SQ cage motor AC-23A 240V (kw)
11
Rated short-ckt. making cap. Icm 690V (kA)
2.5
Rated short-time withstand current 1s Icw 690V (kA)
2
Rated therm. current Ithe (A)
100
Rated therm. current Ith (A)
100
Short product description
Isolating switch 2x63A IP66
Switch type
Load Break Switch
Technical name
2x63A 400V 30kW
Terminals bolt size (Cu mm²)
2.5..35
Volume
3.6 l
Width
150 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 GTIN code
6419410358047
Package size 1 weight
2.1513 kg
Sales unit
1
