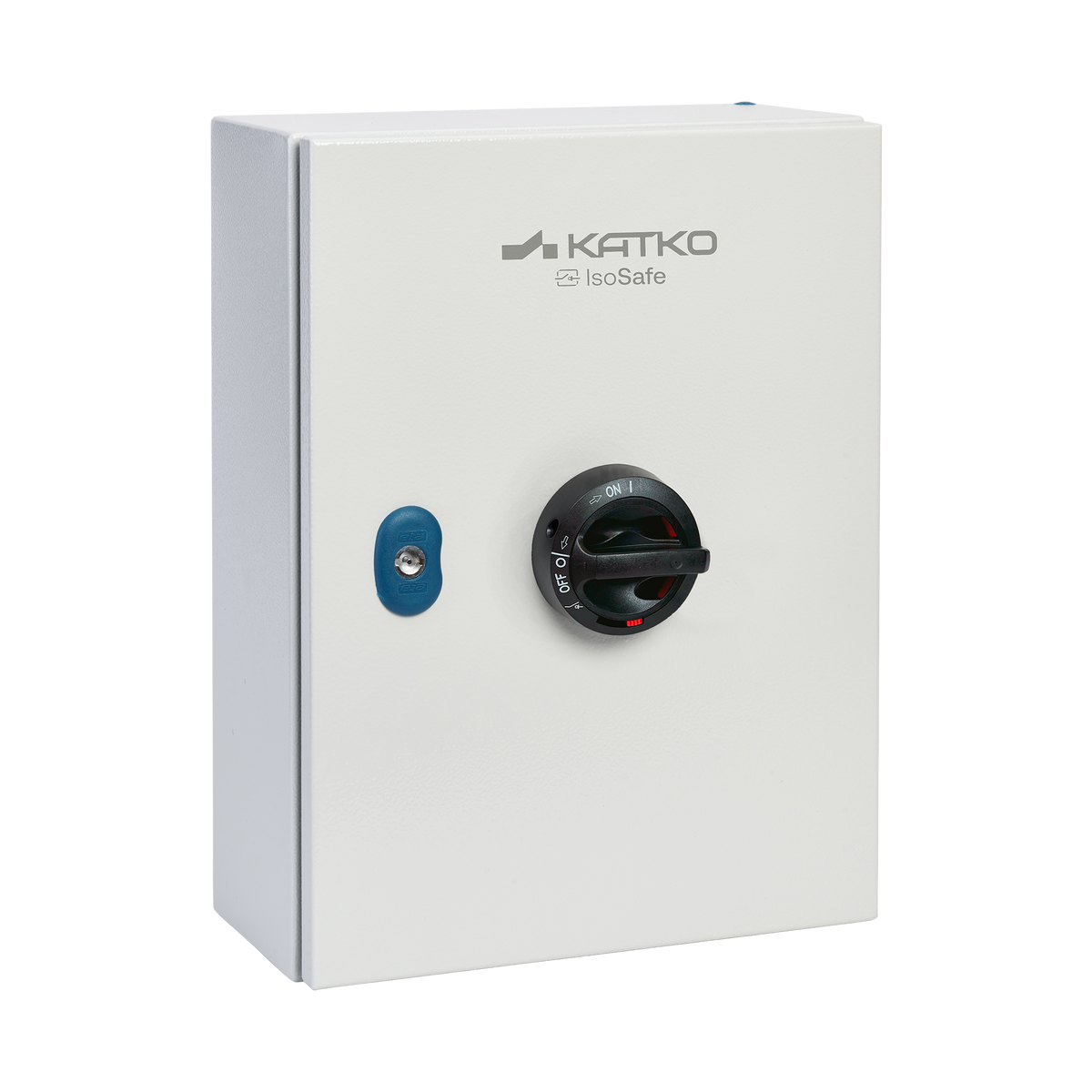

Isolating switch EMC 3x160A IP66

KET 3160 T5EMC 2XM50MEMC

Isolating switch EMC 3x160A IP66

Katko EMC isolators (10-1600A) are engineered to ensure reliable isolation while maintaining electromagnetic compatibility in sensitive installations. They are designed to meet the requirements of environments where electrical interference must be carefully controlled.

By combining effective shielding with durable construction, EMC isolators support stable system performance in industrial, commercial, and infrastructure applications where EMC compliance is critical.

GTIN
6419410336649
Rated operational current AC-23A 415V (A)
160
Enclosure type
Painted sheet steel
Enclosure
T5 (300 x 400 x 150 mm)
Pokaż kompletne dane

Product details and documents

Technical data

Cable entries
2 x M50 (27,0-38,0 mm), metal EMC
Depth
150 mm
EMC
true
Enclosure
T5 (300 x 400 x 150 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
GTIN
6419410336649
Height
400 mm
IP rating
IP66
Long product name
3-pole, Sheet steel enclosure; W300 x H400 x D150,EMC shielded, Cable entries: 2 x M50 (27,0-38,0 mm), metal EMC
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
8.439 kg
Nom. values w/cable size (mm²)
95
Number of poles
3
Product type
KET 3160 T5EMC 2XM50MEMC
Rated breaking cap. ICN AC-23A 415V (A)
1280
Rated breaking cap. ICN AC-23A 500V (A)
800
Rated breaking cap. ICN AC-23A 690V (A)
800
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
160
Rated operational current AC-21A 500V (A)
160
Rated operational current AC-21A 690V (A)
160
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 500V (A)
160
Rated operational current AC-22A 690V (A)
160
Rated operational current AC-23A 415V (A)
160
Rated operational current AC-23A 500V (A)
100
Rated operational current AC-23A 690V (A)
100
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
90
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
90
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ithe (A)
200
Rated therm. current Ith (A)
200
Short product description
Isolating switch EMC 3x160A IP66
Switch type
Load Break Switch
Technical name
3x160A 400V 90kW
Terminals bolt size (Cu mm²)
6..70
Volume
18 l
Width
300 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Package size 1
1
Package size 1 depth
113 mm
Package size 1 GTIN code
6419410276174
Package size 1 height
258 mm
Package size 1 volume
3.4985 l
Package size 1 width
120 mm
Sales unit
1
