KET 4100UL98 T5

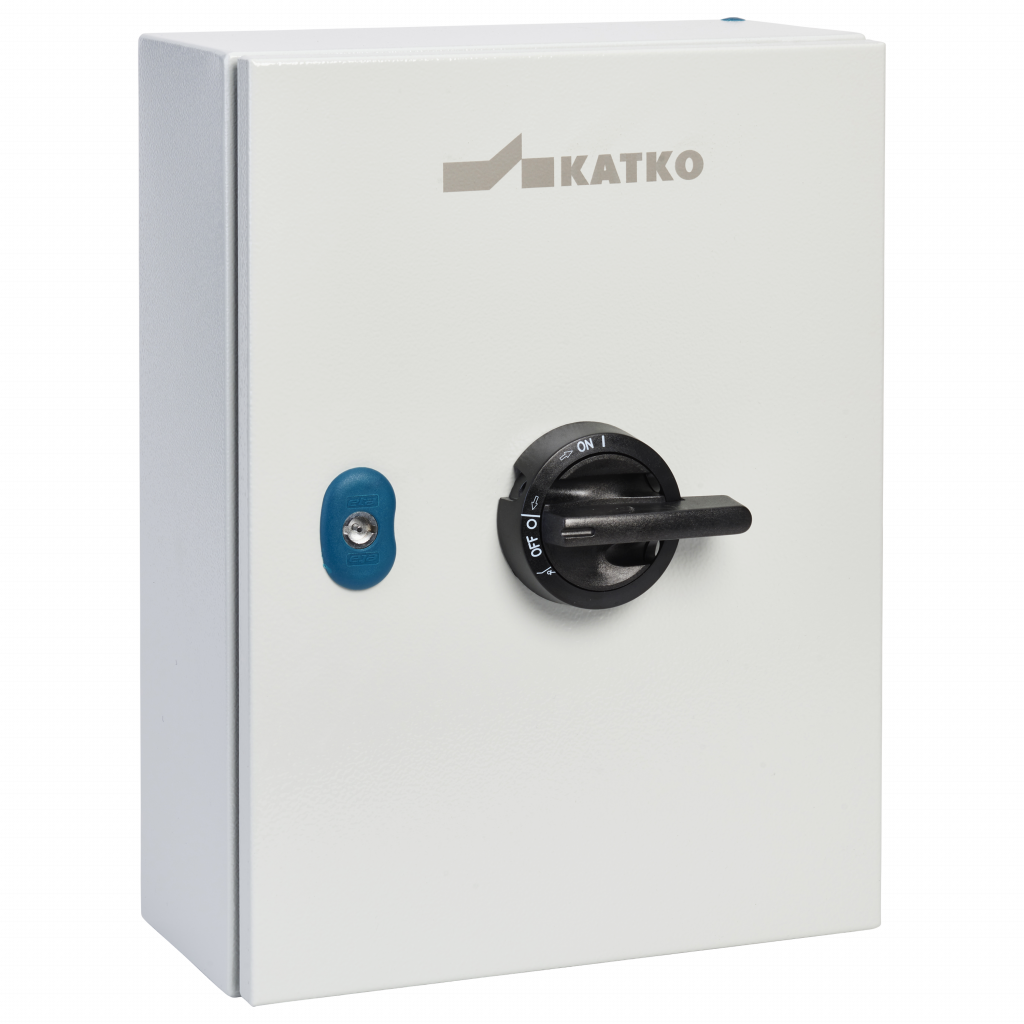

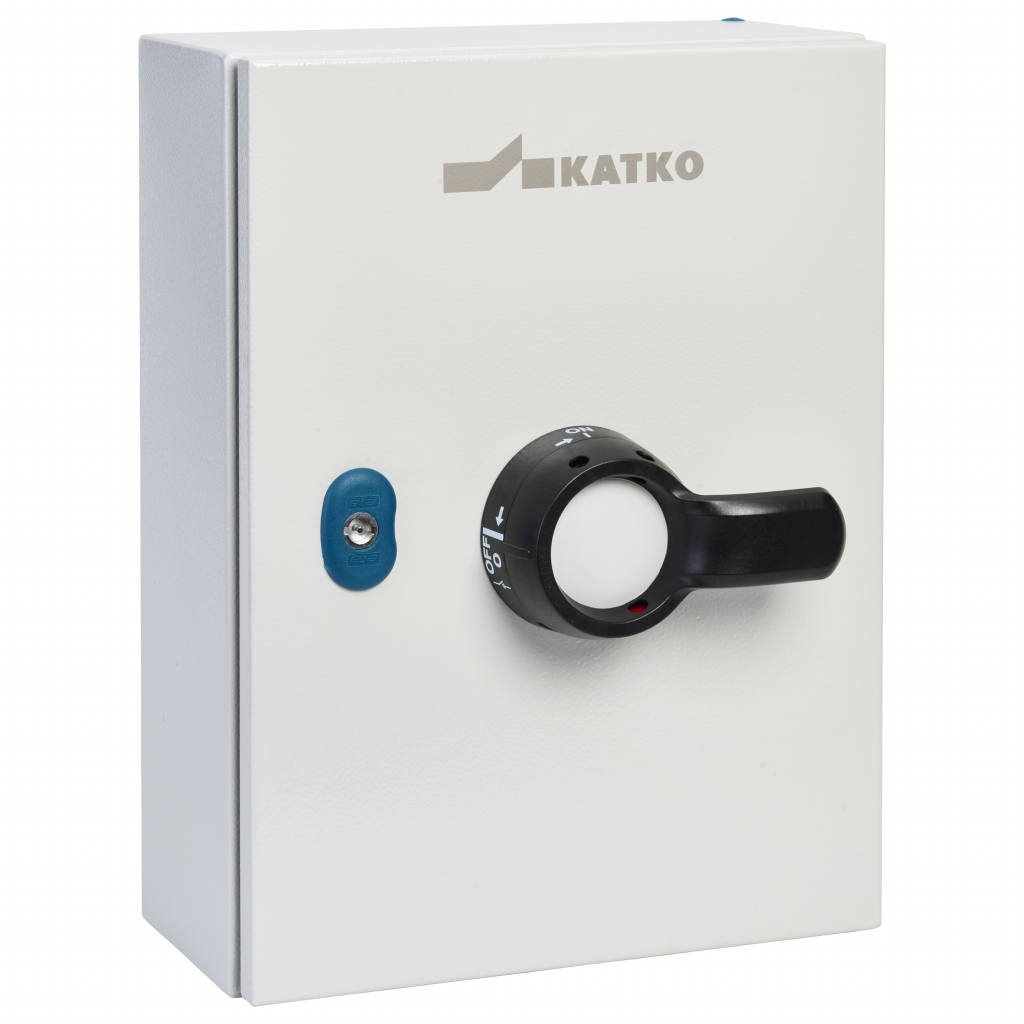

Manual motor controller 4x100A

KET 4100UL98 T5

Katko UL98 listed enclosed disconnects (60-400A) are engineered for applications requiring the highest level of disconnect performance under UL standards. They are designed for high-performance switching and long-term reliability.

Used in industrial and commercial power systems, these disconnects ensure safe operation where strict compliance and durability are essential.

Numer produktu
31567
Ampere rating 600V
100
Enclosure type
Painted sheet steel
Enclosure
T5 (300 x 400 x 150 mm)
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

GTIN
6419410315675
Ampere rating 600V
100.0
Depth
150 mm
EMC
false
Enclosure
T5 (300 x 400 x 150 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
Height
400 mm
HP 208V
2.0
HP 240V
25.0
HP 480V
50.0
HP 600V
75.0
IP rating
IP66
Net weight
8.336 kg
Number of poles
4
Product type
KET 4100UL98 T5
Short product description
Manual motor controller 4x100A
Technical name
4x100A 400V 55kW
UL
UL98
Volume
18 l
Width
300 mm
Wire size Cu
8-1/0 AWG

Dimensional drawing

Logistical data

Package size 1 depth
150 mm
Package size 1 GTIN code
6419410315675
Package size 1 height
400 mm
Package size 1 volume
18 l
Package size 1 weight
8.336 kg
Package size 1 width
300 mm
