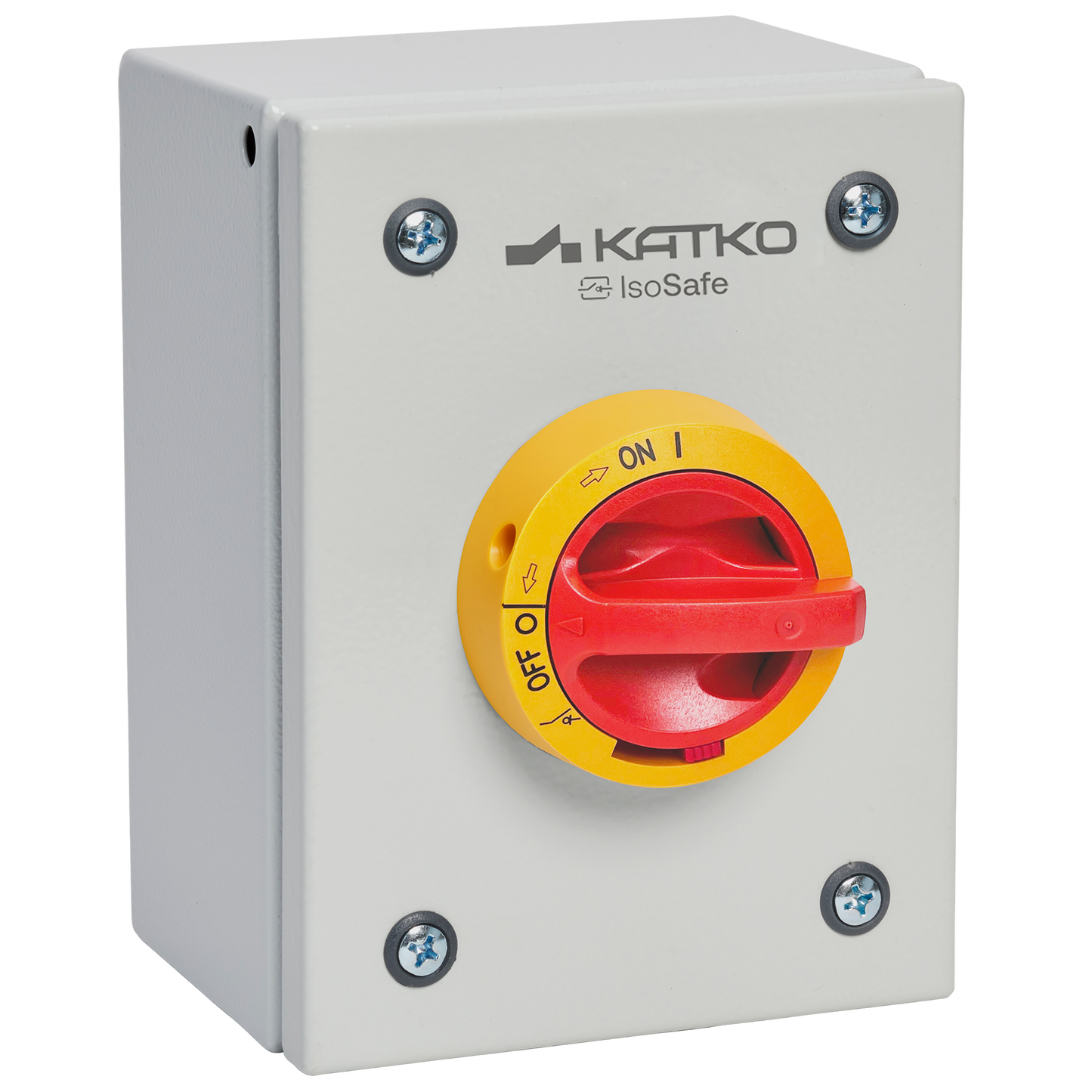

Manual motor controller 4x16A

- KET 416UL YR T3

Manual motor controller 4x16A

Katko UL/cUL listed sheet steel enclosed disconnect switches are designed for demanding industrial and infrastructure applications where mechanical strength and operational reliability are critical. Available in Type 1, Type 3R, Type 12 and Type 4 configurations, the robust sheet steel enclosure provides excellent protection against impact, dust, moisture and external stress, ensuring dependable operation in a wide range of environments.

The switches support across-the-line motor starting up to 75 HP at 600 V and are suitable for a wide range of motor and load disconnect applications. Certified according to UL and CSA requirements and compliant with UL 60947-4-1A, they meet North American regulatory expectations where durability and compliance are essential.

GTIN
6419410349014
Ampere rating 600V
16
Enclosure type
Painted sheet steel
Enclosure
T3 (150 x 200 x 120 mm)
Pokaż kompletne dane

Product details and documents

Technical data

Ampere rating 600V
16.0
Depth
120 mm
EMC
false
Enclosure
T3 (150 x 200 x 120 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
GTIN
6419410349014
Height
200 mm
HP 208V
3.0
HP 415V
3.0
HP 480V
10.0
HP 600V
7.5
IP rating
IP66
Long product name
UL-listed, 4-pole, Yellow-red handle, Sheet steel enclosure; W150 x H200 x D120
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Net weight
2.3955 kg
Nom. values w/cable size (mm²)
4
Number of poles
4
Product type
- KET 416UL YR T3
Rated breaking cap. ICN AC-23A 415V (A)
128
Rated breaking cap. ICN AC-23A 500V (A)
128
Rated breaking cap. ICN AC-23A 690V (A)
128
Rated fused short-ckt current back-up fuse opt 1 (A)
40
Rated fused short-ckt current peak value (kA)
6.1
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
25
Rated operational current AC-21A 500V (A)
25
Rated operational current AC-21A 690V (A)
25
Rated operational current AC-22A 415V (A)
16
Rated operational current AC-22A 500V (A)
16
Rated operational current AC-22A 690V (A)
16
Rated operational current AC-23A 415V (A)
16
Rated operational current AC-23A 500V (A)
16
Rated operational current AC-23A 690V (A)
16
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
7.5
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
7.5
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
11
Rated short-ckt. making cap. Icm 690V (kA)
2.5
Rated short-time withstand current 1s Icw 690V (kA)
1.7
Rated therm. current Ithe (A)
25
Rated therm. current Ith (A)
25
Short product description
Manual motor controller 4x16A
Switch type
Load Break Switch
Technical name
4x16A 400V 7.5kW
Terminals bolt size (Cu mm²)
1,5..16
UL
UL 60947-4-1A
Volume
3.6 l
Width
150 mm
Wire size Cu
14-8AWG
