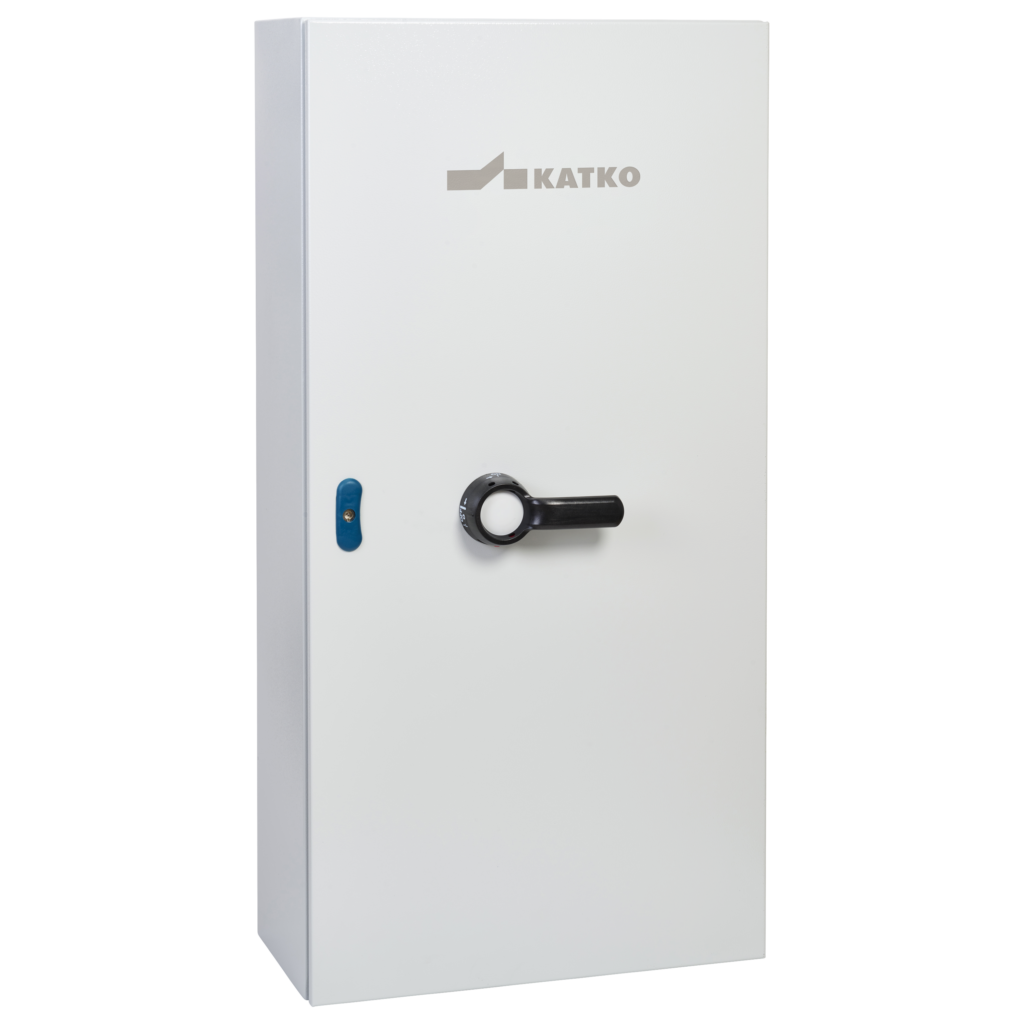

Isolating switch 4x800A IP66

KET 4800 T10A

Isolating switch 4x800A IP66

Katko IsoSafe sheet steel enclosed safety switches are designed for demanding industrial applications where mechanical strength and operational reliability are critical. The robust sheet steel enclosure provides excellent protection against impact and external stress, ensuring safe and dependable operation in harsh environments.

Clear construction and reliable safety features support safe use and maintenance even in heavy-duty applications. Designed and manufactured in Finland, IsoSafe sheet steel switches reflect decades of industrial experience, meet international safety and quality standards, and are trusted wherever reliability cannot be compromised.

GTIN
6419410342015
Rated operational current AC-23A 415V (A)
800
Enclosure type
Painted sheet steel
Enclosure
T10A (600 x 1200 x 300 mm)
Pokaż kompletne dane

Product details and documents

Technical data

Depth
300 mm
EMC
false
Enclosure
T10A (600 x 1200 x 300 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
GTIN
6419410342015
Height
1200 mm
IP rating
IP66
Long product name
4-pole, Sheet steel enclosure; W600 x H1200 x D300
Max. term. torque (Nm)
50..75
Mech. endurance (no. of oper.)
10000
Net weight
49.9626 kg
Nom. values w/cable size (mm²)
2*300
Number of poles
4
Product type
KET 4800 T10A
Rated breaking cap. ICN AC-23A 415V (A)
6400
Rated breaking cap. ICN AC-23A 500V (A)
6400
Rated breaking cap. ICN AC-23A 690V (A)
6400
Rated fused short-ckt current back-up fuse opt 1 (A)
800
Rated fused short-ckt current peak value (kA)
76
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
800
Rated operational current AC-21A 500V (A)
800
Rated operational current AC-21A 690V (A)
800
Rated operational current AC-22A 415V (A)
800
Rated operational current AC-22A 500V (A)
800
Rated operational current AC-22A 690V (A)
800
Rated operational current AC-23A 1000V (A)
400
Rated operational current AC-23A 415V (A)
800
Rated operational current AC-23A 500V (A)
800
Rated operational current AC-23A 690V (A)
800
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
400
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
560
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
800
Rated short-ckt. making cap. Icm 690V (kA)
60
Rated short-time withstand current 1s Icw 1000V (kA)
28
Rated therm. current Ithe (A)
800
Rated therm. current Ith (A)
800
Short product description
Isolating switch 4x800A IP66
Switch type
Load Break Switch
Technical name
4x800A 400V 400kW
Terminals bolt size (Cu mm²)
M12
Volume
216 l
Width
600 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
77 mm
Package size 1 GTIN code
6419410343302
Package size 1 height
160 mm
Package size 1 volume
1.4784 l
Package size 1 weight
0.6654 kg
Package size 1 width
120 mm
Sales unit
1
