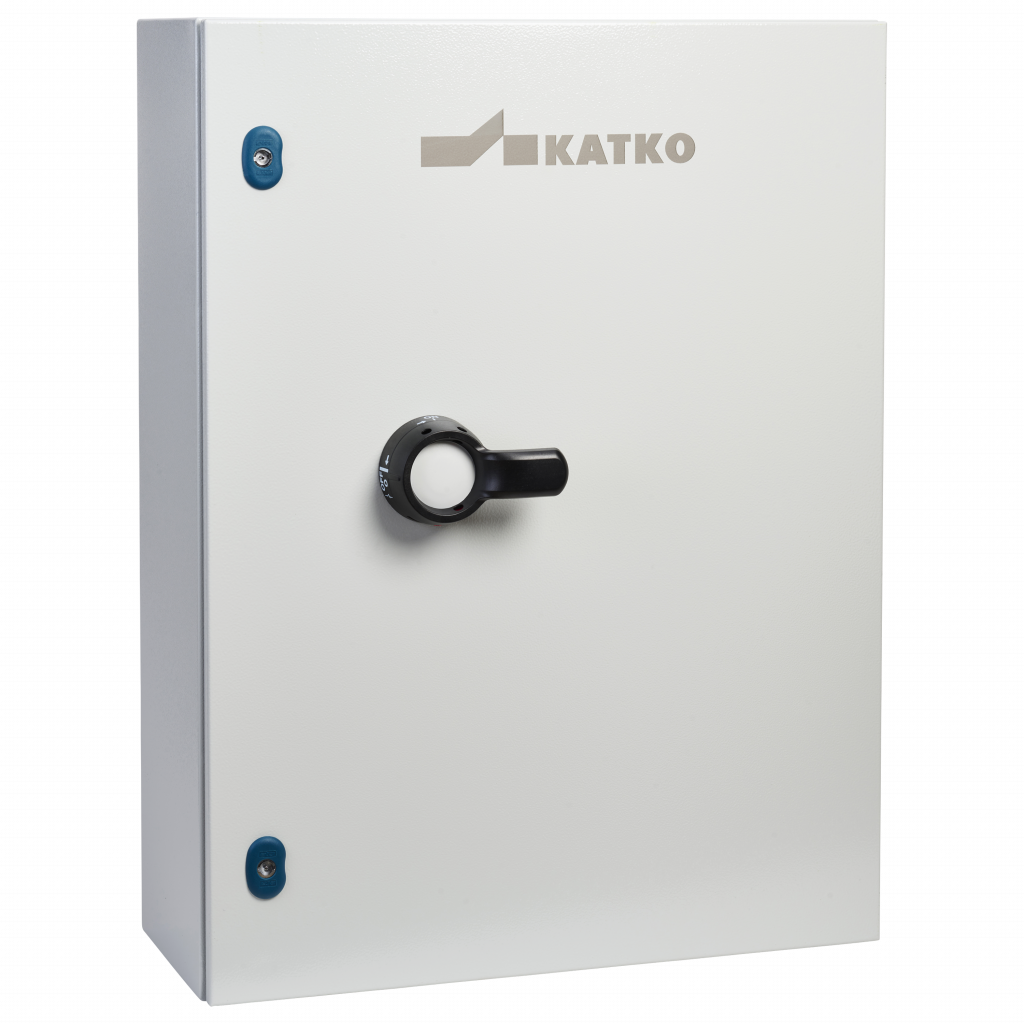

KET 6200 T7

Isolating switch 6x200A IP66

KET 6200 T7

Katko IsoSafe sheet steel enclosed safety switches are designed for demanding industrial applications where mechanical strength and operational reliability are critical. The robust sheet steel enclosure provides excellent protection against impact and external stress, ensuring safe and dependable operation in harsh environments.

Clear construction and reliable safety features support safe use and maintenance even in heavy-duty applications. Designed and manufactured in Finland, IsoSafe sheet steel switches reflect decades of industrial experience, meet international safety and quality standards, and are trusted wherever reliability cannot be compromised.

GTIN
6419410341438
Rated operational current AC-23A 415V (A)
200
Enclosure type
Painted sheet steel
Enclosure
T7 (600 x 800 x 250 mm)

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Depth
250 mm
EMC
false
Enclosure
T7 (600 x 800 x 250 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
GTIN
6419410341438
Height
800 mm
IP rating
IP66
Long product name
6-pole, Sheet steel enclosure; W600 x H800 x D250
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Net weight
33.067 kg
Nom. values w/cable size (mm²)
95
Number of poles
6
Product type
KET 6200 T7
Rated breaking cap. ICN AC-23A 415V (A)
1600
Rated breaking cap. ICN AC-23A 500V (A)
1600
Rated breaking cap. ICN AC-23A 690V (A)
1600
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current back-up fuse opt 2 (A)
315
Rated fused short-ckt current peak value (kA)
26
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt current RMS Ik opt 2 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-22A 500V (A)
200
Rated operational current AC-22A 690V (A)
200
Rated operational current AC-23A 415V (A)
200
Rated operational current AC-23A 500V (A)
200
Rated operational current AC-23A 690V (A)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
110
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
132
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
160
Rated short-ckt. making cap. Icm 690V (kA)
14
Rated short-time withstand current 1s Icw 1000V (kA)
8
Rated therm. current Ithe (A)
250
Rated therm. current Ith (A)
250
Short product description
Isolating switch 6x200A IP66
Switch type
Load Break Switch
Technical name
6x200A 400V 110kW
Terminals bolt size (Cu mm²)
M8
Volume
120 l
Width
600 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
106 mm
Package size 1 GTIN code
6419410341438
Package size 1 height
130.4 mm
Package size 1 volume
1.3325 l
Package size 1 weight
33.067 kg
Package size 1 width
96.4 mm
Sales unit
1
