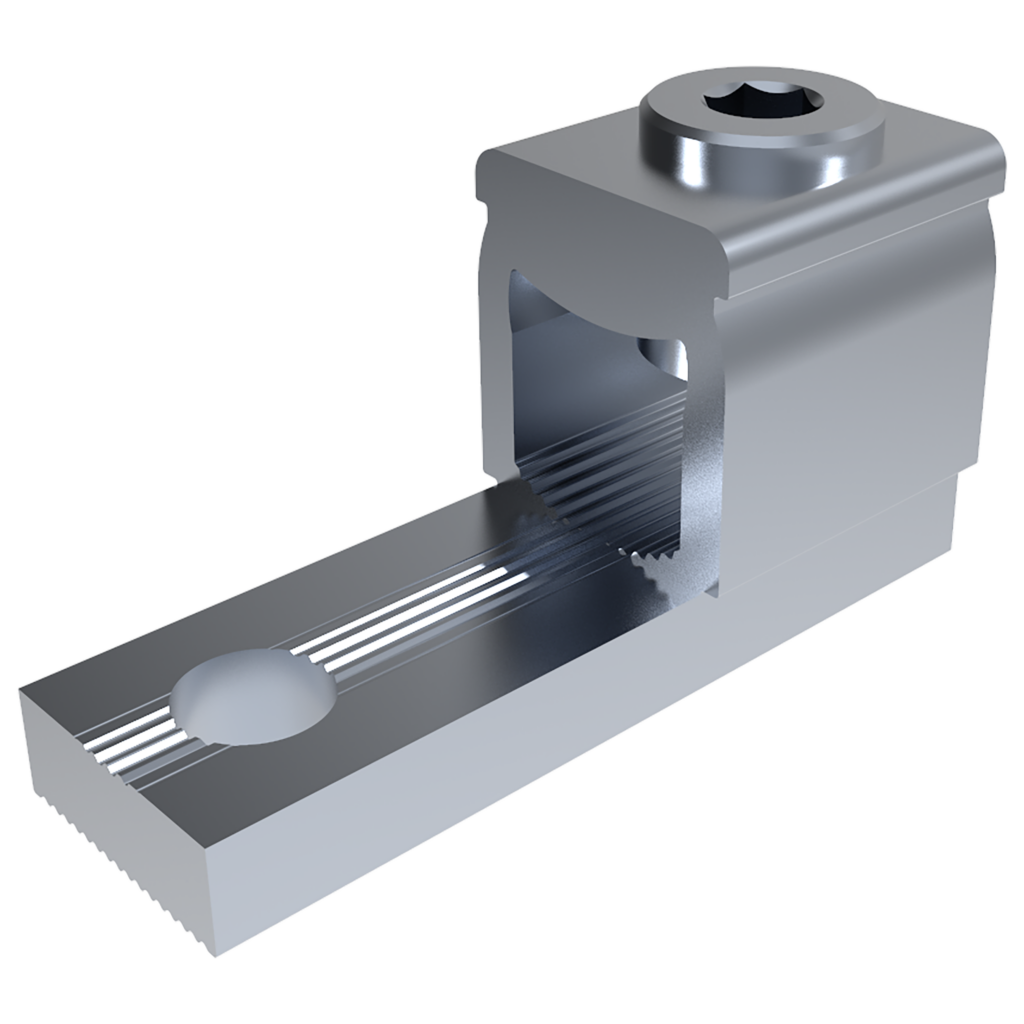

Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.
Technical data
Depth
55 mm
ETIM Class
EC001284
E-number FI
1942147
GTIN
6419410292570
Height
28 mm
In Al
200.0
In Cu
245.0
Key size
Hex 6
Net weight
0.0896 kg
Product type
KKL1X120
Short product description
Cable connector KKL 1xAl/Cu 16-120mm2
Technical name
1x16-120mm² Al/Cu
Torque Al/Cu (Nm)
12 (16-50 mm²) / 22 (70-120 mm²)
Volume
0.0308 l
Width
20 mm

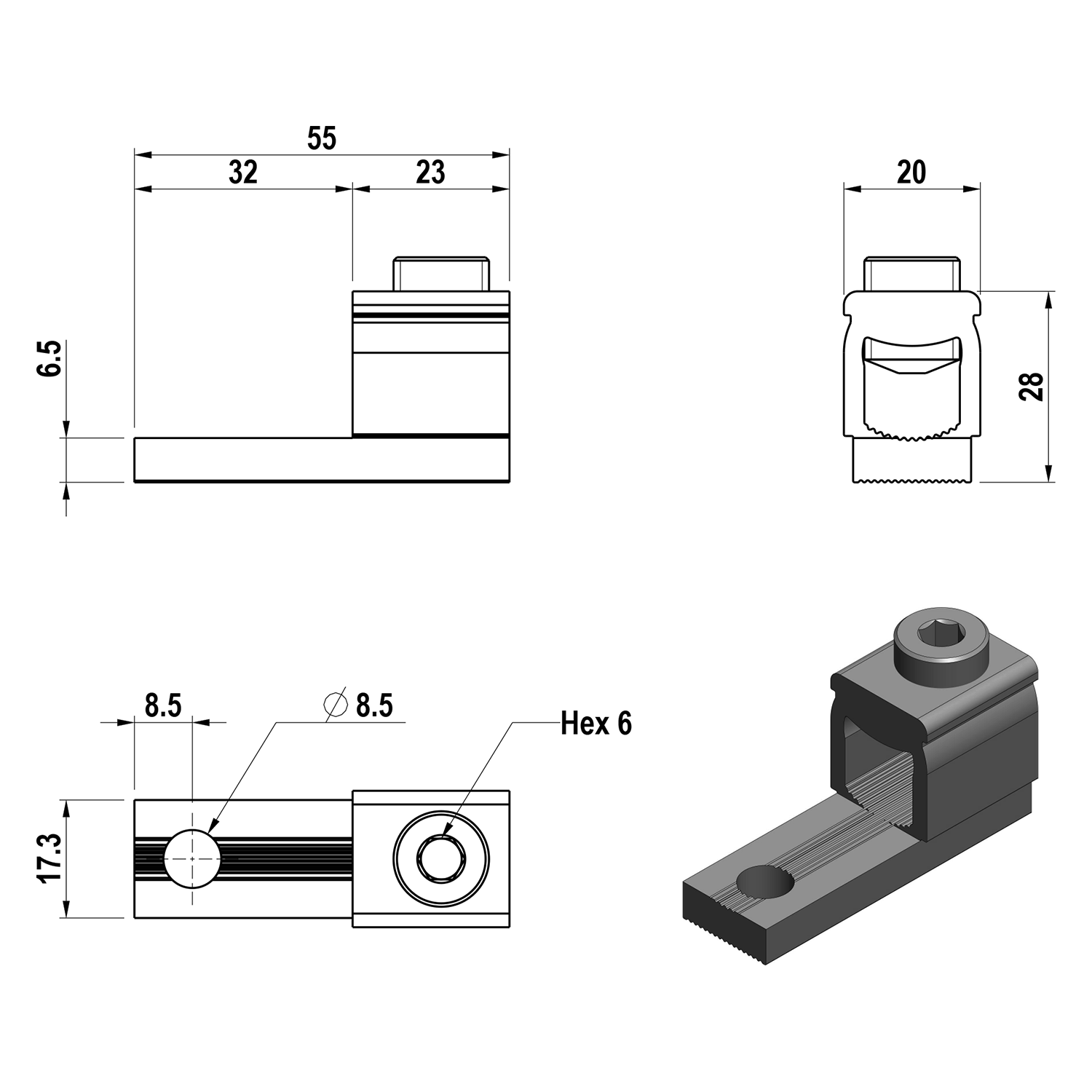

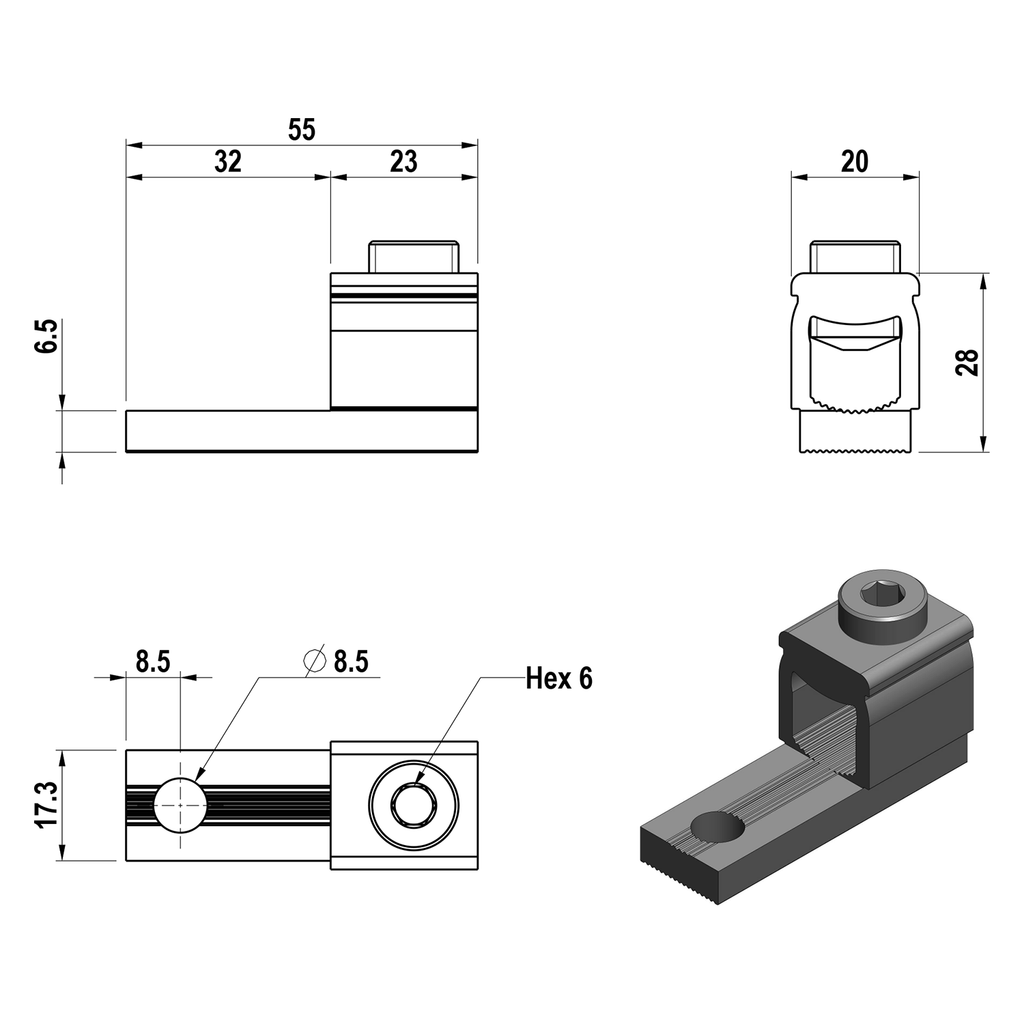

Dimensional drawing
Logistical data
Downloadables
- Dimensional drawings media (5e28ee671d5eafdcc649259f418b3ca52c089776_ConnectSafe_KKL1X120_Dim.png)
- Brochures (50486d1855d09e9df9591b2c53a0baf6b1cb2ced_KATKO_ConnectSafe_catalogue_062025_en.pdf)
- Brochures (fbb1e95859d8f104f7b3af702f3163b14f2614e3_KATKO_ConnectSafe_catalogue_082022_fi.pdf)
- Installation manuals (9ce61d2dc62192a5a0ae3e834c00b45879a7daa2_KATKO_ConnectSafe_KKL_installation_manual_93_en.pdf)
