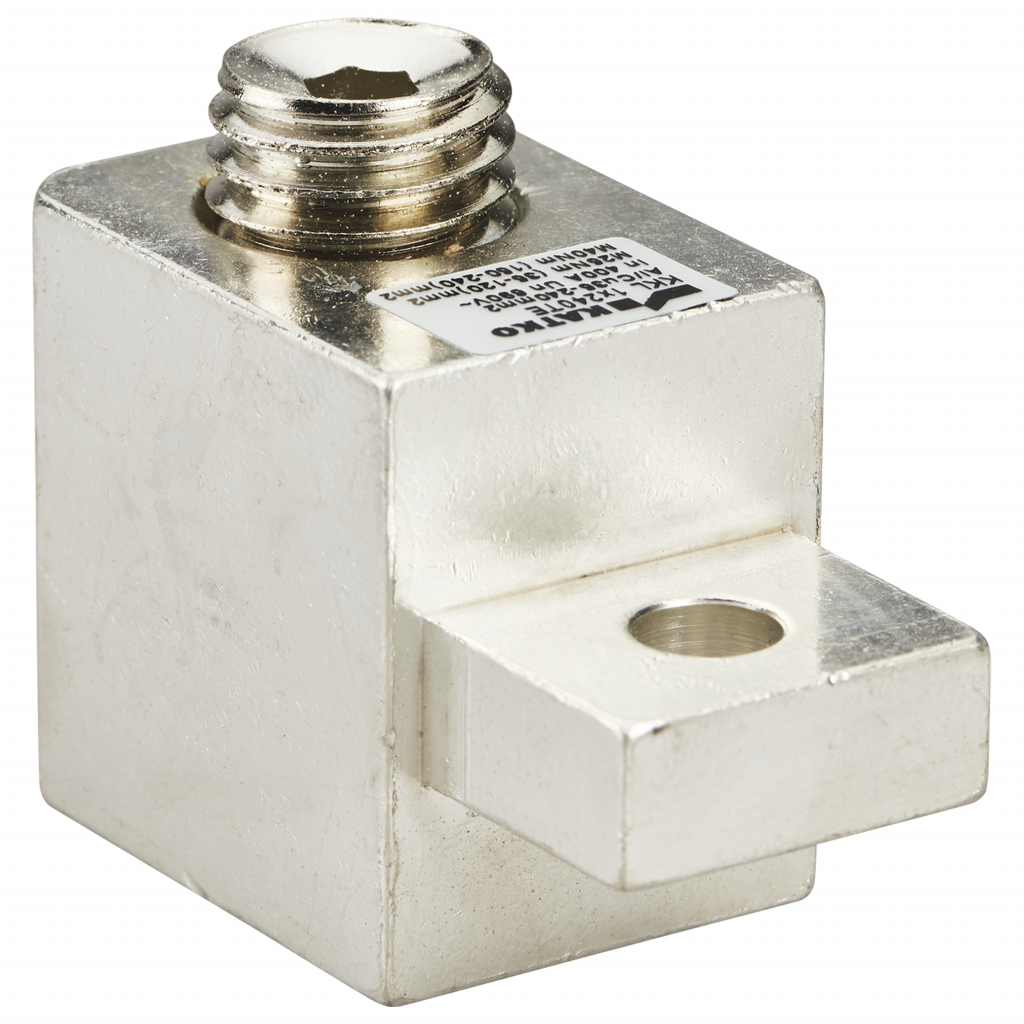

Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.
Technical data
Al (mm²)
35-240
Cu (mm²)
35-240
Depth
65 mm
ETIM Class
EC001284
E-number FI
1942105
GTIN
6419410378731
Height
47 mm
In Al
400.0
In Cu
400.0
Key size
Hex 8
Net weight
0.2406 kg
Product type
KKL1X240TE
Short product description
Cable connector KKL 1xAl/Cu 35-240mm2
Technical name
1x35-240mm² Al/Cu
Torque Al/Cu (Nm)
25 (35-120 mm²) / 40 (150-240 mm²)
Volume
0.0978 l
Width
32 mm
Dimensional drawing
Logistical data
Package size 1
20
Package size 1 GTIN code
6419410378731
Package size 1 weight
0.2406 kg
Downloadables
- Dimensional drawings media (ConnectSafe_KKL1X240TE_Dim.png)
- Brochures (Katko ConnectSafe Catalogue - Terminal Blocks and Cable Connectors EN)
- Brochures (Katko ConnectSafe Tuoteluettelo - Liittimet ja Kojeliittimet FI)
- DWG files (ConnectSafe_KKL1x240TE.zip)
- Installation manuals (KATKO_ConnectSafe_KKL_installation_manual_93_en.pdf)
