Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.
Technical data
Al (mm²)
16-50
Cu (mm²)
2,5-50
Depth
43 mm
ETIM Class
EC001284
E-number FI
1942106
GTIN
6419410378717
Height
32 mm
In Al
125.0
In Cu
125.0
Key size
Hex 5
Net weight
0.0478 kg
Product type
KKL1X50T1
Short product description
Cable connector KKL 1xAl/Cu 2,5-50mm2
Technical name
1x2,5-50mm² Al/Cu
Torque Al/Cu (Nm)
5 (2,5-16mm²) / 10 (25-50mm²)
Volume
0.0234 l
Width
17 mm

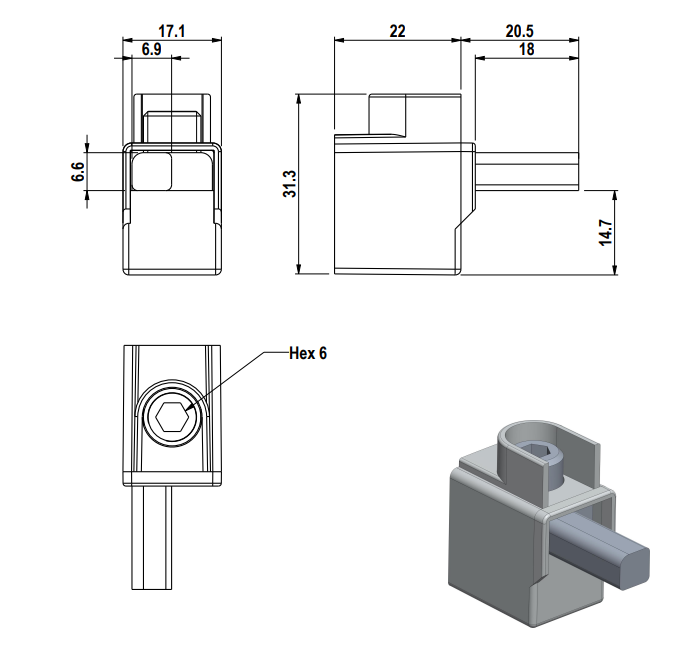

Dimensional drawing
Logistical data
Package size 1
12
Package size 1 GTIN code
6419410378717
Package size 1 weight
0.0478 kg
