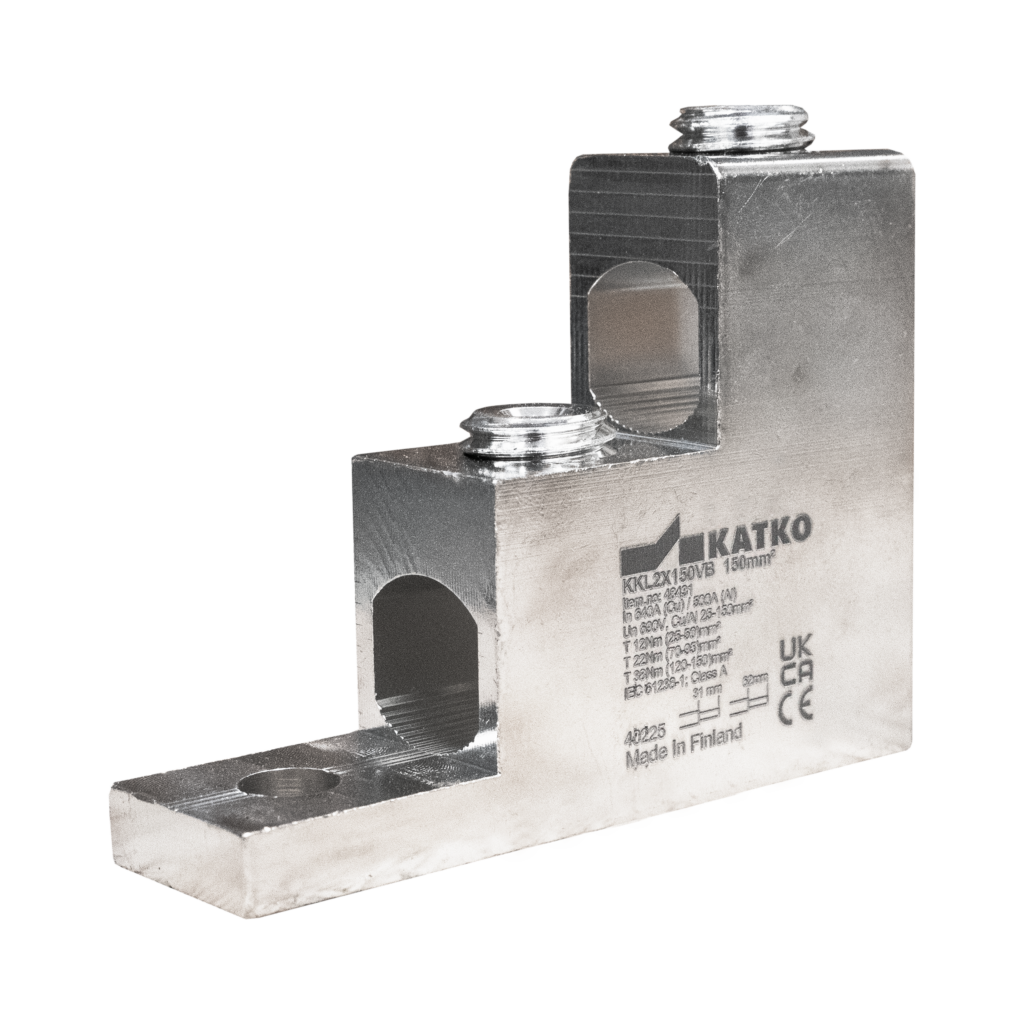

Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.
Technical data
Depth
71 mm
ETIM Class
EC000897
E-number FI
1942112
GTIN
6419410484319
Height
94.5 mm
In Al
500.0
In Cu
640.0
Key size
Hex 6
Net weight
0.3734 kg
Product type
KKL2X150VB
Short product description
Cable connector KKL 2xAl/Cu 25-150mm2
Torque Al/Cu (Nm)
12 (25-50 mm²) / 22 (70-95 mm²) / 38 (120-150 mm²)
Volume
0.1711 l
Width
25.5 mm

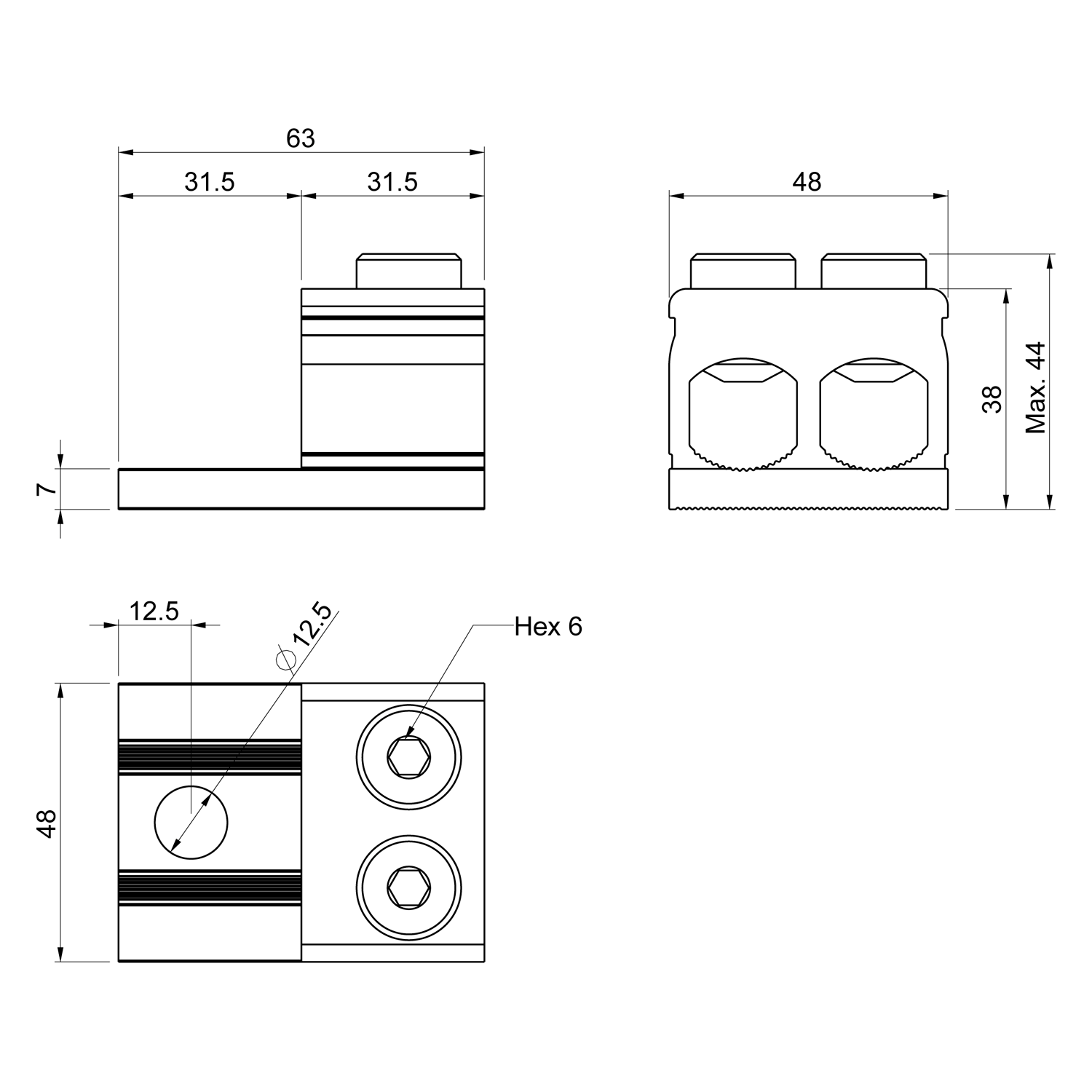

Dimensional drawing
Logistical data
Downloadables
- Dimensional drawings media (5511499cb2996136446cc9dbf71e9b89471c82ab_ConnectSafe_KKL2X150_Dim.png)
- Brochures (50486d1855d09e9df9591b2c53a0baf6b1cb2ced_KATKO_ConnectSafe_catalogue_062025_en.pdf)
- Brochures (fbb1e95859d8f104f7b3af702f3163b14f2614e3_KATKO_ConnectSafe_catalogue_082022_fi.pdf)
- Installation manuals (9ce61d2dc62192a5a0ae3e834c00b45879a7daa2_KATKO_ConnectSafe_KKL_installation_manual_93_en.pdf)
