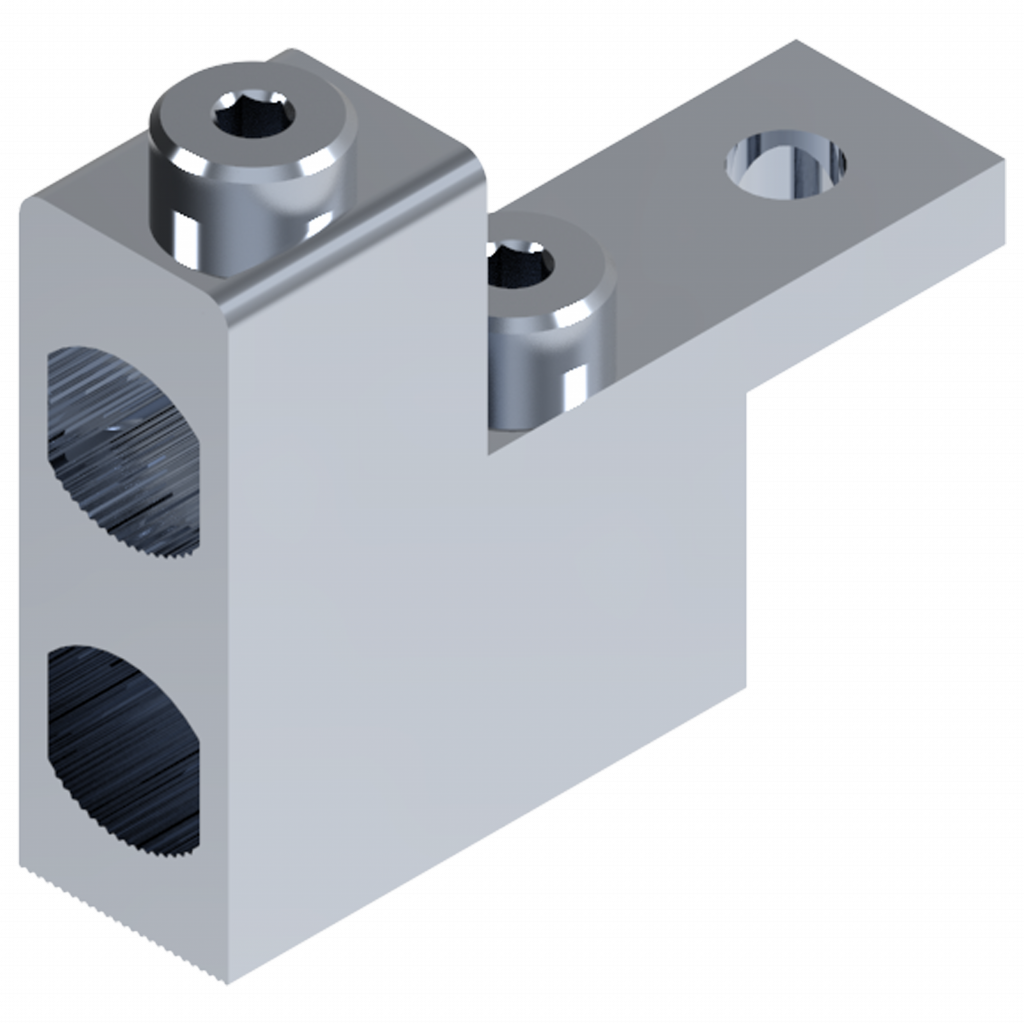

Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.
Product details and documents
Technical data
Depth
71 mm
ETIM Class
EC000897
E-number FI
1942111
GTIN
6419410484302
Height
94.5 mm
In Al
500.0
In Cu
640.0
Key size
Hex 6
Net weight
0.3734 kg
Product type
KKL2X150VM
Short product description
Cable connector KKL 2xAl/Cu 25-150mm2
Torque Al/Cu (Nm)
12 (25-50 mm²) / 22 (70-95 mm²) / 38 (120-150 mm²)
Volume
0.1711 l
Width
25.5 mm
No dimensional drawings available for this product.
Dimensional drawing
No dimensional drawings available for this product.
Logistical data
Downloadables
No downloadable files available for this product.
