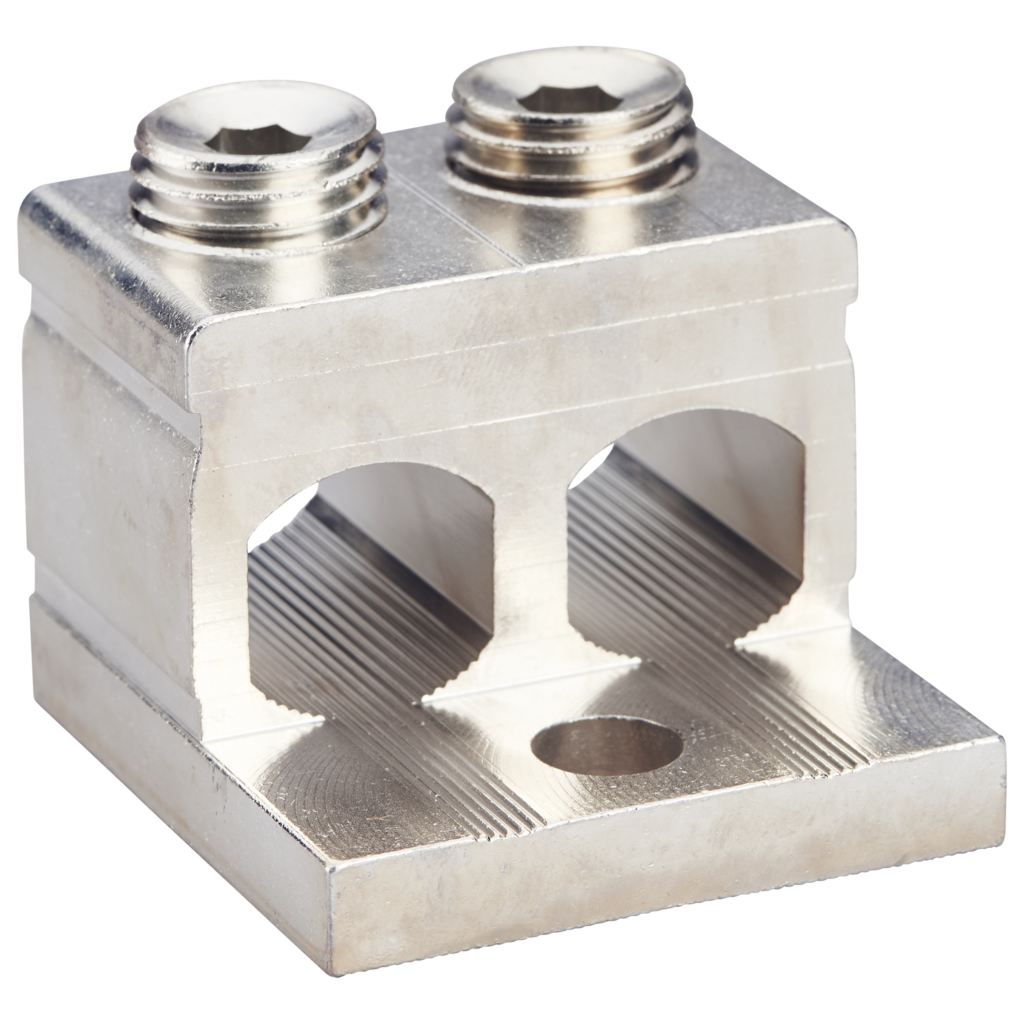

Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.
Technical data
Al (mm²)
35-240
Cu (mm²)
35-240
Depth
47 mm
ETIM Class
EC000897
E-number FI
1942094
GTIN
6419410378649
Height
65 mm
In Al
630.0
In Cu
850.0
Key size
Hex 8
Net weight
0.4861 kg
Product type
KKL2X240
Short product description
Cable connector KKL 2xAl/Cu 35-240mm2
Torque Al/Cu (Nm)
25 (35-120 mm²) / 55 (150-240 mm²)
Volume
0.1864 l
Width
61 mm

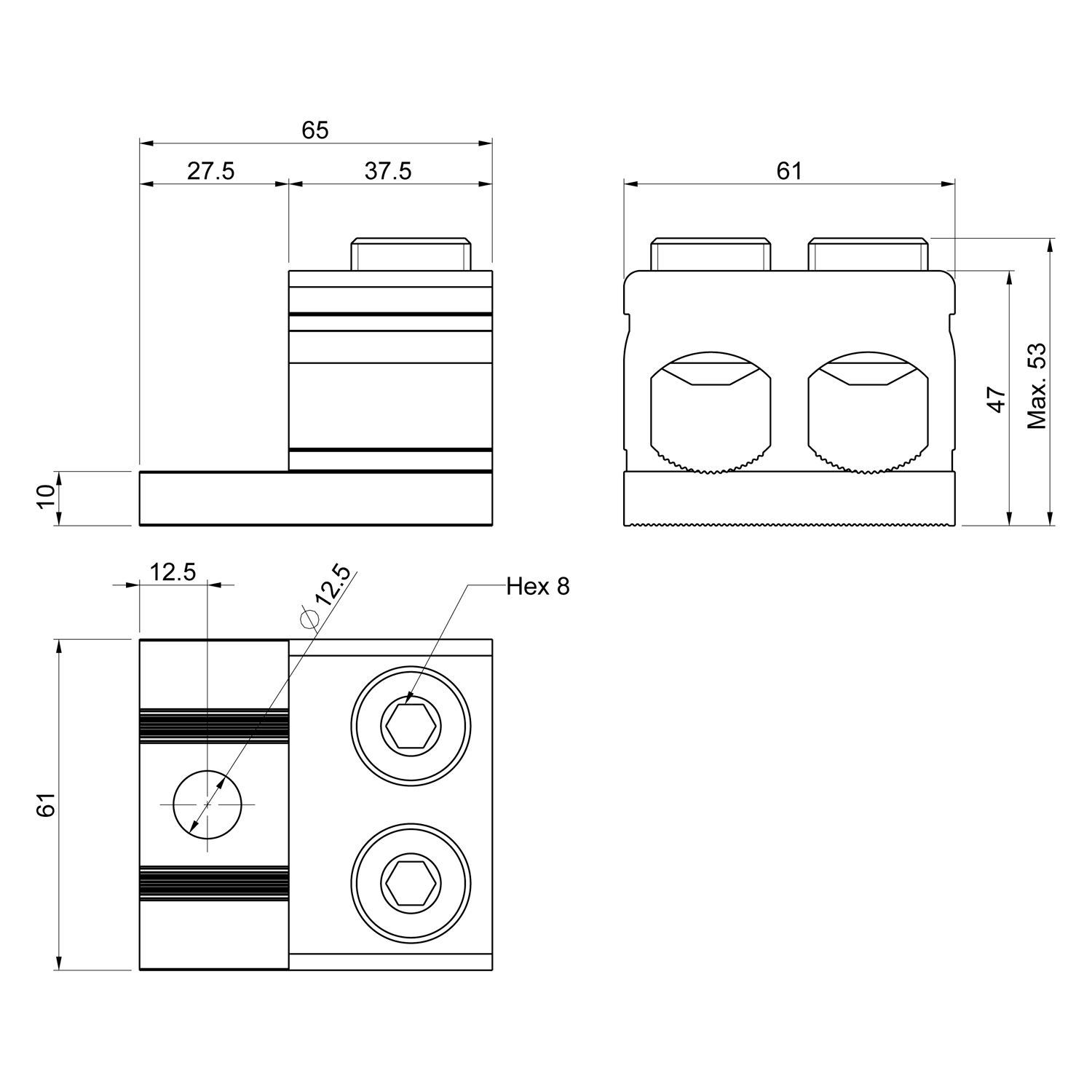

Dimensional drawing
Logistical data
Package size 1
16
Downloadables
- Dimensional drawings media (0ed8d8cf028233c50cf32ea81d40b85bc1f0bdab_ConnectSafe_KKL2X240_Dim.png)
- Brochures (50486d1855d09e9df9591b2c53a0baf6b1cb2ced_KATKO_ConnectSafe_catalogue_062025_en.pdf)
- Brochures (fbb1e95859d8f104f7b3af702f3163b14f2614e3_KATKO_ConnectSafe_catalogue_082022_fi.pdf)
- Installation manuals (9ce61d2dc62192a5a0ae3e834c00b45879a7daa2_KATKO_ConnectSafe_KKL_installation_manual_93_en.pdf)
