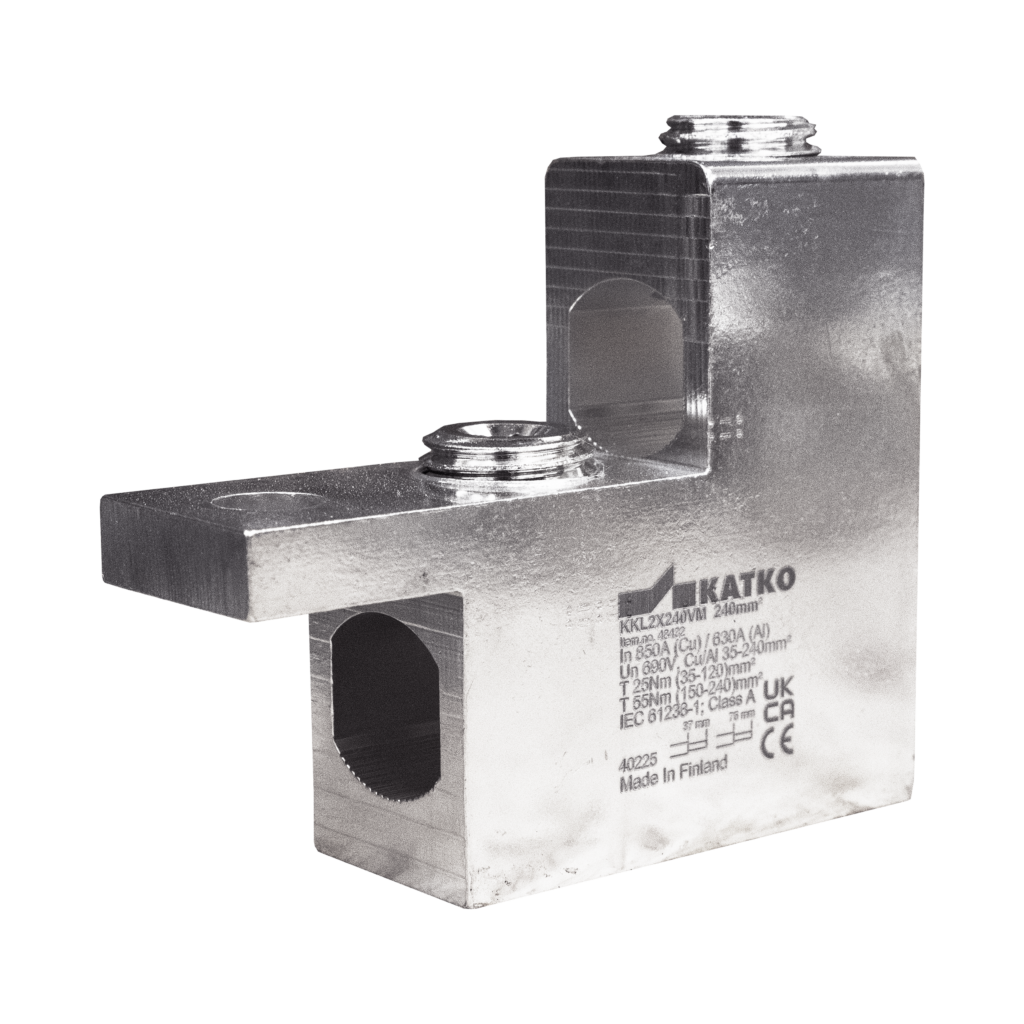

Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.
Technical data
Al (mm²)
35-240
Cu (mm²)
35-240
Depth
85 mm
ETIM Class
EC000897
E-number FI
1942113
GTIN
6419410484326
Height
102.5 mm
In Al
630.0
In Cu
850.0
Key size
Hex 8
Net weight
0.6008 kg
Product type
KKL2X240VM
Short product description
Cable connector KKL 2xAl/Cu 35-240mm2
Torque Al/Cu (Nm)
25 (35-120 mm²) / 40 (150-240 mm²)
Volume
0.2788 l
Width
32 mm
Dimensional drawing
Logistical data
Package size 1
3
Package size 1 GTIN code
6419410484326
Package size 1 weight
0.6008 kg
Downloadables
