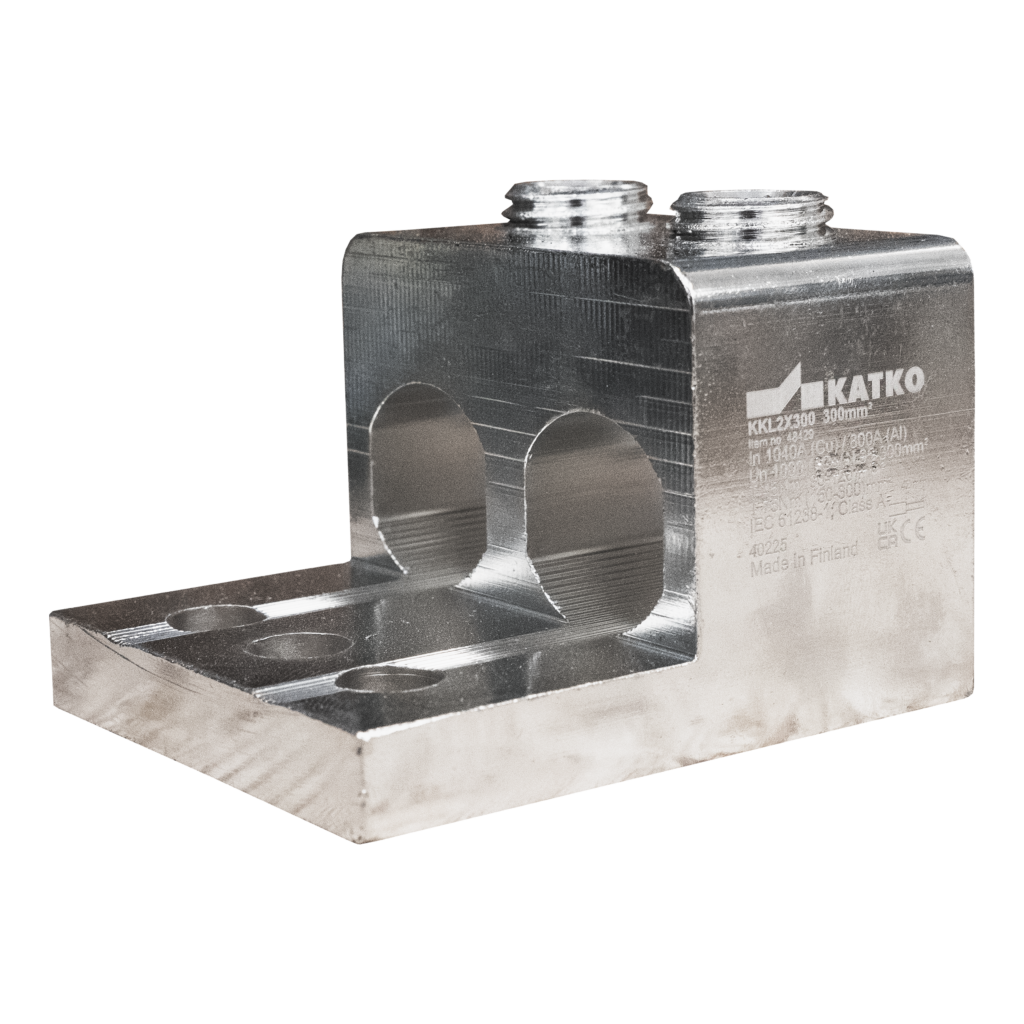

Cable connector KKL 2xAl/Cu 95-300mm2

KKL2X300

Cable connector KKL 2xAl/Cu 95-300mm2

Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.

E-number FI
In Cu
1 040
In Al
800
Pokaż kompletne dane

Product details and documents

Technical data

Depth
58 mm
ETIM Class
EC000897
E-number FI
1942110
GTIN
6419410484296
Height
92 mm
In Al
800.0
In Cu
1040.0
Key size
Hex 12
Net weight
0.892 kg
Product type
KKL2X300
Short product description
Cable connector KKL 2xAl/Cu 95-300mm2
Torque Al/Cu (Nm)
45 (95-120 mm²) / 75 (150-300 mm²)
Volume
0.4002 l
Width
75 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Downloadables

    No downloadable files available for this product.

    Not finding what you're looking for? We're here to help!

    We can assist you with technical support, quote or tailoring options for this product
