Katko ConnectSafe cable connectors are compact and reliable connectors designed for secure cable termination. Supporting a wide range of conductor sizes, they enable fast installation, excellent electrical contact and space-efficient designs. These connectors are ideal for professional electrical installations where reliability and clarity are essential.
Technical data
Al (mm²)
16-50
Cu (mm²)
16-50
Depth
20 mm
ETIM Class
EC000897
E-number FI
1942088
GTIN
6419410378588
Height
42 mm
In Al
200.0
In Cu
320.0
Key size
Hex 5
Net weight
0.0606 kg
Product type
KKL2X50
Short product description

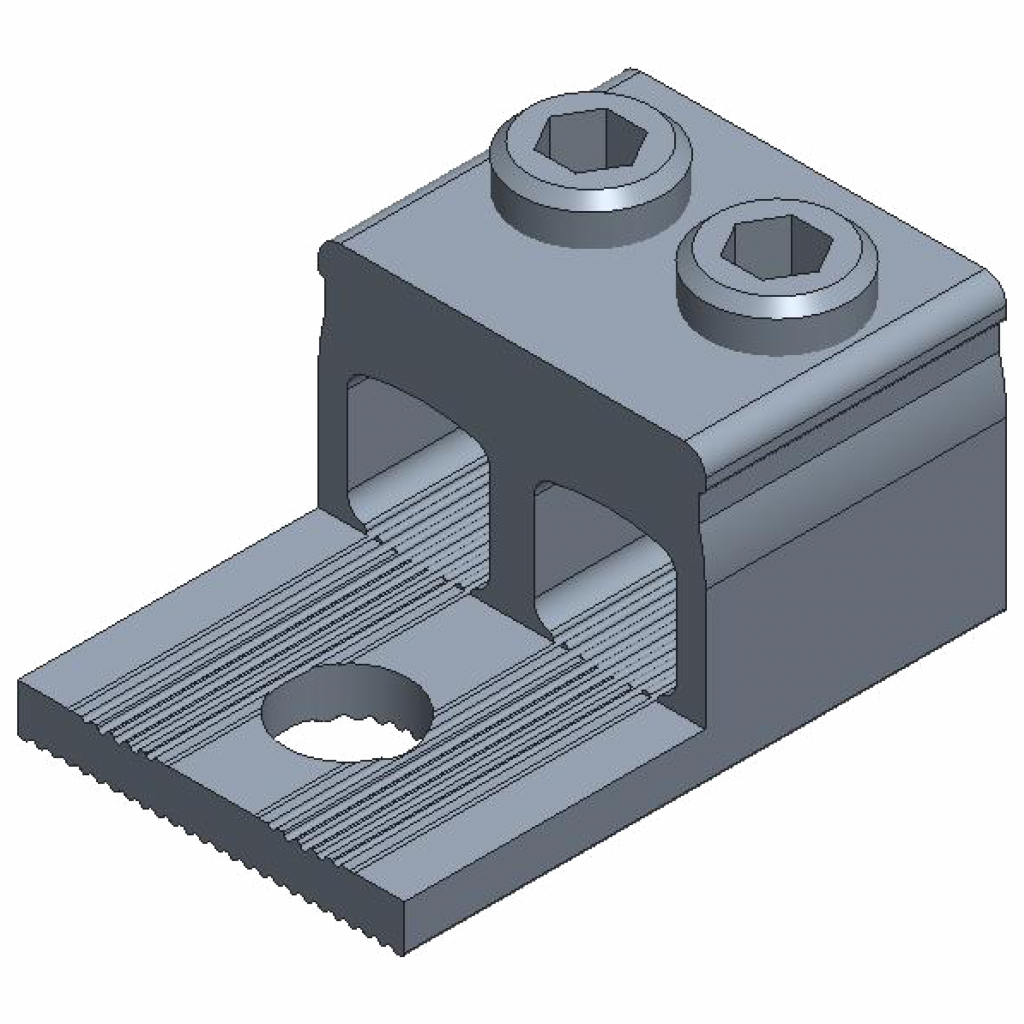

Cable connector KKL 1xAl/Cu 2,5-50mm2
Torque Al/Cu (Nm)
5 (2,5-16mm²) / 10 (25-50mm²)
Volume
0.0227 l
Width
27 mm

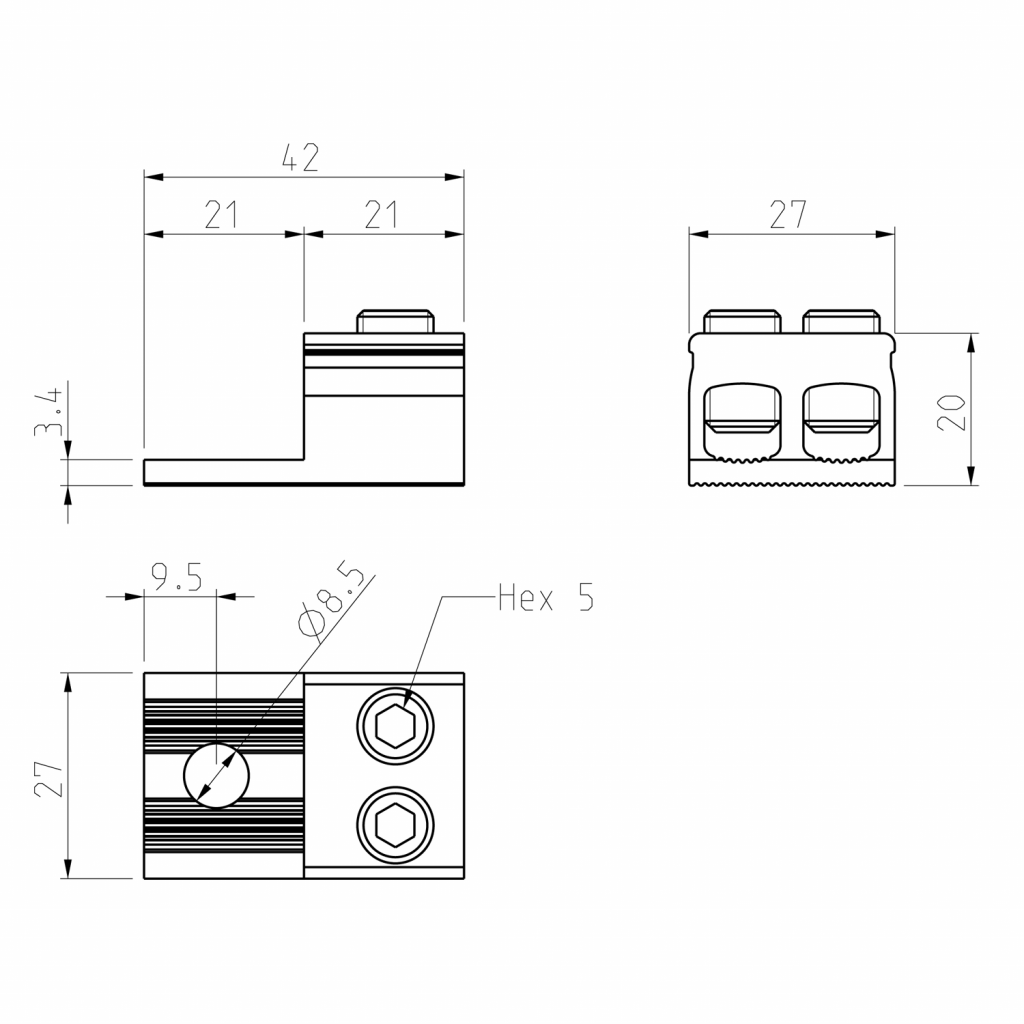

Dimensional drawing
Logistical data
Package size 1
12
Downloadables
- Dimensional drawings media (ce6eac2c76934ba5e6f59f9b074bb0de94e24df5_ConnectSafe_KKL2X50_Dim.png)
- Brochures (50486d1855d09e9df9591b2c53a0baf6b1cb2ced_KATKO_ConnectSafe_catalogue_062025_en.pdf)
- Brochures (fbb1e95859d8f104f7b3af702f3163b14f2614e3_KATKO_ConnectSafe_catalogue_082022_fi.pdf)
- Installation manuals (9ce61d2dc62192a5a0ae3e834c00b45879a7daa2_KATKO_ConnectSafe_KKL_installation_manual_93_en.pdf)
