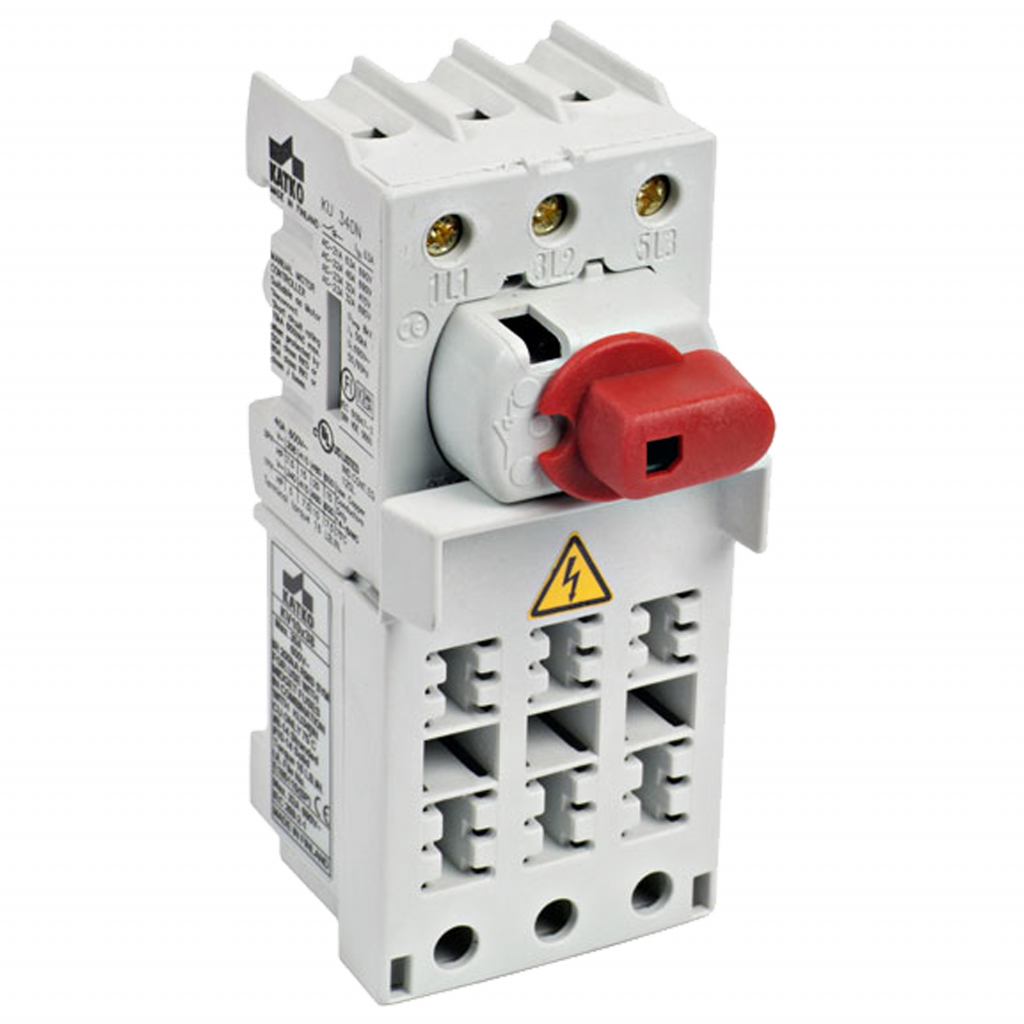

KKV 332CC

Switch fuse 3x32A for CC class fuse

KKV 332CC

Katko FuseSafe switch fuses combine reliable switching and fuse protection in a compact solution for professional electrical installations. They are commonly used in power distribution boards, control panels, industrial installations, machinery supplies and infrastructure applications where safety and clarity are essential.

With a modular design, durable construction and integrated fuse covers, FuseSafe switch fuses offer a space-saving and dependable choice for demanding electrical environments.

Numer produktu
21281
Rated operational current AC-22A 415V (A)
30
Rated operational current AC-22A 690V (A)
30
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

GTIN
6419410212813
Ampere rating 600V
32.0
Depth
125 mm
ETIM Class
EC001040
Height
74 mm
HP 208V
7.5
HP 240V
0.0
HP 415V
7.5
HP 480V
20.0
HP 600V
15.0
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Net weight
0.3282 kg
Nom. values w/cable size (mm²)
6
Number of poles
3
Product type
KKV 332CC
Rated breaking cap. ICN AC-23A 415V (A)
256
Rated breaking cap. ICN AC-23A 500V (A)
256
Rated fused short-ckt current back-up fuse opt 1 (A)
40
Rated fused short-ckt current peak value (kA)
6
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
600
Rated operational current AC-21A 415V (A)
30
Rated operational current AC-21A 500V (A)
30
Rated operational current AC-21A 690V (A)
30
Rated operational current AC-22A 415V (A)
30
Rated operational current AC-22A 500V (A)
30
Rated operational current AC-22A 690V (A)
30
Rated operational current AC-23A 415V (A)
30
Rated operational current AC-23A 500V (A)
30
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
22
Rated short-ckt. making cap. Icm 690V (kA)
2.5
Rated short-time withstand current 1s Icw 690V (kA)
1.7
Rated therm. current Ith (A)
30
Short product description
Switch fuse 3x32A for CC class fuse
Switch type
Switch Fuse
Terminals bolt size (Cu mm²)
1,5..16
UL
UL 60947-4-1A
Volume
0.5365 l
Width
58 mm
Wire size Cu
14-8 AWG

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
125 mm
Package size 1 GTIN code
6419410212813
Package size 1 height
74 mm
Package size 1 volume
0.5365 l
Package size 1 weight
0.3282 kg
Package size 1 width
58 mm
Sales unit
1
