Katko ConnectSafe terminal blocks provide safe and reliable electrical connections for demanding industrial and building applications. Suitable for both copper and aluminum conductors, they are available with screw and DIN-rail mounting options, enabling fast and easy installation. Their robust construction and clear design ensure long service life and trouble-free operation. ConnectSafe terminals meet high industry standards and international approvals, delivering dependable performance for professional use.
Technical data
Depth
31.5 mm
ETIM Class
EC000897
E-number FI
1942120
GTIN
6419410484364
Height
46.7 mm
In Al
75.0
In Cu
76.0
Key size
Hex 4
Net weight
0.02 kg
Product type
KL1X16
Short product description

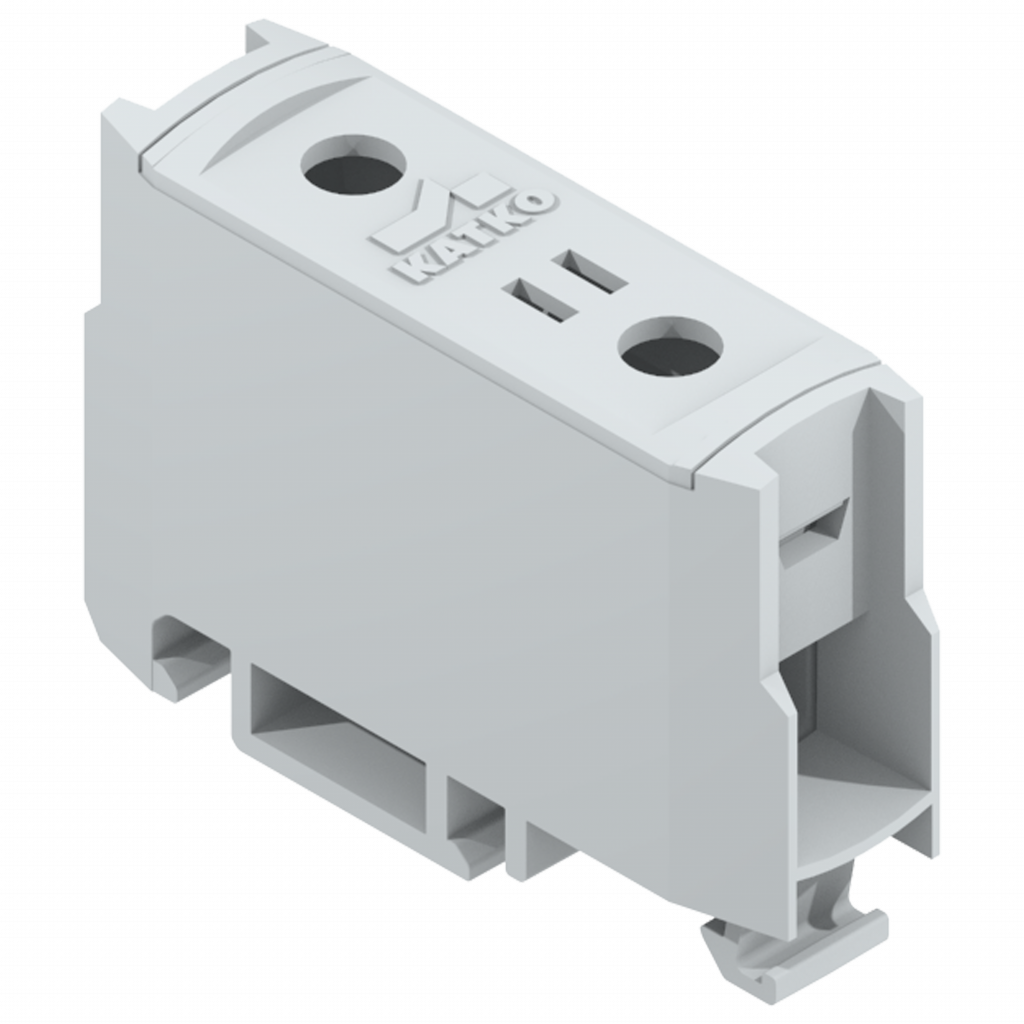

Terminal block KL 1xAl/Cu 1,5-16mm2 Grey
Torque Al/Cu (Nm)
5
Volume
0.0197 l
Width
13.4 mm
Dimensional drawing
Logistical data
Downloadables
- Dimensional drawings media (c7d5cbb7b3b1cb5e5f746cbf95d5b714cc7b7ddf_ConnectSafe_KL1X16_Dim.png)
- Brochures (50486d1855d09e9df9591b2c53a0baf6b1cb2ced_KATKO_ConnectSafe_catalogue_062025_en.pdf)
- Brochures (fbb1e95859d8f104f7b3af702f3163b14f2614e3_KATKO_ConnectSafe_catalogue_082022_fi.pdf)
- Installation manuals (d76d0df9e9d0939dc3ea2fc10abb55624b07eeb7_KATKO_ConnectSafe_KL_range_installation_manual_79_en.pdf)
- Installation manuals (4e099431959ac9ca14dfb59b5c2c701c094aa599_KATKO_ConnectSafe_KL_range_installation_manual_79_fi.pdf)
- Installation manuals (97485a91d550fe88b9f0e3c64055d864dcacaa7b_KATKO_ConnectSafe_KL1X16_KL5X1X16_installation_manual_88_en.pdf)
