KL1X240

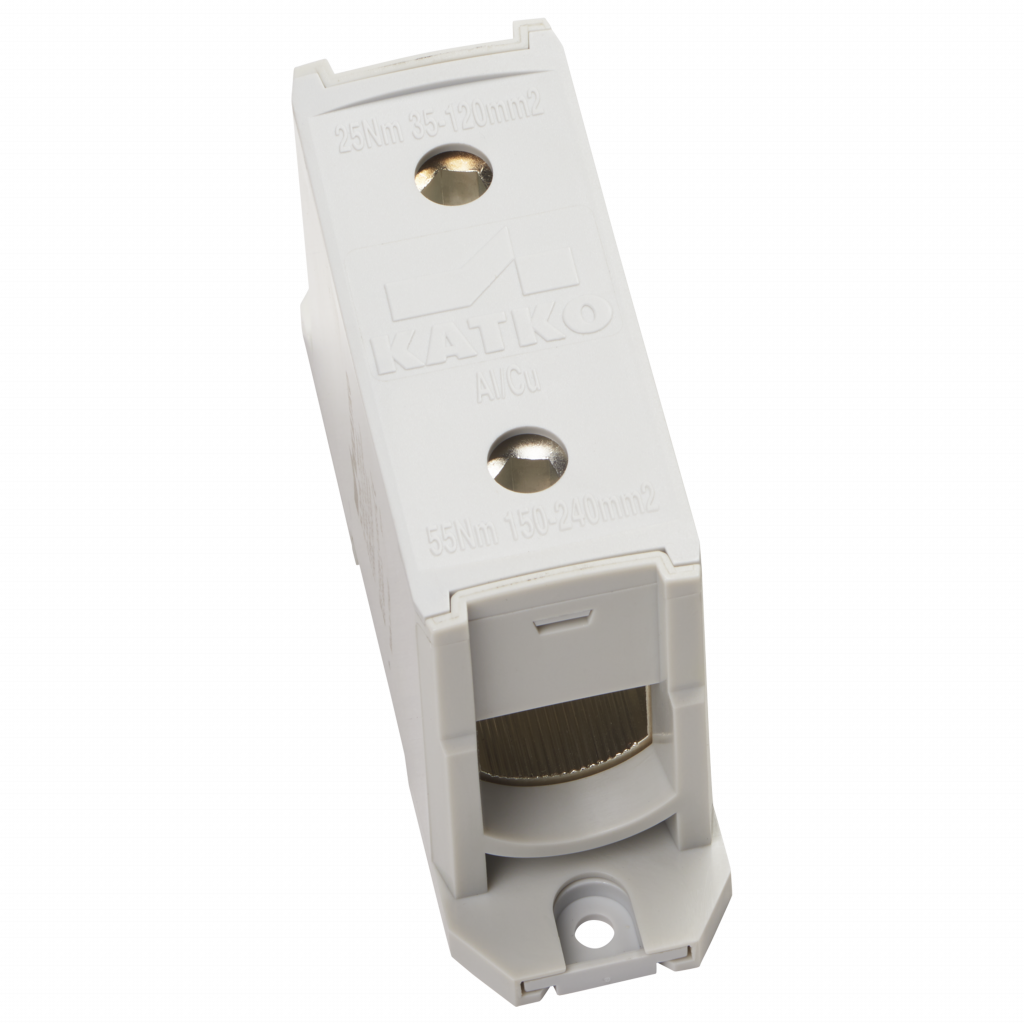

Terminal block KL 1xAl/Cu 35-240mm2 Grey

KL1X240

Katko ConnectSafe terminal blocks provide safe and reliable electrical connections for demanding industrial and building applications. Suitable for both copper and aluminum conductors, they are available with screw and DIN-rail mounting options, enabling fast and easy installation. Their robust construction and clear design ensure long service life and trouble-free operation. ConnectSafe terminals meet high industry standards and international approvals, delivering dependable performance for professional use.

Numer produktu
37843
E-number FI
1942073
In Cu
425
In Al
315
Cu (mm²)
35-240
Al (mm²)
35-240
Package size 1
14
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

GTIN
6419410378434
Al (mm²)
35-240
Ampere Al
310.0
Ampere Cu
380.0
Cu (mm²)
35-240
Depth
67 mm
ETIM Class
EC000897
E-number FI
1942073
Height
92 mm
In Al
315.0
In Cu
425.0
Key size
Hex 8
Line load wire size
500 - 3/0
Net weight
0.3999 kg
Nominal voltage
1000V AC / 1500V DC
Product type
KL1X240
Short product description
Terminal block KL 1xAl/Cu 35-240mm2 Grey
Torque Al/Cu (lb-in)
220 (250 kcmil - 3/0 AWG) / 490 (500 - 300 kcmil)
Torque Al/Cu (Nm)
25 (35 - 120 mm²) / 55 (150 - 240 mm²)
UL
UL 1059, CAN/CSA C22.2 No. 158-10
Volume
0.2281 l
Width
37 mm

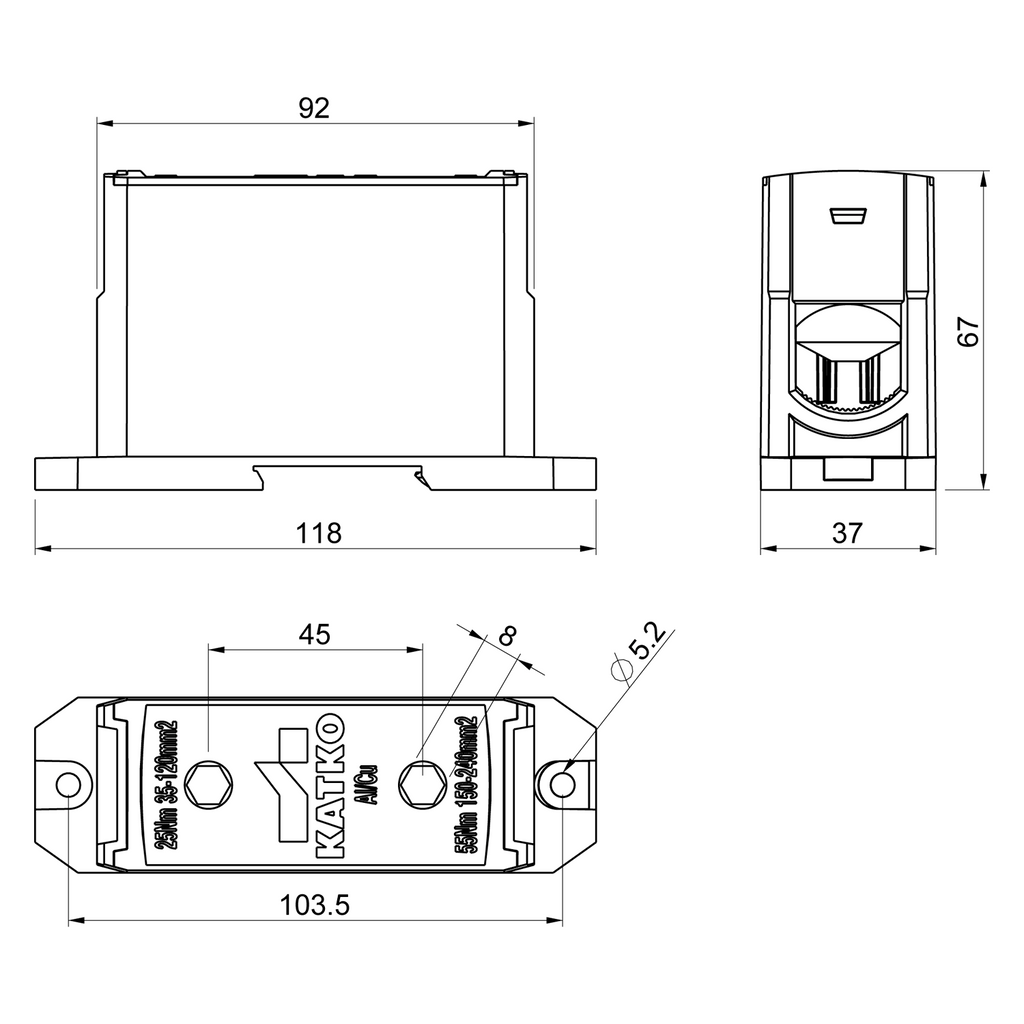

Dimensional drawing

Logistical data

Package size 1
14
Package size 1 GTIN code
6419410378434
Package size 1 weight
0.3999 kg

Downloadables

Unlock content

We continuously improve our products; specifications, features and appearances may change without prior notice.
