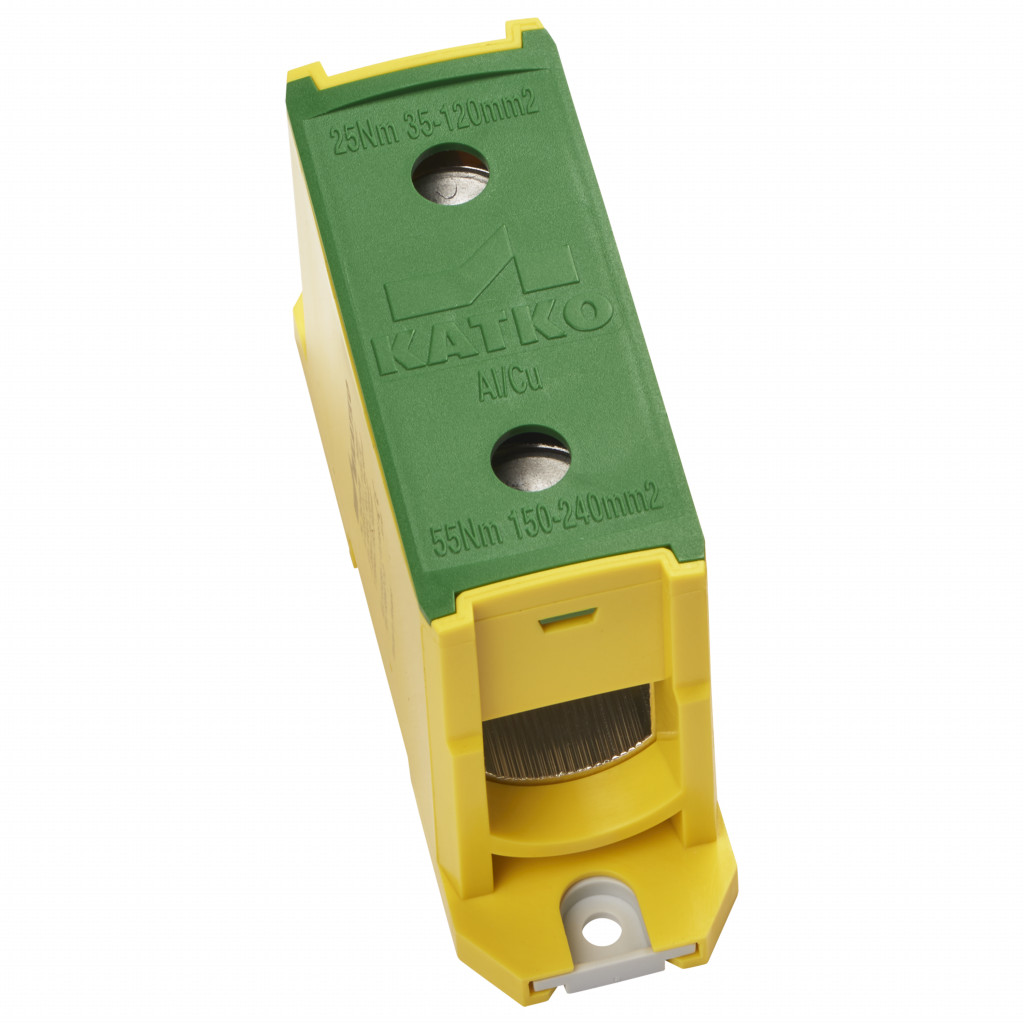

Terminal block KL 1xAl/Cu 35-240mm2 Yellow/Green

KL1X240PE

Terminal block KL 1xAl/Cu 35-240mm2 Yellow/Green

Katko ConnectSafe terminal blocks provide safe and reliable electrical connections for demanding industrial and building applications. Suitable for both copper and aluminum conductors, they are available with screw and DIN-rail mounting options, enabling fast and easy installation. Their robust construction and clear design ensure long service life and trouble-free operation. ConnectSafe terminals meet high industry standards and international approvals, delivering dependable performance for professional use.

E-number FI
1942075
In Cu
425
In Al
315
Pokaż kompletne dane

Product details and documents

Technical data

Depth
67 mm
ETIM Class
EC000897
E-number FI
1942075
GTIN
6419410378458
Height
92 mm
In Al
315.0
In Cu
425.0
Key size
Hex 8
Net weight
0.3999 kg
Product type
KL1X240PE
Short product description
Terminal block KL 1xAl/Cu 35-240mm2 Yellow/Green
Torque Al/Cu (Nm)
25 (35 - 120 mm²) / 55 (150 - 240 mm²)
Volume
0.2281 l
Width
37 mm

No dimensional drawings available for this product.

Dimensional drawing

No dimensional drawings available for this product.

Logistical data

Downloadables

    No downloadable files available for this product.
