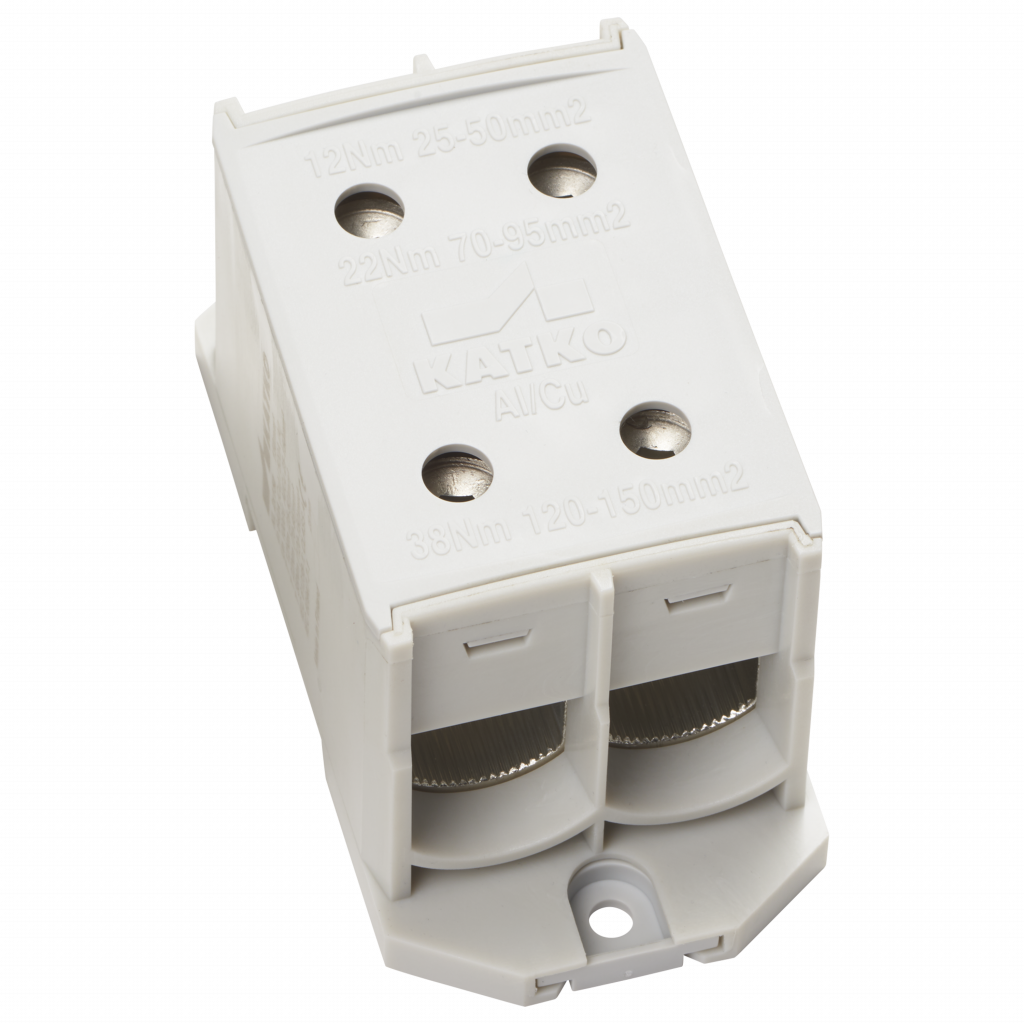

Katko ConnectSafe terminal blocks provide safe and reliable electrical connections for demanding industrial and building applications. Suitable for both copper and aluminum conductors, they are available with screw and DIN-rail mounting options, enabling fast and easy installation. Their robust construction and clear design ensure long service life and trouble-free operation. ConnectSafe terminals meet high industry standards and international approvals, delivering dependable performance for professional use.
Technical data
Ampere Al
460.0
Ampere Cu
570.0
Depth
57 mm
ETIM Class
EC000897
E-number FI
1942058
GTIN
6419410378403
Height
80 mm
In Al
500.0
In Cu
640.0
Key size
Hex 6
Line load wire size
300 - 2
Net weight
0.3725 kg
Product type
KL2X150
Short product description
Terminal block KL 2xAl/Cu 25-150mm2 Grey
Torque Al/Cu (lb-in)
110 (1/0 - 2 AWG) / 200 (4/0 - 2/0 AWG) / 340 (300 - 250 kcmil)
Torque Al/Cu (Nm)
12 (25 - 50 mm²) / 22 (70 - 95 mm²) / 38 (120 - 150 mm²)
UL
UL 1059, CAN/CSA C22.2 No. 158-10
Volume
0.2371 l
Width
52 mm

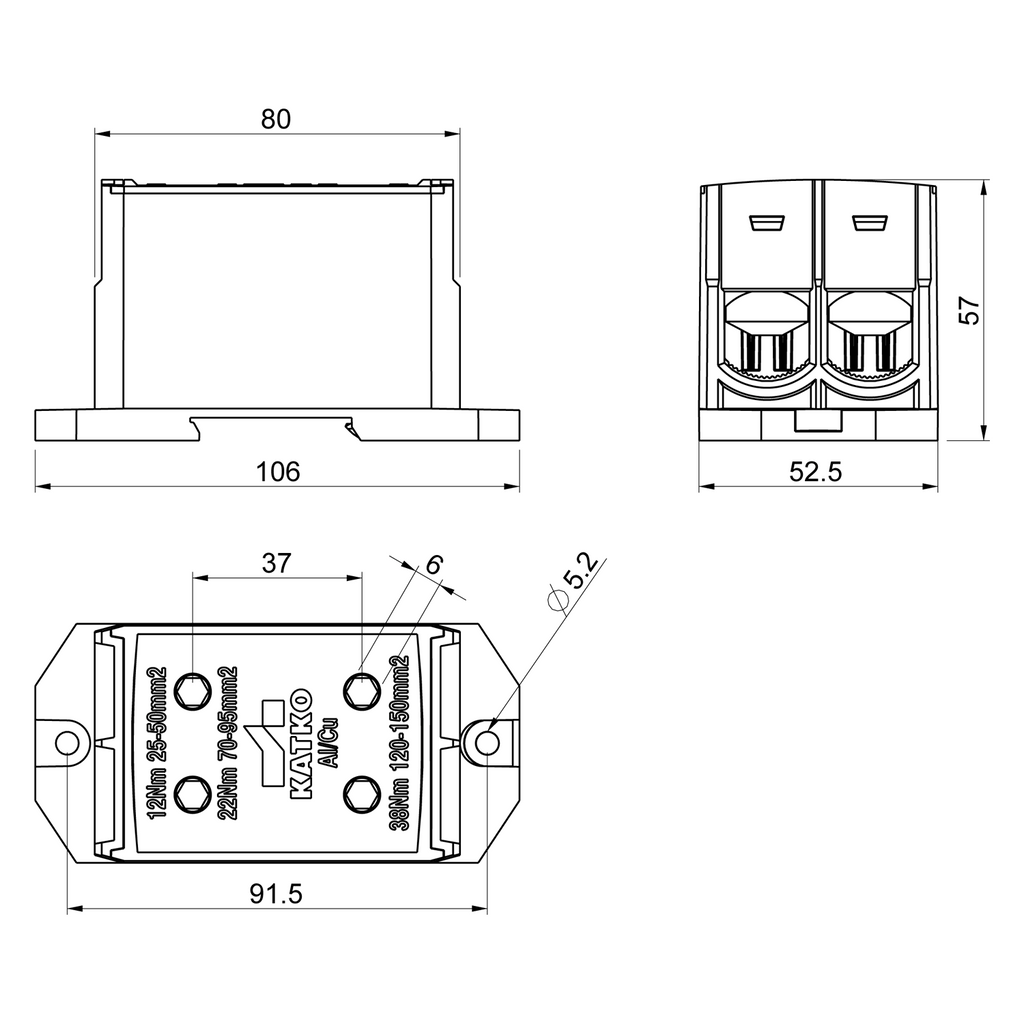

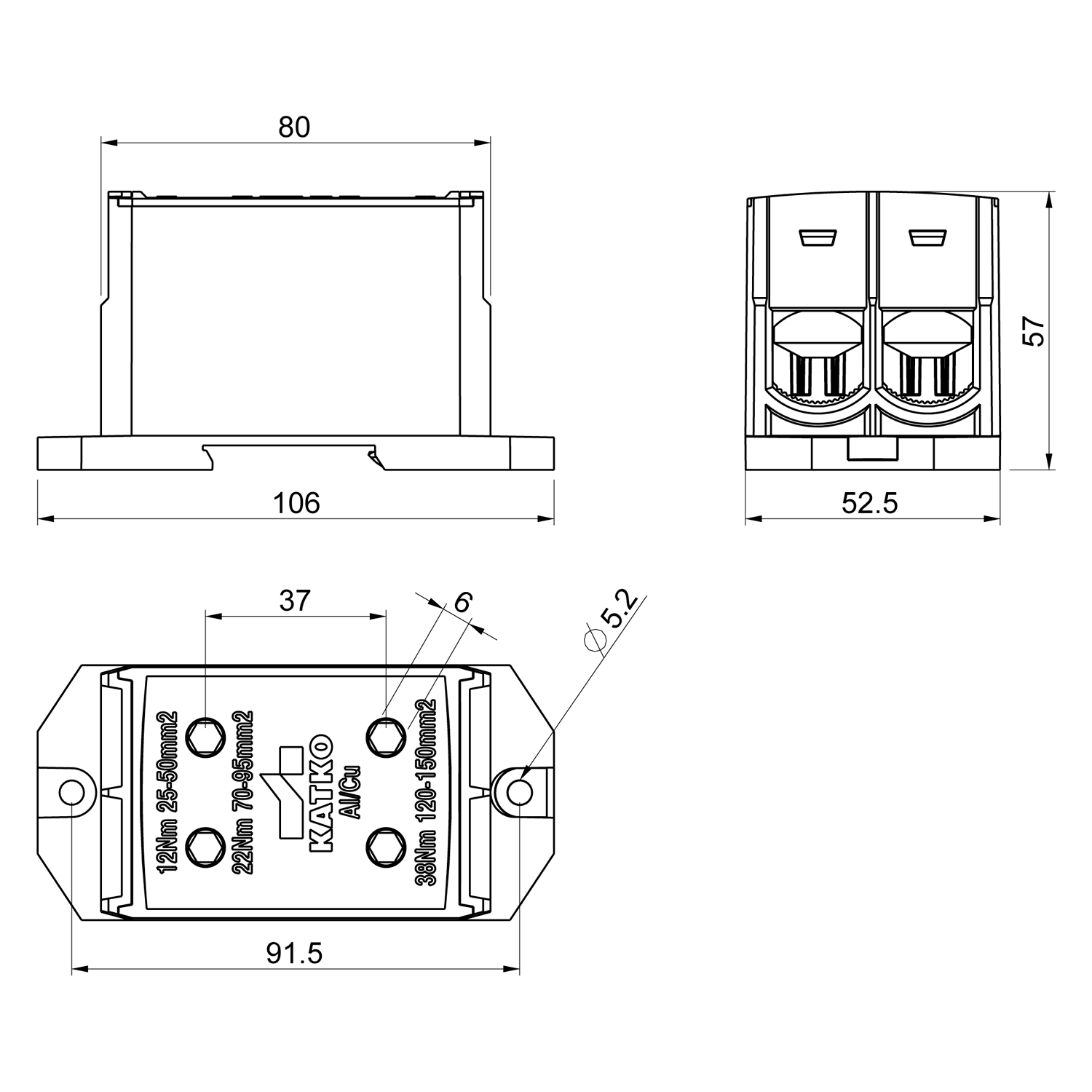

Dimensional drawing
Logistical data
Downloadables
- Dimensional drawings media (ed806763c6dfee38bc618e995a069512b5adc54c_ConnectSafe_KL2X150_Dim.png)
- Brochures (50486d1855d09e9df9591b2c53a0baf6b1cb2ced_KATKO_ConnectSafe_catalogue_062025_en.pdf)
- Brochures (fbb1e95859d8f104f7b3af702f3163b14f2614e3_KATKO_ConnectSafe_catalogue_082022_fi.pdf)
- Installation manuals (d76d0df9e9d0939dc3ea2fc10abb55624b07eeb7_KATKO_ConnectSafe_KL_range_installation_manual_79_en.pdf)
- Installation manuals (4e099431959ac9ca14dfb59b5c2c701c094aa599_KATKO_ConnectSafe_KL_range_installation_manual_79_fi.pdf)
- Installation manuals (3973eaae36aadba63f3b4040e2d2beb0e5306431_KATKO_ConnectSafe_KL2X150_KL2X240_installation_manual_79_en.pdf)
- Installation manuals (9591472ae0a6b78a5bde5de4d6de64fd5db8e82a_KATKO_ConnectSafe_KL2X150_KL2X240_installation_manual_79_fi.pdf)
- Installation manuals (0b66e2442a18726be5785595fe144ac8d6217a20_KATKO_ConnectSafe_KL2X150_KL2X240_UL_installation_manual_84.pdf)
