KL2X150PE

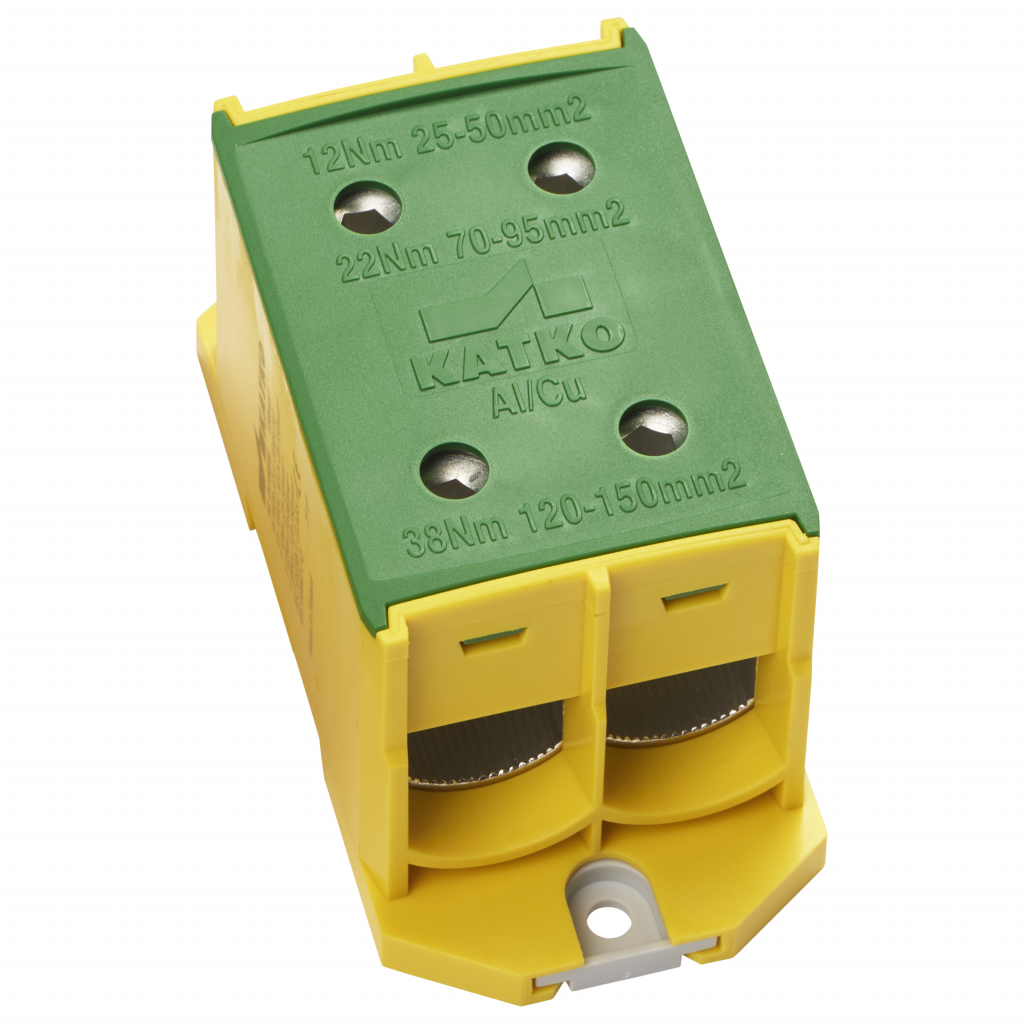

Terminal block KL 2xAl/Cu 25-150mm2 Yellow/Green

KL2X150PE

Katko ConnectSafe terminal blocks provide safe and reliable electrical connections for demanding industrial and building applications. Suitable for both copper and aluminum conductors, they are available with screw and DIN-rail mounting options, enabling fast and easy installation. Their robust construction and clear design ensure long service life and trouble-free operation. ConnectSafe terminals meet high industry standards and international approvals, delivering dependable performance for professional use.

E-number FI
1942060
In Cu
640
In Al
500
Cu (mm²)
25-150
Al (mm²)
25-150

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Al (mm²)
25-150
Cu (mm²)
25-150
Depth
57 mm
ETIM Class
EC000897
E-number FI
1942060
GTIN
6419410378427
Height
80 mm
In Al
500.0
In Cu
640.0
Key size
Hex 6
Net weight
0.3725 kg
Nominal voltage
1000V AC / 1500V DC
Product type
KL2X150PE
Short product description
Terminal block KL 2xAl/Cu 25-150mm2 Yellow/Green
Torque Al/Cu (Nm)
12 (25 - 50 mm²) / 22 (70 - 95 mm²) / 38 (120 - 150 mm²)
Volume
0.2371 l
Width
52 mm

Dimensional drawing

Logistical data

Package size 1
10
Package size 1 GTIN code
6419410378427
Package size 1 weight
0.3725 kg
