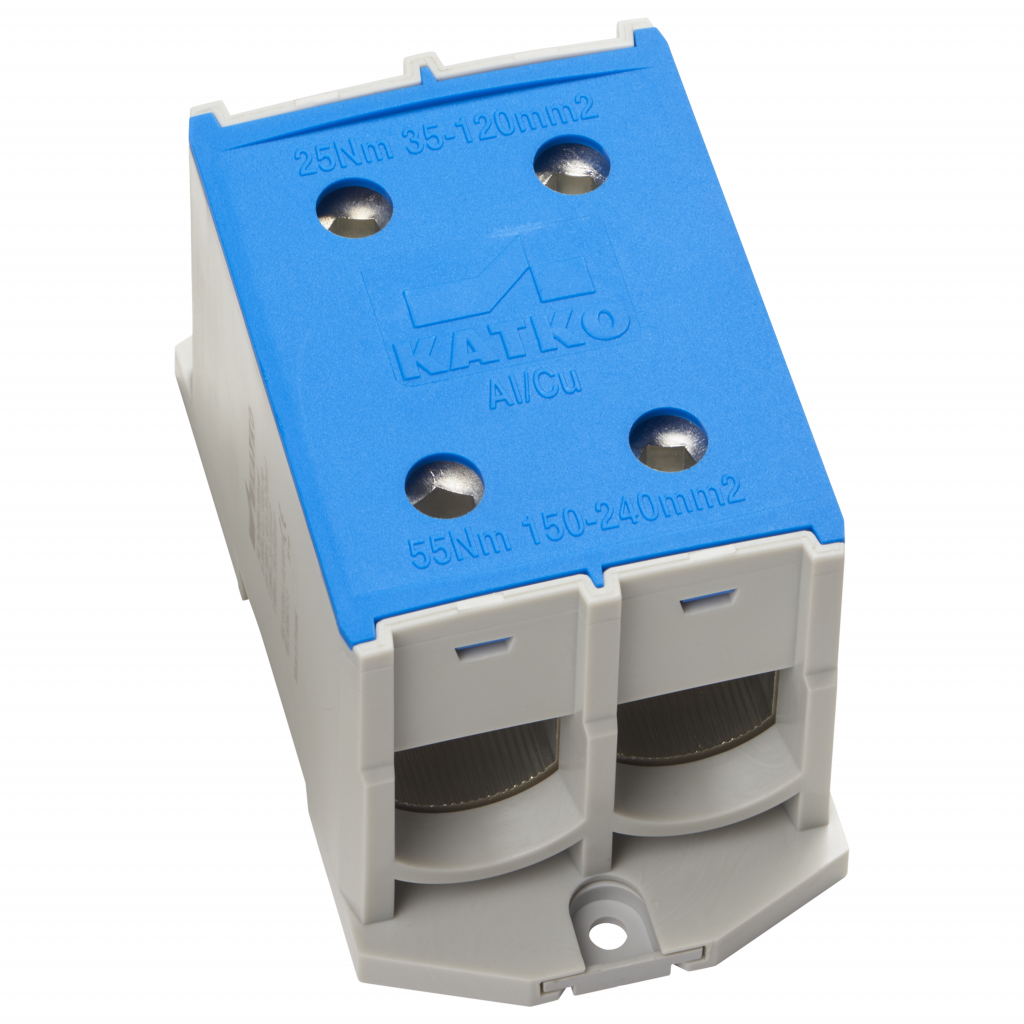

KL2X240N

Terminal block KL 2xAl/Cu 35-240mm2 Blue

KL2X240N

Katko ConnectSafe terminal blocks provide safe and reliable electrical connections for demanding industrial and building applications. Suitable for both copper and aluminum conductors, they are available with screw and DIN-rail mounting options, enabling fast and easy installation. Their robust construction and clear design ensure long service life and trouble-free operation. ConnectSafe terminals meet high industry standards and international approvals, delivering dependable performance for professional use.

Numer produktu
37847
E-number FI
1942077
In Cu
850
In Al
630
Cu (mm²)
35-240
Al (mm²)
35-240
Package size 1
8
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Al (mm²)
35-240
Ampere Al
620.0
Ampere Cu
760.0
Cu (mm²)
35-240
delivery_time
10
Depth
67 mm
ETIM Class
EC000897
E-number FI
1942077
GTIN
6419410378472
Height
92 mm
In Al
630.0
In Cu
850.0
Key size
Hex 8
Line load wire size
500 - 3/0
Net weight
0.6289 kg
Nominal voltage
1000V AC / 1500V DC
Product type
KL2X240N
Short product description
Terminal block KL 2xAl/Cu 35-240mm2 Blue
Torque Al/Cu (lb-in)
220 (250 kcmil - 3/0 AWG) / 490 (500 - 300 kcmil)
Torque Al/Cu (Nm)
25 (35 - 120 mm²) / 55 (150 - 240 mm²)
UL
UL 1059, CAN/CSA C22.2 No. 158-10
Volume
0.4068 l
Width
66 mm

Dimensional drawing

Logistical data

Package size 1
8
Package size 1 GTIN code
6419410378472
Package size 1 weight
0.6289 kg
