KL2X240P

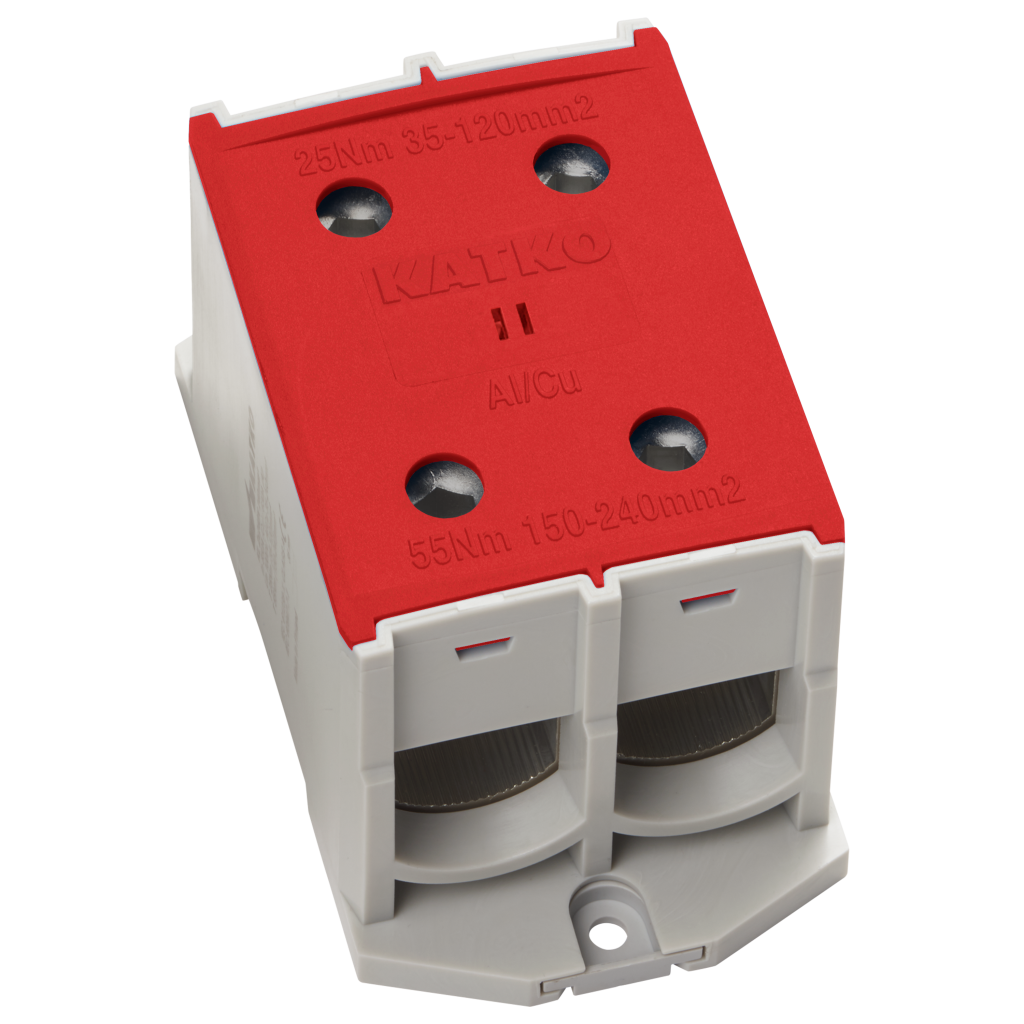

Terminal block KL 2xAl/Cu 35-240mm2 Red

KL2X240P

Katko ConnectSafe terminal blocks provide safe, reliable and durable electrical connections for industrial and building installations. Designed for aluminium and copper conductors, the range includes screw and DIN-rail mounted terminal blocks that ensure secure, maintenance-free connections and efficient installation. Robust construction and clear design support long service life and dependable performance in demanding electrical systems.

Numer produktu
33824
E-number FI
1942163
In Cu
850
In Al
630
Cu (mm²)
35-240
Al (mm²)
35-240
Package size 1
8
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Al (mm²)
35-240
Cu (mm²)
35-240
delivery_time
10
Depth
67 mm
ETIM Class
EC000897
E-number FI
1942163
GTIN
6419410338247
Height
92 mm
In Al
630.0
In Cu
850.0
Key size
Hex 8
Nominal voltage
1000V AC / 1500V DC
Product type
KL2X240P
Short product description
Terminal block KL 2xAl/Cu 35-240mm2 Red
Torque Al/Cu (Nm)
25 (35 - 120 mm²) / 55 (150 - 240 mm²)
Volume
0.4068 l
Width
66 mm

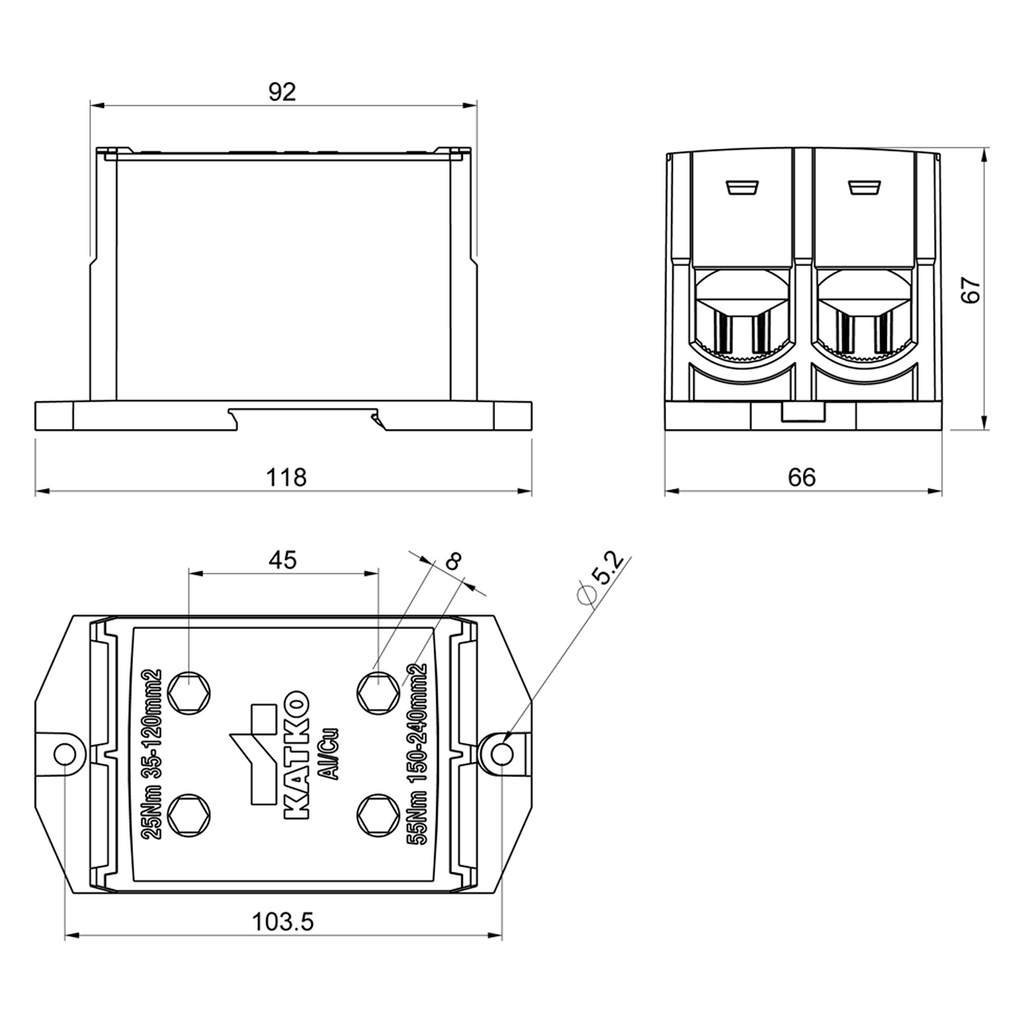

Dimensional drawing

Logistical data

Package size 1
8
Package size 1 GTIN code
6419410338247

Downloadables

Unlock content

We continuously improve our products; specifications, features and appearances may change without prior notice.
