Katko ConnectSafe terminal blocks provide safe, reliable and durable electrical connections for industrial and building installations. Designed for aluminium and copper conductors, the range includes screw and DIN-rail mounted terminal blocks that ensure secure, maintenance-free connections and efficient installation. Robust construction and clear design support long service life and dependable performance in demanding electrical systems.
Technical data
Al (mm²)
95-300
Cu (mm²)
95-300
Depth
83 mm
ETIM Class
EC000897
E-number FI
1942167
GTIN
6419410338285
Height
109 mm
In Al
800.0
In Cu
1040.0
Key size
Hex 12
Nominal voltage
1000V AC / 1500V DC
Product type
KL2X300P
Short product description

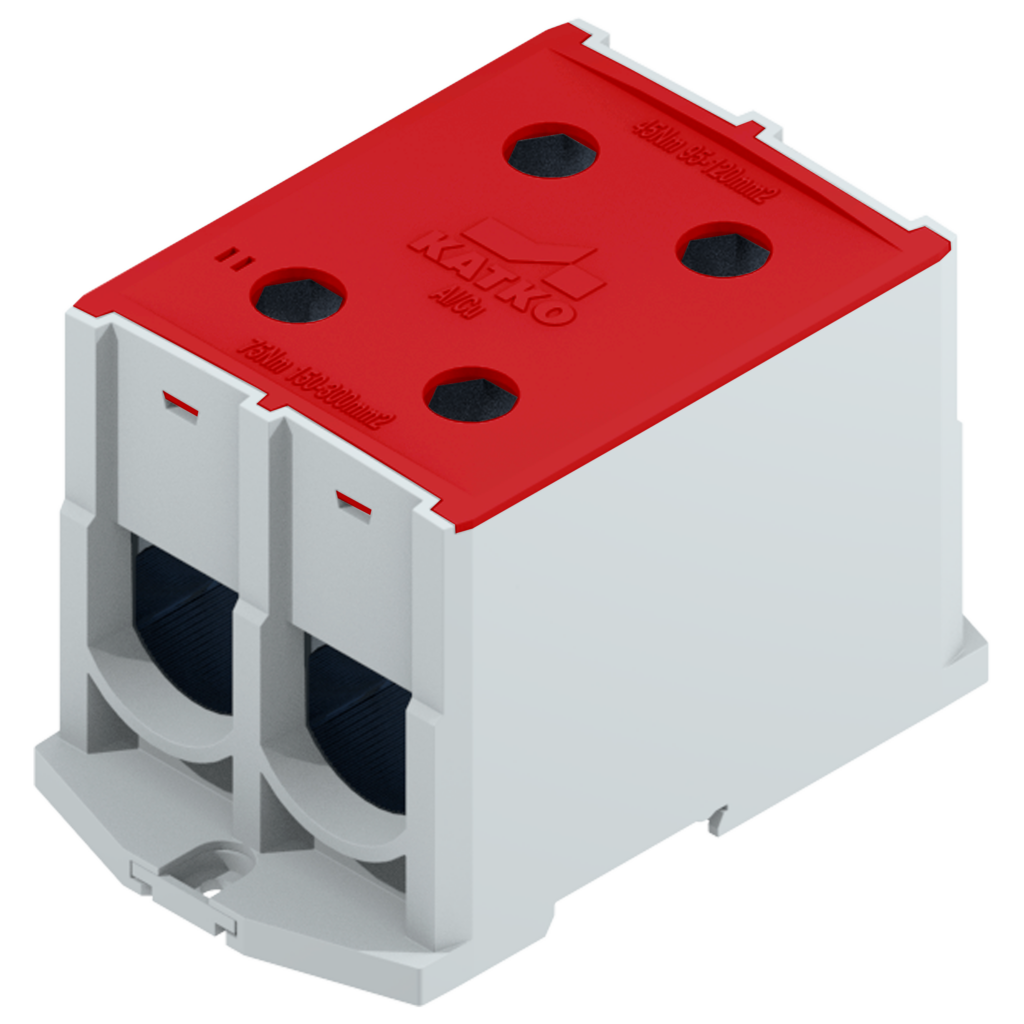

Terminal block KL 2xAl/Cu 95-300mm2 Red
Torque Al/Cu (Nm)
45 (95-120 mm²) / 75 (150-300 mm²)
Volume
0.7283 l
Width
80.5 mm

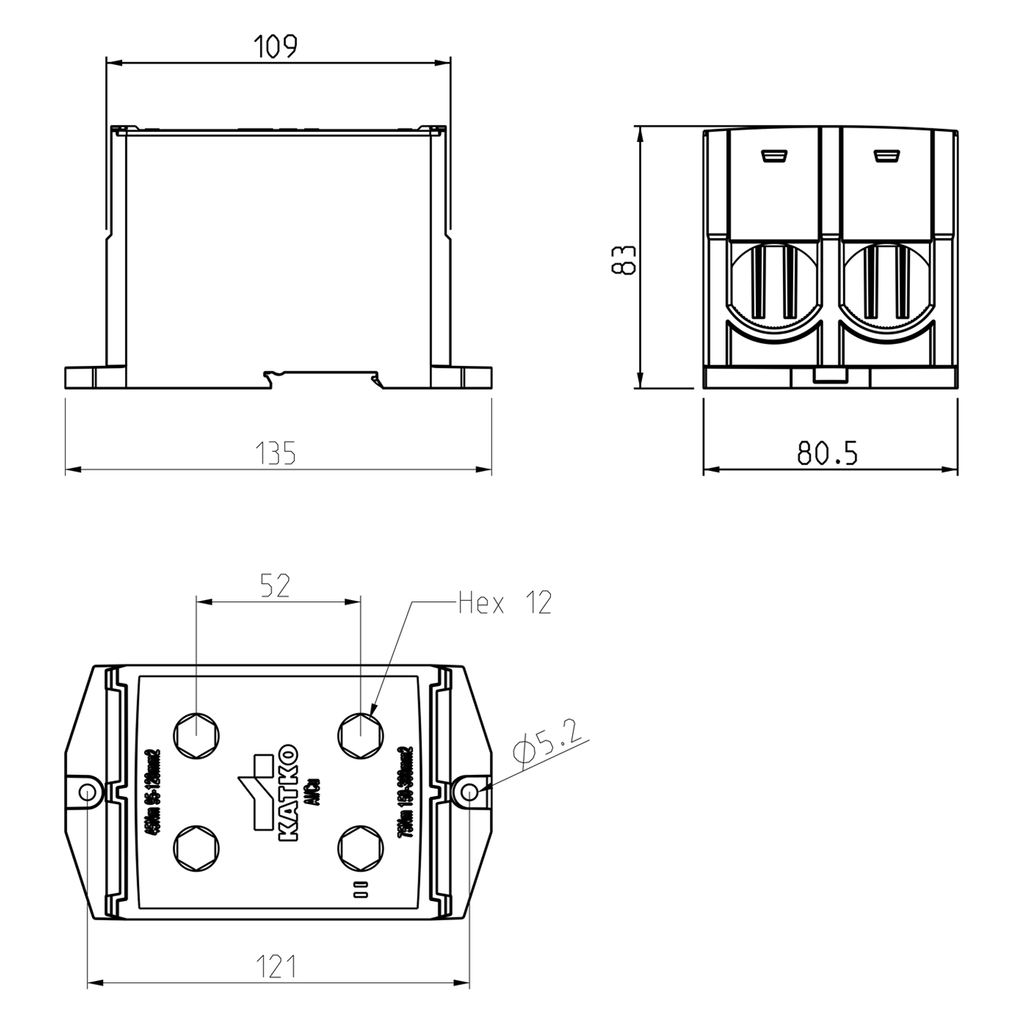

Dimensional drawing
Logistical data
Package size 1
6
Package size 1 GTIN code
6419410338285
Downloadables
- Dimensional drawings media (ConnectSafe_KL2X300_Dim.png)
- Brochures (Katko ConnectSafe Catalogue - Terminal Blocks and Cable Connectors EN)
- Brochures (Katko ConnectSafe Tuoteluettelo - Liittimet ja Kojeliittimet FI)
- DWG files (ConnectSafe_KL2X300P.zip)
- Installation manuals (KATKO_ConnectSafe_KL_range_installation_manual_79_en.pdf)
- Installation manuals (KATKO_ConnectSafe_KL_range_installation_manual_79_fi.pdf)
- Installation manuals (KATKO_ConnectSafe_KL2X300_installation_manual_70_en.pdf)
- Installation manuals (KATKO_ConnectSafe_KL2X300_installation_manual_79_fi.pdf)
