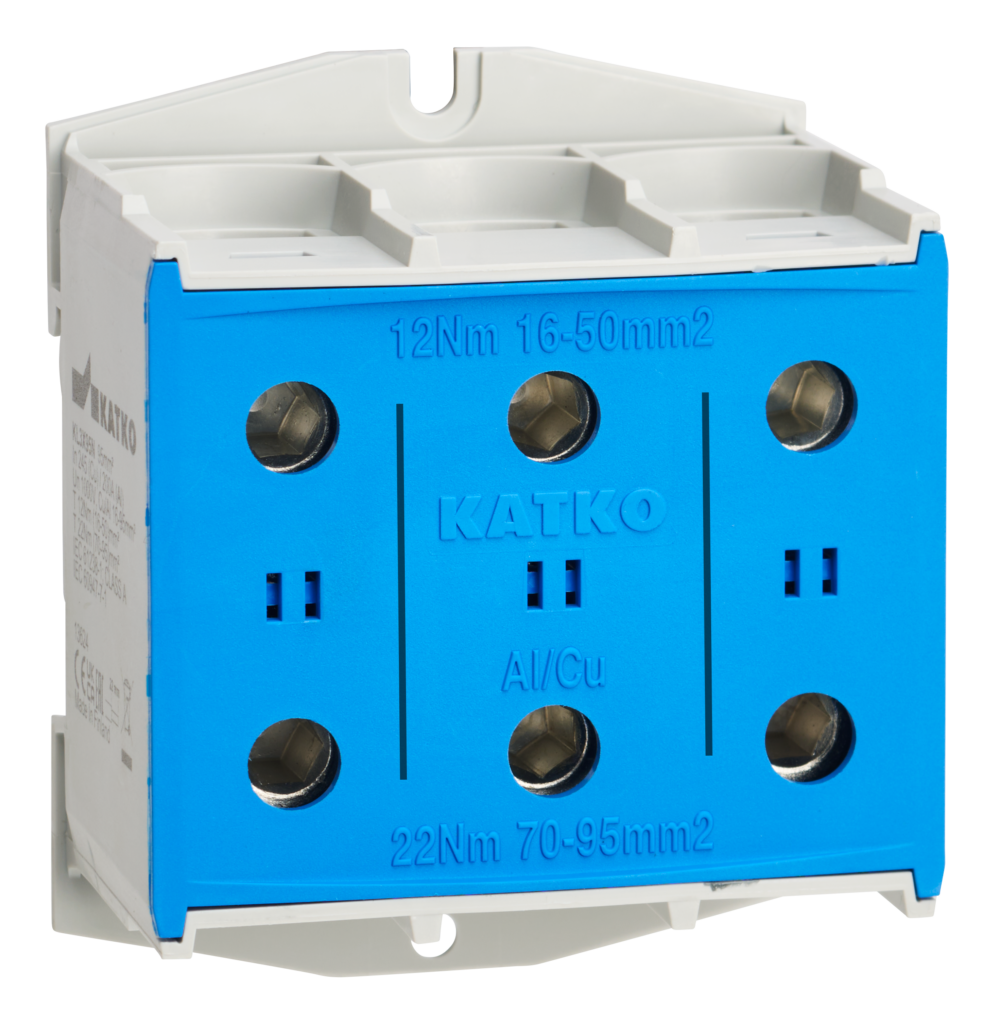

Katko ConnectSafe terminal blocks provide safe and reliable electrical connections for demanding industrial and building applications. Suitable for both copper and aluminum conductors, they are available with screw and DIN-rail mounting options, enabling fast and easy installation. Their robust construction and clear design ensure long service life and trouble-free operation. ConnectSafe terminals meet high industry standards and international approvals, delivering dependable performance for professional use.
Technical data
Depth
49 mm
ETIM Class
EC000897
E-number FI
1942142
GTIN
6419410205686
Height
62.3 mm
In Al
200.0
In Cu
245.0
Key size
Hex 6
Net weight
0.1998 kg
Product type
KL3X1X95N
Short product description
Terminal block KL 3x1xAl/Cu 6-95mm2 Blue
Torque Al/Cu (Nm)
12 (16 - 50 mm²) / 22 (70 - 95 mm²)
Volume
0.2045 l
Width
67 mm
Dimensional drawing
Logistical data
Downloadables
- Dimensional drawings media (6f0f79767a11f4361d79862bdd2ca057e834d51b_ConnectSafe_KL3X1X95_Dim.png)
- Brochures (50486d1855d09e9df9591b2c53a0baf6b1cb2ced_KATKO_ConnectSafe_catalogue_062025_en.pdf)
- Brochures (fbb1e95859d8f104f7b3af702f3163b14f2614e3_KATKO_ConnectSafe_catalogue_082022_fi.pdf)
- Installation manuals (d76d0df9e9d0939dc3ea2fc10abb55624b07eeb7_KATKO_ConnectSafe_KL_range_installation_manual_79_en.pdf)
- Installation manuals (4e099431959ac9ca14dfb59b5c2c701c094aa599_KATKO_ConnectSafe_KL_range_installation_manual_79_fi.pdf)
