KL3X95N

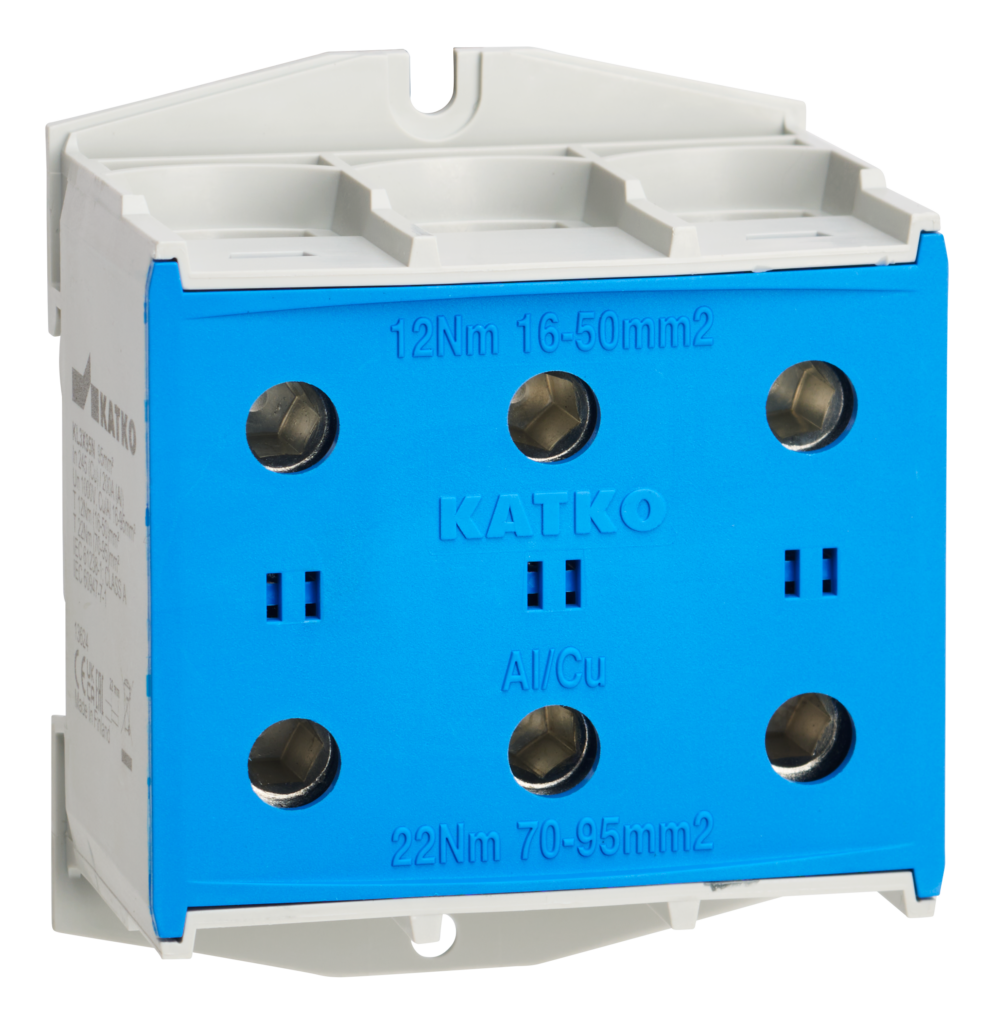

Terminal block KL 3xAl/Cu 6-95mm2 Blue

KL3X95N

Katko ConnectSafe terminal blocks provide safe and reliable electrical connections for demanding industrial and building applications. Suitable for both copper and aluminum conductors, they are available with screw and DIN-rail mounting options, enabling fast and easy installation. Their robust construction and clear design ensure long service life and trouble-free operation. ConnectSafe terminals meet high industry standards and international approvals, delivering dependable performance for professional use.

Numer produktu
20565
E-number FI
1942139
In Cu
490
In Al
400
Cu (mm²)
6-95
Al (mm²)
6-95
Package size 1
6
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Al (mm²)
6-95
Cu (mm²)
6-95
delivery_time
10
Depth
49 mm
ETIM Class
EC000897
E-number FI
1942139
GTIN
6419410205655
Height
62.3 mm
In Al
400.0
In Cu
490.0
Key size
Hex 6
Net weight
0.295 kg
Nominal voltage
1000V AC / 1500V DC
Product type
KL3X95N
Short product description
Terminal block KL 3xAl/Cu 6-95mm2 Blue
Torque Al/Cu (Nm)
12 (16 - 50 mm²) / 22 (70 - 95 mm²)
Volume
0.2045 l
Width
67 mm

Dimensional drawing

Logistical data

Package size 1
6
Package size 1 GTIN code
6419410205655
Package size 1 weight
0.295 kg

Downloadables

Unlock content

We continuously improve our products; specifications, features and appearances may change without prior notice.
