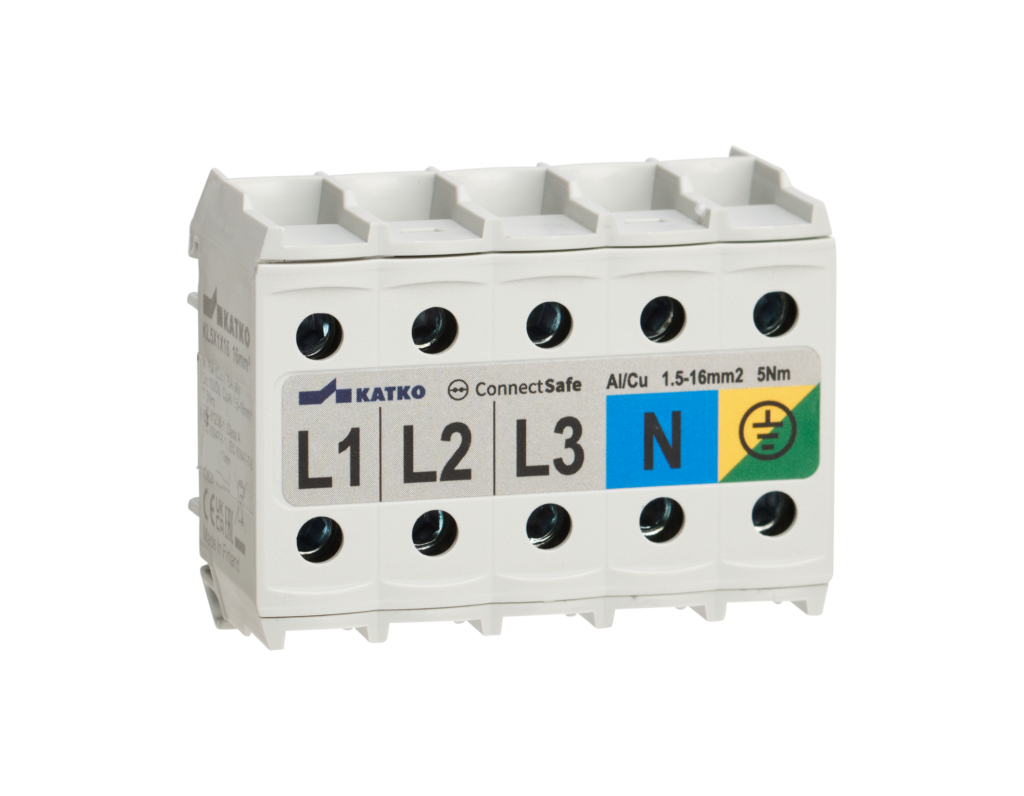

KL5X1X16

Terminal block KL 5x1xAl/Cu 1,5-16mm2 3L, N, PE

KL5X1X16

Katko ConnectSafe terminal blocks provide safe and reliable electrical connections for demanding industrial and building applications. Suitable for both copper and aluminum conductors, they are available with screw and DIN-rail mounting options, enabling fast and easy installation. Their robust construction and clear design ensure long service life and trouble-free operation. ConnectSafe terminals meet high industry standards and international approvals, delivering dependable performance for professional use.

Numer produktu
33428
E-number FI
1942174
In Cu
76
In Al
75
Cu (mm²)
1,5-16
Al (mm²)
1,5-16
Package size 1
10
Download Product Datasheet

Looking for more information about this product?

Our team is here to help.

 Pokaż kompletne dane

Product details and documents

Technical data

Al (mm²)
1,5-16
Cu (mm²)
1,5-16
delivery_time
10
Depth
31.7 mm
ETIM Class
EC000897
E-number FI
1942174
GTIN
6419410334287
Height
61.8 mm
In Al
75.0
In Cu
76.0
Key size
Hex 4
Net weight
0.1 kg
Nominal voltage
1000V AC
Product type
KL5X1X16
Short product description
Terminal block KL 5x1xAl/Cu 1,5-16mm2 3L, N, PE
Torque Al/Cu (Nm)
5
Volume
0.094 l
Width
48 mm

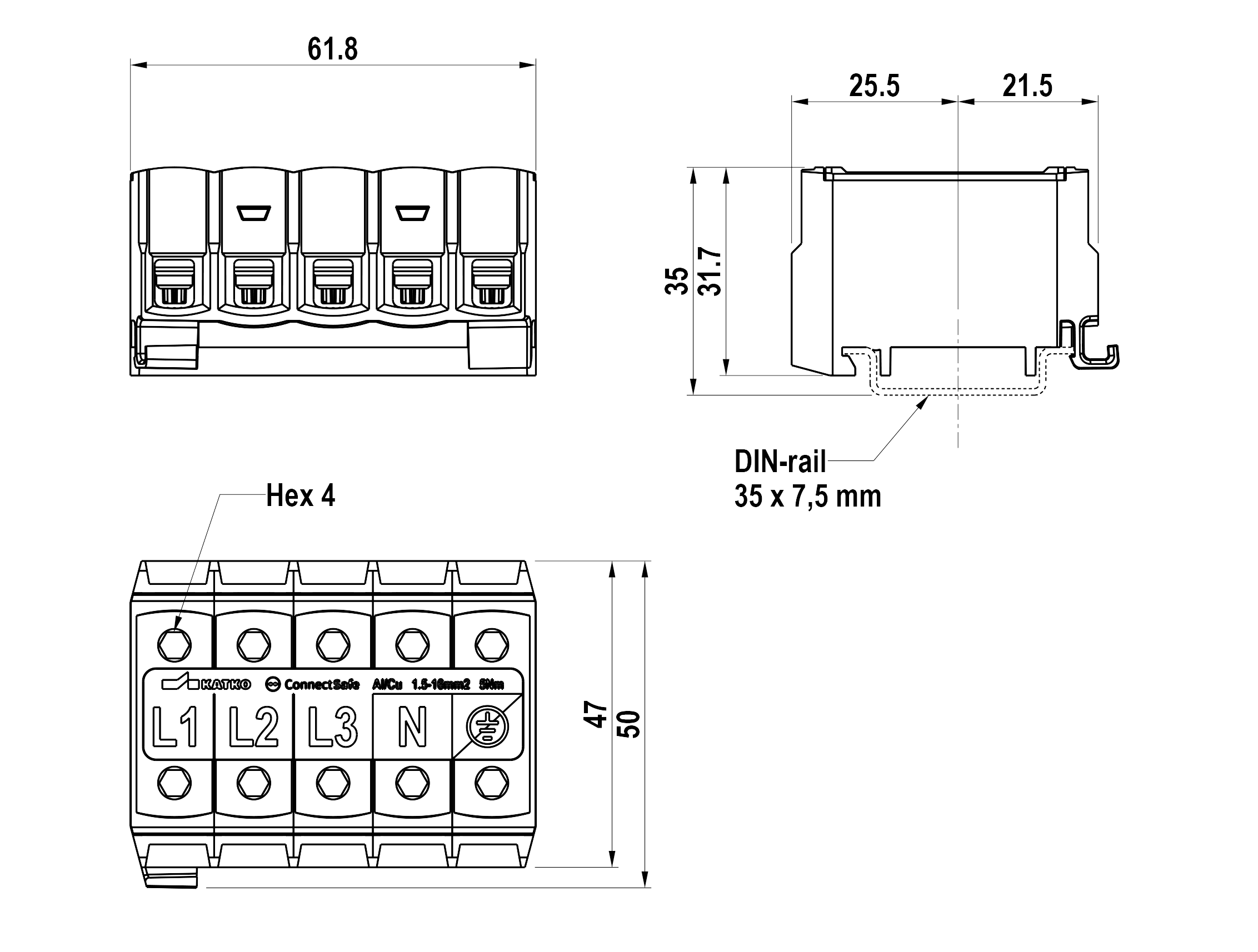

Dimensional drawing

Logistical data

Package size 1
10
Package size 1 GTIN code
6419410334287
Package size 1 weight
0.1 kg

Downloadables

Unlock content

We continuously improve our products; specifications, features and appearances may change without prior notice.
