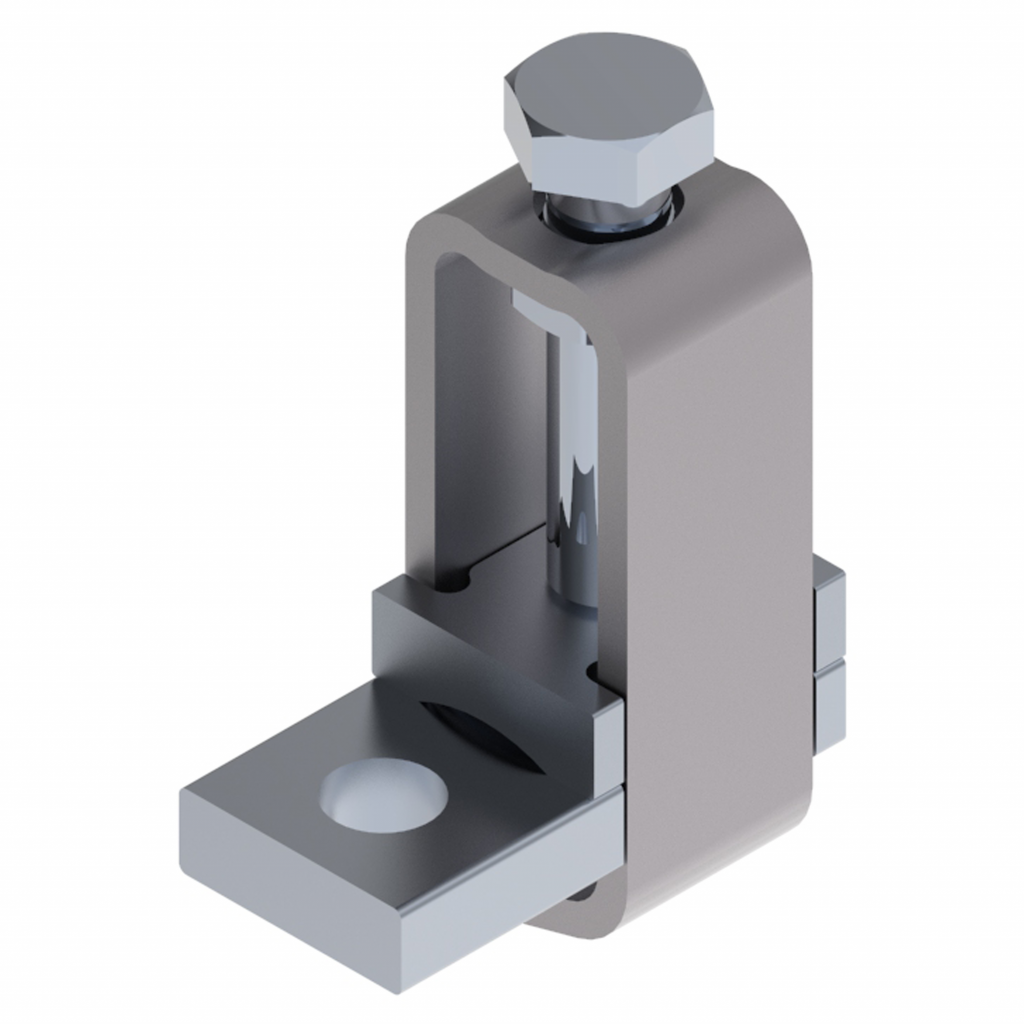

KLH2X240
KLH2X240
Katko ConnectSafe cable connectors are designed for the safe and reliable termination of cables in control and distribution panels. They ensure a durable and dependable electrical connection that withstands everyday use and meets the requirements of professional installations. The compact design saves space, while the wide conductor cross-section range makes the terminals a versatile solution for a variety of applications.
Technical data
Al (mm²)
2 x 95-240
Cu (mm²)
2 x 95-240
Depth
78 mm
ETIM Class
EC000897
E-number FI
1942118
GTIN
6419410358597
Height
60 mm
Key size
Hex 19
Line load wire size
2 x 500 - 3/0
Net weight
0.4795 kg
Product type
KLH2X240
Torque Al/Cu (lb-in)
660
Torque Al/Cu (Nm)
75
UL
UL 486A-486B
Volume
0.1404 l
Width
30 mm

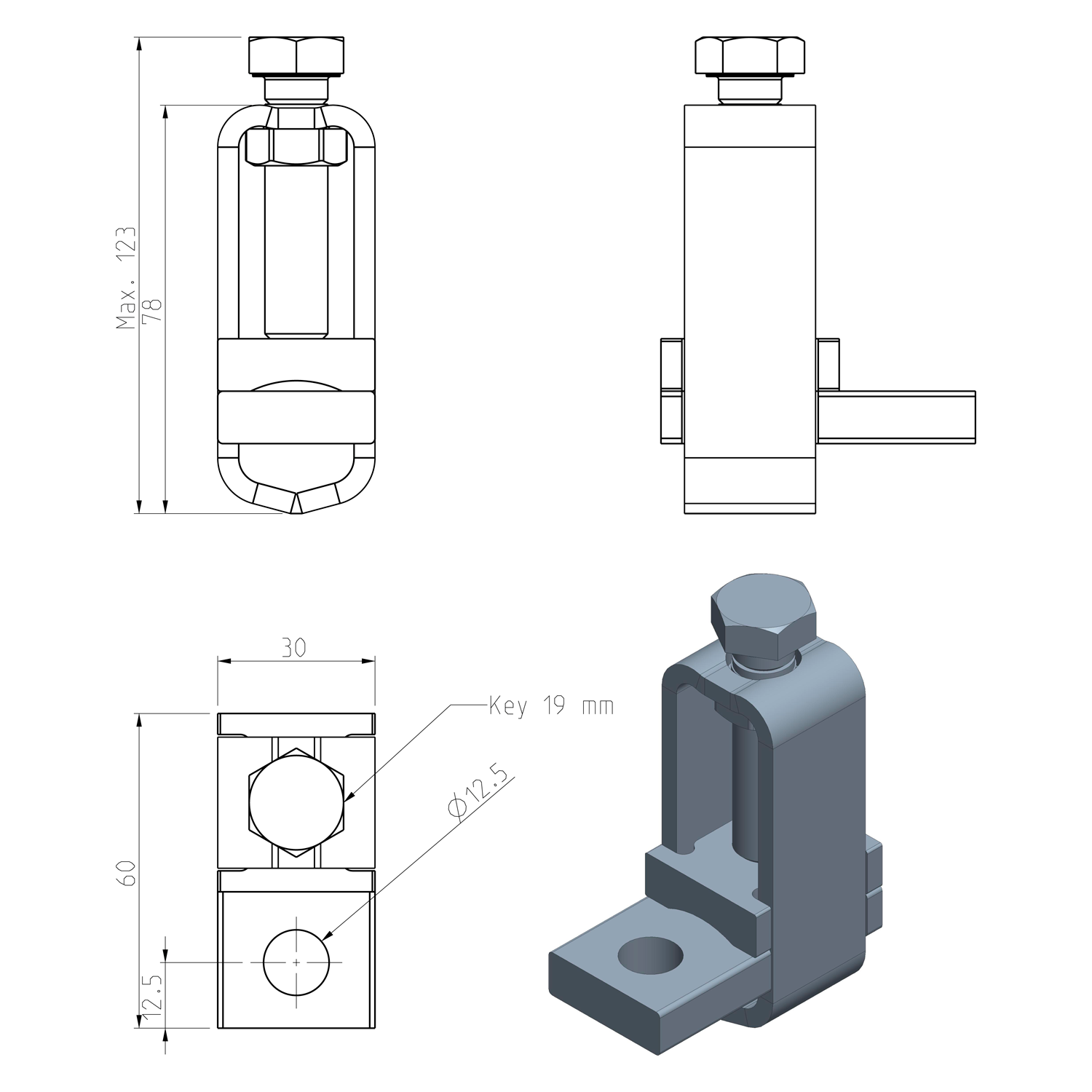

Dimensional drawing
Logistical data
Package size 1
3
Package size 1 GTIN code
6419410358597
Package size 1 weight
0.4795 kg
Downloadables
