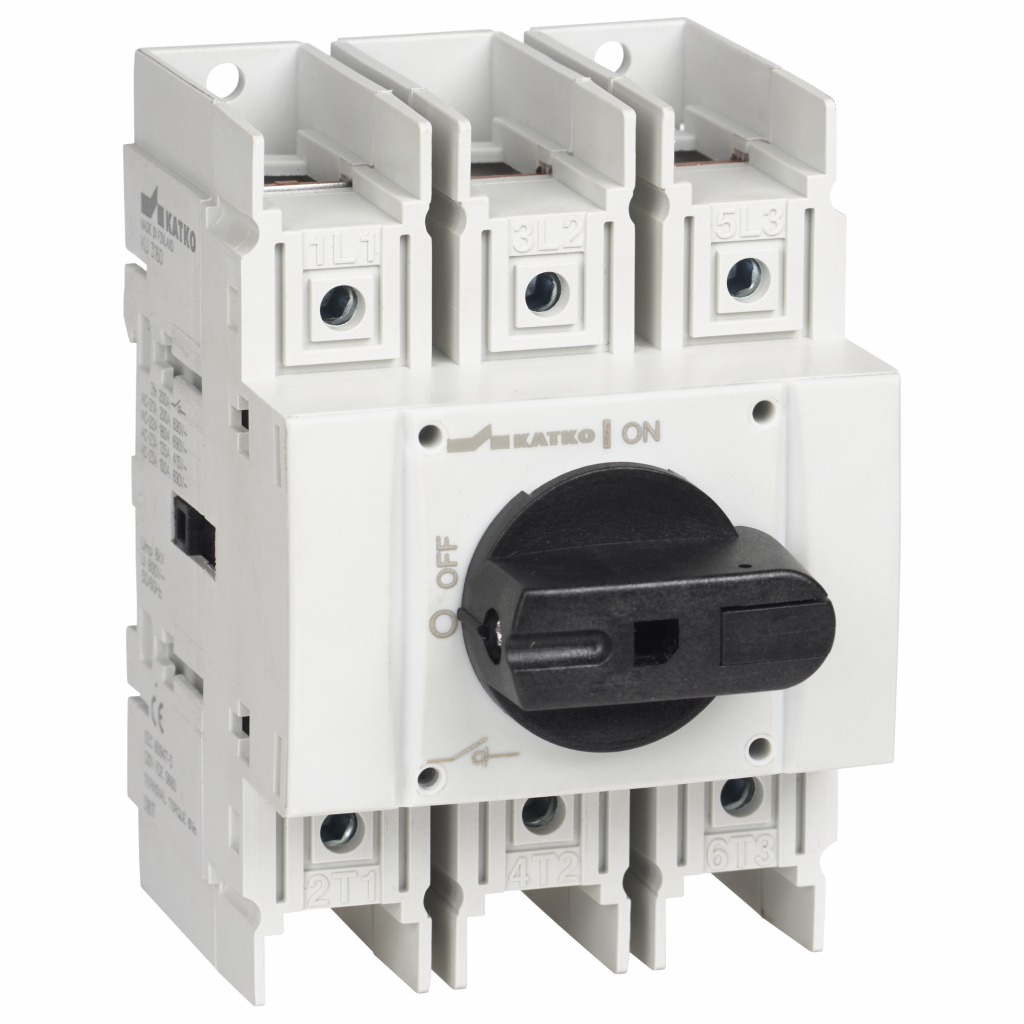

Load break switch 3x100A

KU 3100

Load break switch 3x100A

Katko LoadSafe load break switches 100–160 A are robust solutions for medium-capacity power distribution and motor isolation applications. Featuring a modular design and compatibility with a wide selection of accessories, they support a broad range of installation requirements. Switch technology based on silver contacts ensures safe and durable operation, while compliance with international safety and quality standards guarantees consistent performance in demanding industrial environments.

E-number FI
3600759
GTIN
6419410203484
Rated operational current AC-22A 415V (A)
100
Rated operational current AC-22A 690V (A)
100
Pokaż kompletne dane

Product details and documents

Technical data

Depth
100 mm
ETIM Class
EC000216
E-number FI
3600759
GTIN
6419410203484
Height
87 mm
Long product name
Rotary switch, 3-pole
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Net weight
0.31 kg
Nom. values w/cable size (mm²)
70
Number of poles
3
Product type
KU 3100
Rated breaking cap. ICN AC-23A 415V (A)
800
Rated breaking cap. ICN AC-23A 500V (A)
504
Rated breaking cap. ICN AC-23A 690V (A)
504
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
125
Rated operational current AC-21A 500V (A)
125
Rated operational current AC-21A 690V (A)
125
Rated operational current AC-22A 415V (A)
100
Rated operational current AC-22A 500V (A)
100
Rated operational current AC-22A 690V (A)
100
Rated operational current AC-23A 415V (A)
100
Rated operational current AC-23A 500V (A)
63
Rated operational current AC-23A 690V (A)
63
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
37
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
55
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ith (A)
125
Short product description
Load break switch 3x100A
Switch type
Load Break Switch
Technical name
3x100A 690V AC-22
Terminals bolt size (Cu mm²)
6..70
Volume
0.609 l
Width
70 mm

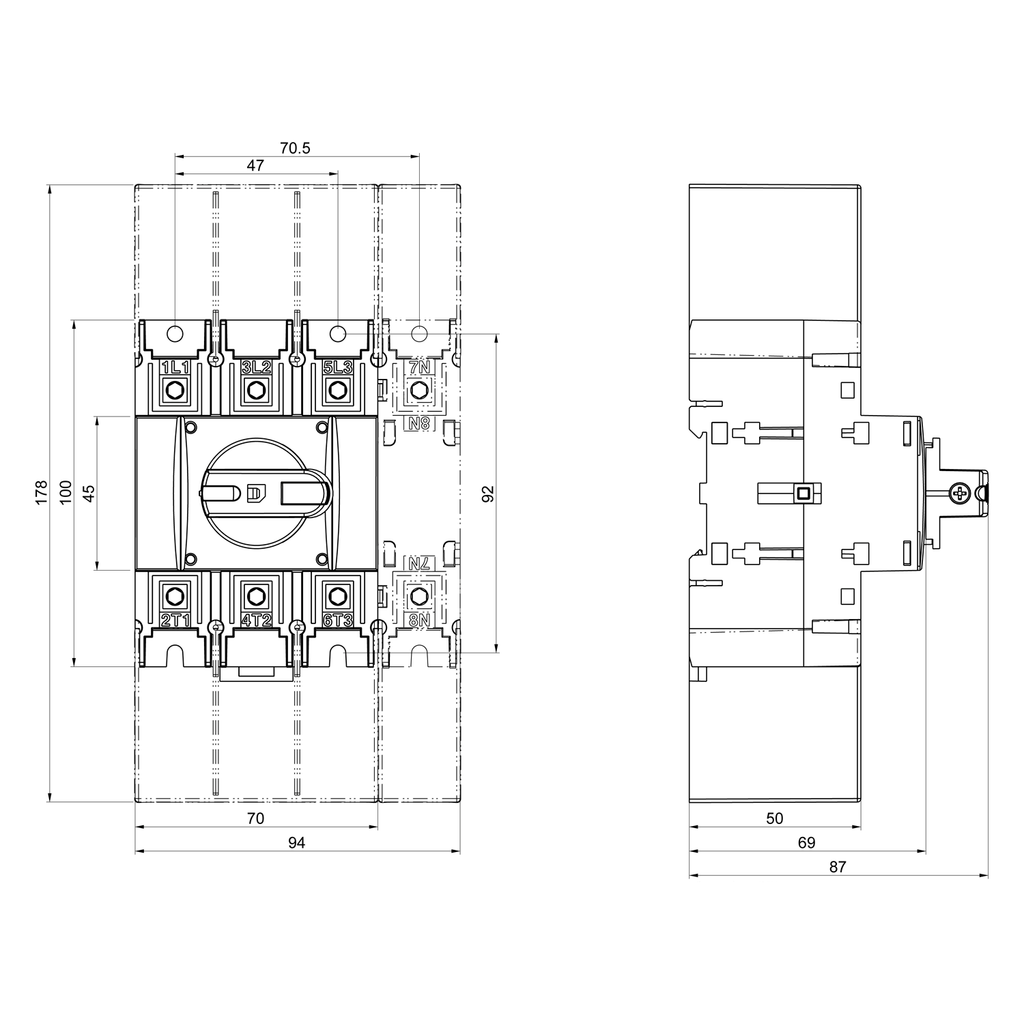

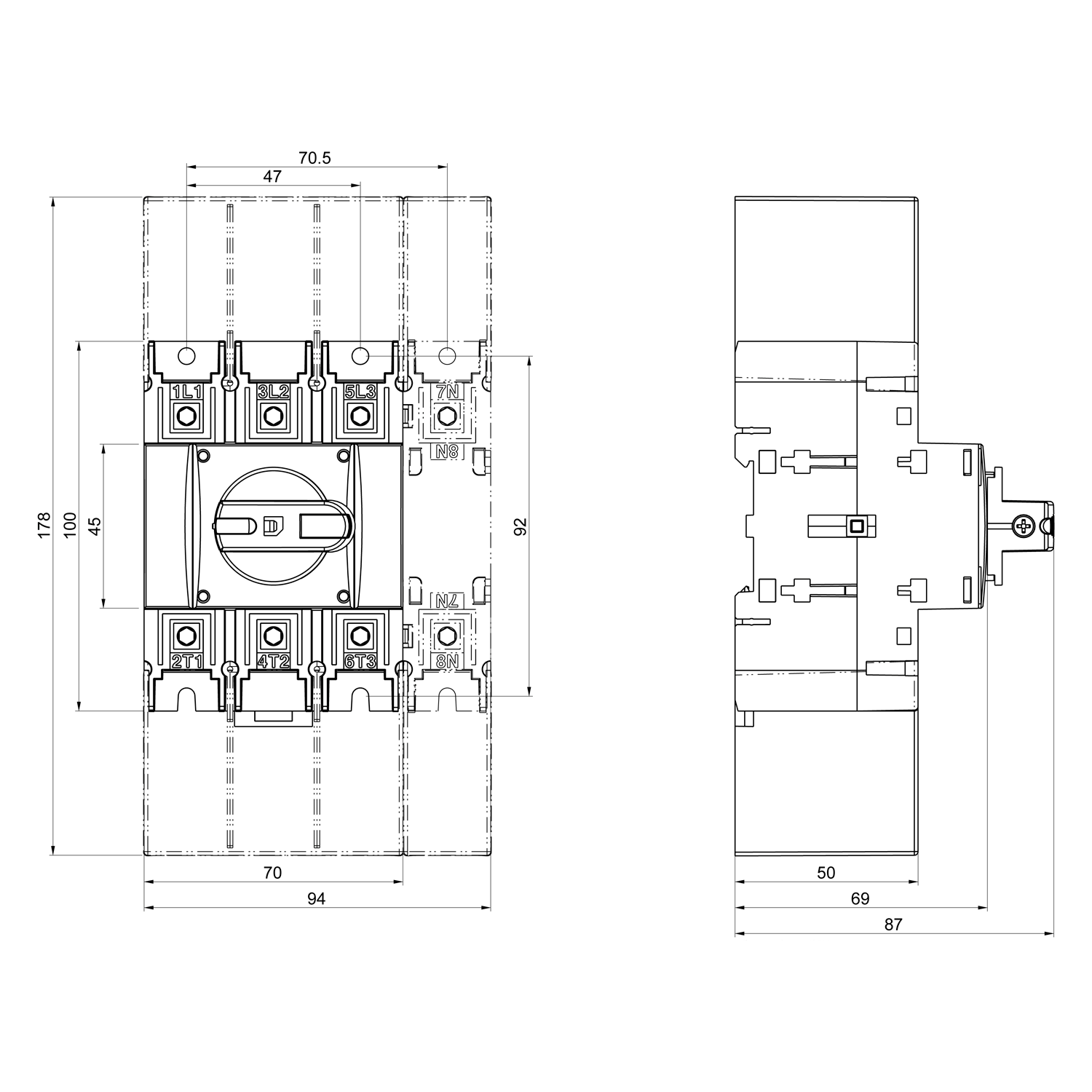

Dimensional drawing
